3. ENGINE
3-
PTO Oil Seal Installation
The installation is the reverse of the removal
procedure.
Pay attention to the following details.
NOTICE Oil seal must be installed with sealing lip
toward the engine.
Push oil seal in place.

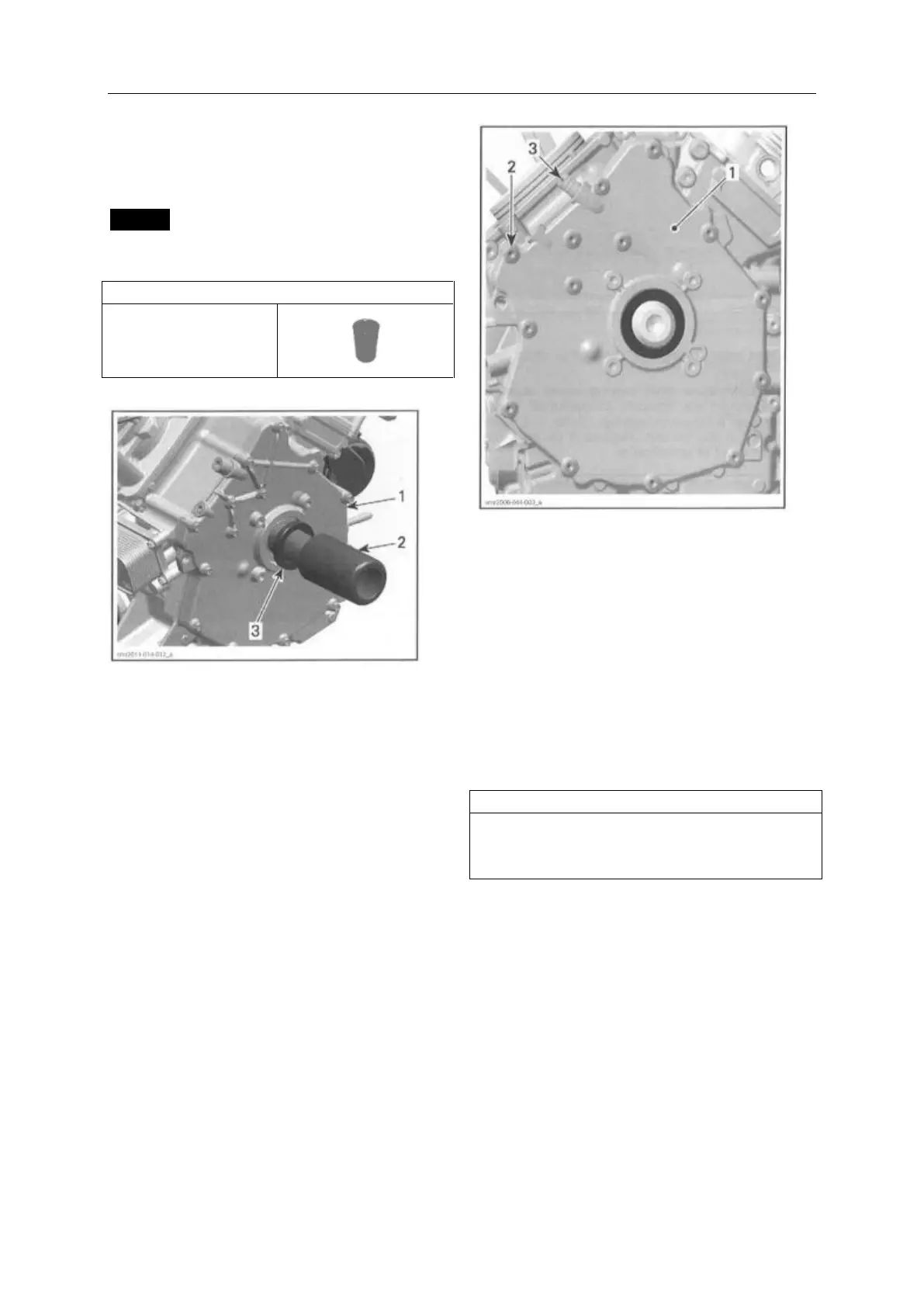

1. PTO cover
2. Oil seal installer
3. Oil seal
PTO COVER
PTO Cover Removal
Refer to CONTINUOUSLY VARLABLE
TRAINSMISSION (CVT) subsection to remove
the following parts:
- CVT cover
- Drive pulley
- Driven pulley
- CVT air guide.
Disconnect vent hose.
Remove PT0 cover screws and pul1 PTO cover.
1. PTO cover
2. PTO cover screws
3. Vent hose nipple
PT0 Cover Inspection
Check the PT0 cover for cracks or other damage.
Replace PT0 cover if damaged.
Clean oil breather bore in PT0 cover from
contaminations with part cleaner then use
pressurized air to dry it.
Always wear skin and eye protection.
Chemicals can cause skin rash, skin
burns and severe eye injury.
Check surface of sealing sleeve for wear or other
damages. Replace PT0 cover if damaged.
