3. ENGINE
3-
10N·m±1N·m
(89lbf·in 士 9lbf·in)
25N·m±3N·m
(18lbf·ft±2 lbf·ft)

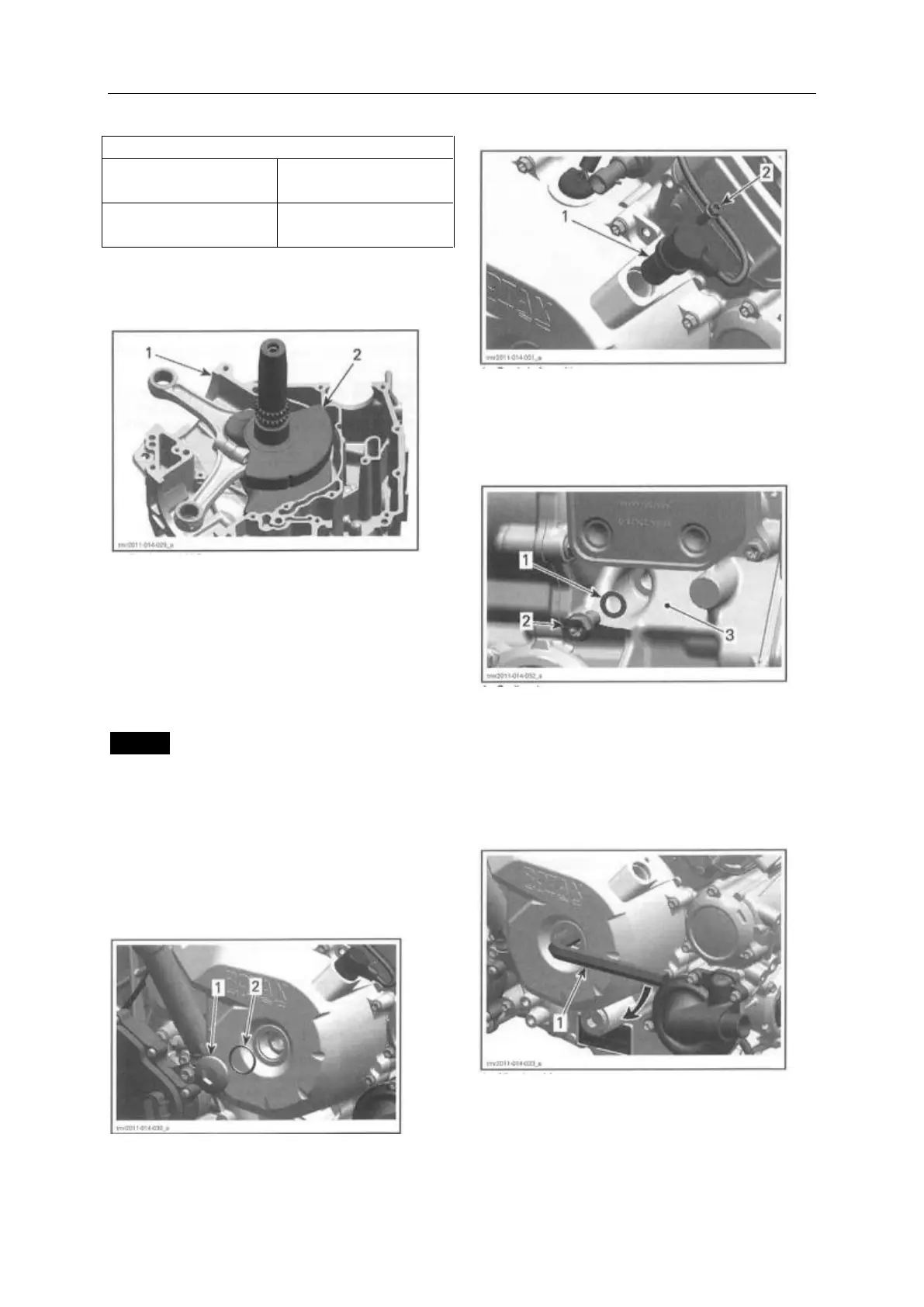

CRANK SHAFT
1. Crankcase MAG
2. Crankshaft
Crankshaft Locking Procedure
NOTE: When crankshaft is locked, the rear piston
no. 2 is at TDC. Crankshaft can not be locked at
piston no.1 TDC.
NOTICE To see if the rear piston no. 2 is at TDC
ignition refer to CRANKSHAFT TIMING GEAR
in the TIMING CHAIN subsection.
Remove:
1. Spark plug cables and spark plugs of both
cylinders.
2. Plug screw and 0-ring of magneto cover.
1. Plug screw
2. O-ring
3. Crankshaft position sensor.
1. Crankshaft pisition sensor
2. Screw
4. Plug screw and discard sealing ring
1. Sealing ring
2. Plug screw
3. Crankcase PTO side, front side
Use a14 mm Allen key to turn crankshaft until
piston no. 2 is at TDC.
1. Allen key14 mm
When rear piston is at TDC marks on magneto
flywheel "2" and on the magneto cover are
aligned .
