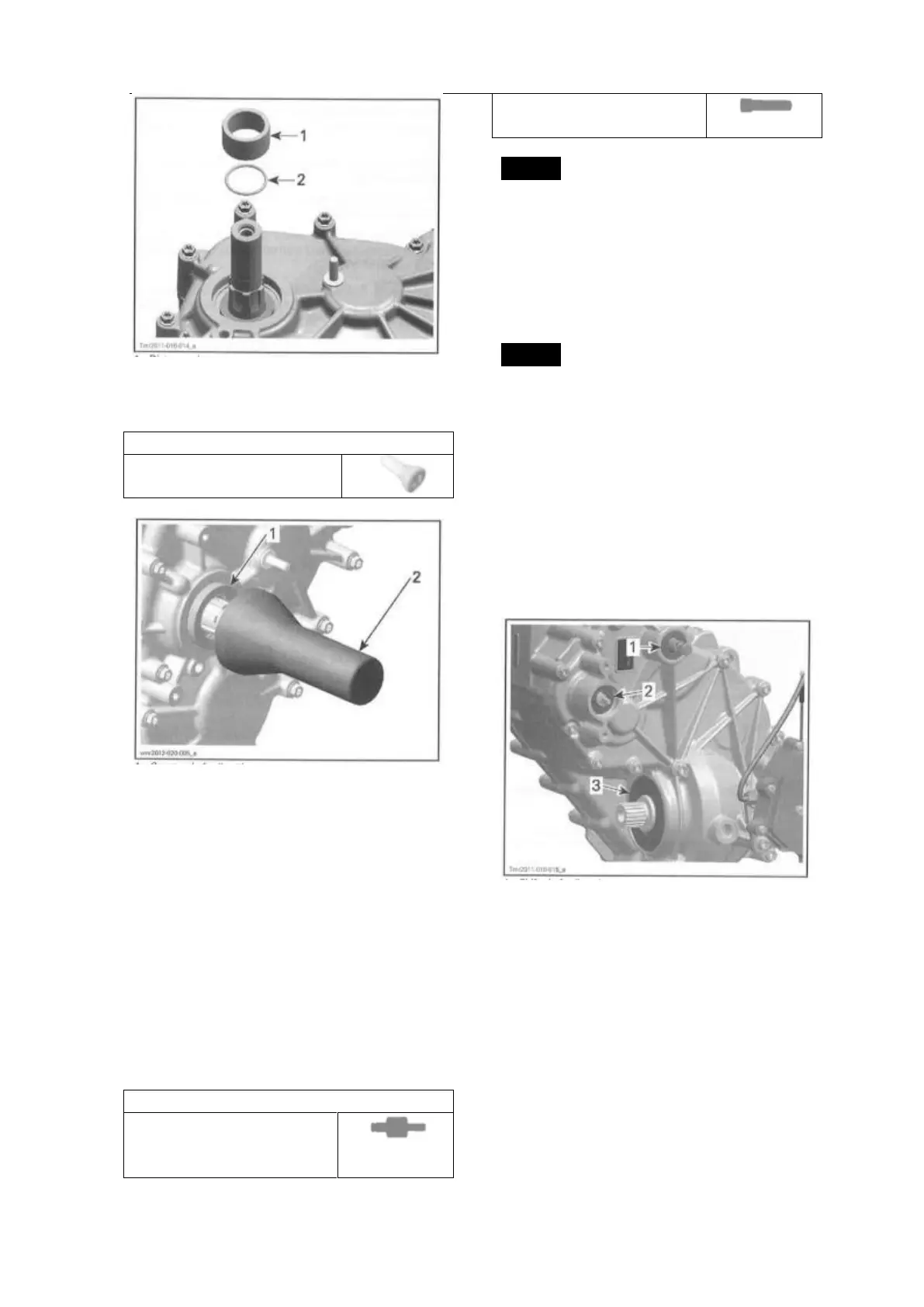

ODES UTV Desertcross 1000cc-3 - COUNTERSHAFT OIL SEAL

3. ENGINE
3-
95
1. Distance sleeve
2. O-ring
Install countershaft oil seal
REQUIRED TOOL
COUNTERSHAFT OIL
SEAL PISHER
1. Countershaft oil seal
2. Oil seal installer
Shift Shaft Oil Seal
To replace the shift shaft oil seal, remove:
-RH lateral console panel and fue1 tank cowl,
refer to BODY subsection.
-Shift plate from shift shaft.
The shift shaft oil seal can be removed without
removing the gearbox from the vehicle.
Use a suitable tube with the proper diameter to
install the oil seal.
If gearbox housing is apart, use following tools
for shift shaft oil seal installation.
REQUIRED TOOL
OIL SEAL INSTALLER
(GEARBOX) (P/N529
035 758)
HANDLE (P/N420877
650)
NOTICE Oil seal must be installed with sealing
lip toward gearbox.
Shift Drum Shaft Oil Seal
To replace the shift drum shaft oil seal, remove
the GBPS (GEARBOX POSITION SENSIR).
See procedure in this subsection.
Use a suitable tube with the proper diameter to
install the oil seal.
NOTICE Oil seal must be installed with sealing
lip toward gearbox.
Output Shaft Oil Seal
To replace the output shaft oil seal, proceed as
follows
Remove propeller shaft screw from gearbox
out_ put shaft.
Remove rear final drive bolts.
Move the rear final drive rearward to dis1odge
the propeller shaft from the gearbox output
shaft.
1. Shift shaft oil seal
2. Shift drum shaft oil seal
3. Output shaft oil seal
Punch a sharp screwdriver through oil seal for
removal.
NOTE: Position screwdriver only in marked
areas to avoid damaging the ball bearing
underneath oil seal during removal.
