ODES UTV Desertcross 1000cc-3 - Gear Box

3. ENGINE
3-
96

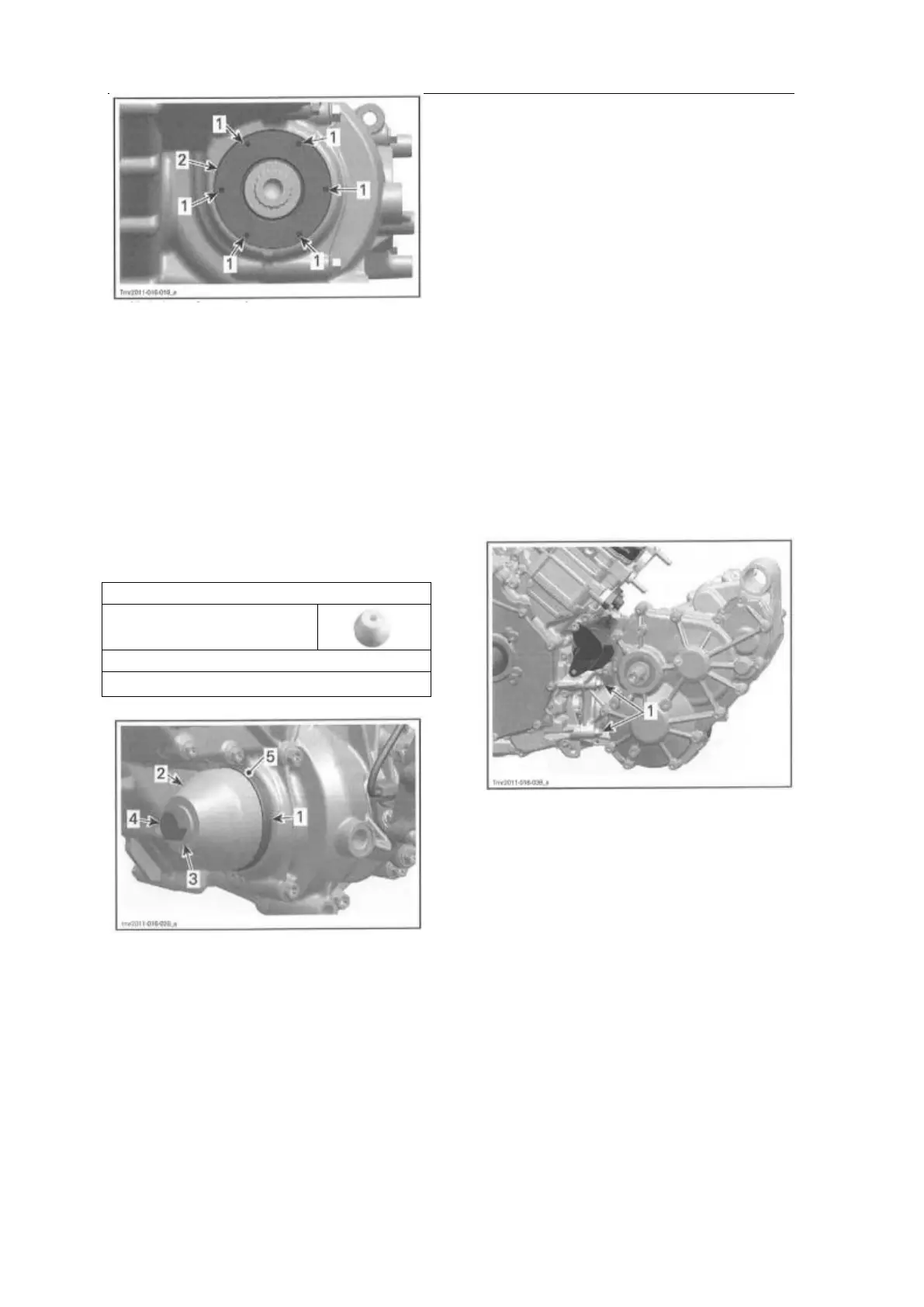

1. Marked areas for removal
2. Output shaft oil seal
Before beginning the installation ensure
gearbox is set to PARK position.
Apply SUPER LUBE GREASE P/N293 550
030) on sealing lips.
Apply engine oil on outer diameter of oil seal
to avoid damaging it during installation.
Place oil seal on output shaft and install it using
the following tools.
REQUIRED TOOL
OIL SEAL INSTALLER
(P/N529 036 204)
Flat washer (P/N250 200 102)
M12×1.25×35 hexagonal screw
1. Output shaft oil seal
2. Oil seal installer
3. Flat washer (P/N250 200 102)
4. M12×1.25×35 hexagonal screw
5. Apply engine oil on outer diameter of oil seal
GEAR BOX
Gearbox Removal
Remove engine from vehicle. Refer to
ENGINE REMOVAL AND INSTALLATUON
for the procedure.
Refer to COUNTINOUSLY VARIABLE
TRANSMISSION (CVT) subsection to remove
following parts:
- CVT cover
- Drive and driven pulleys
- CVT air guide.
Drain gearbox. Refer to GEARBOX OIL
REPLACEMENT in PERIODIC
MAINTEANCE PROCDURES subsection.
Remove ACTIATOR see procedure in this
subsection.
Unscrew the four (4) nuts that attach the
gearbox to the engine.
LH SIDE OF ENGINE
1. Nut M8
