3. ENGINE
3-

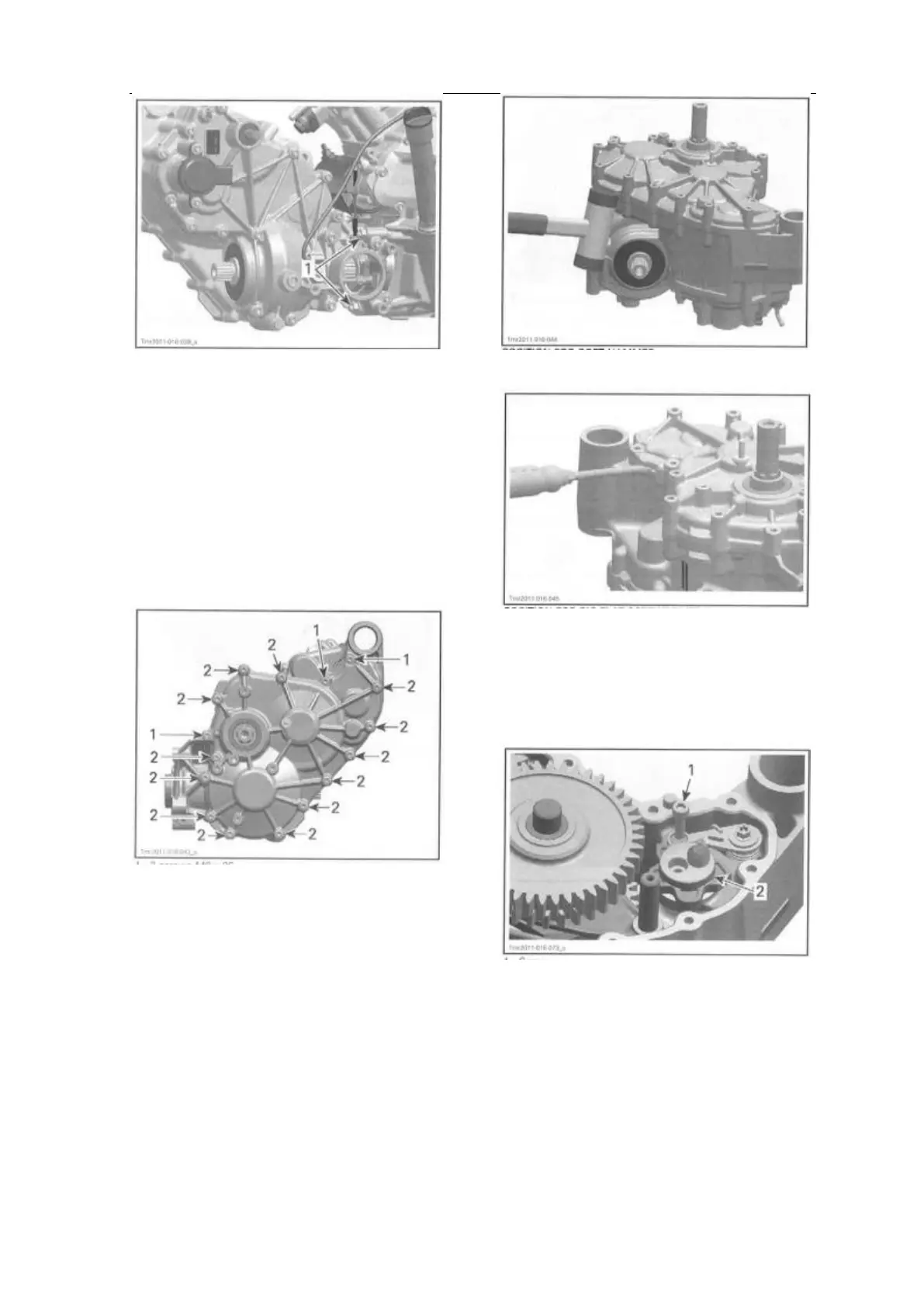

RH SIDE OF ENGINE
1. Nut M8
Pull gearbox to separate it from engine.
Gearbox Disassembly
NOTE: During gearbox disassembly, inspect
the condition of each part closely.
Gearbox Left Cover
Set gearbox to NEUTRAL position.
Unscrew all bolts retaining the gearbox left
cover.
1. 3 screws M6x35
2. 13 screws M6x55
Place the center housing on a wood stand, left
cover pointing upwards.
Using a big flat screwdriver and a soft hammer
to lift the left cover .
POSITION FOR SOFT HAMMER
POSITION FOR BIG FLAT SCREWDRIVER
Index Lever and Index Washer
Set gearbox to NEUTRAL position.
Remove screw retaining the index washer to
the shift drum.
1. Screw
2. Index washer
