3. ENGINE
3-

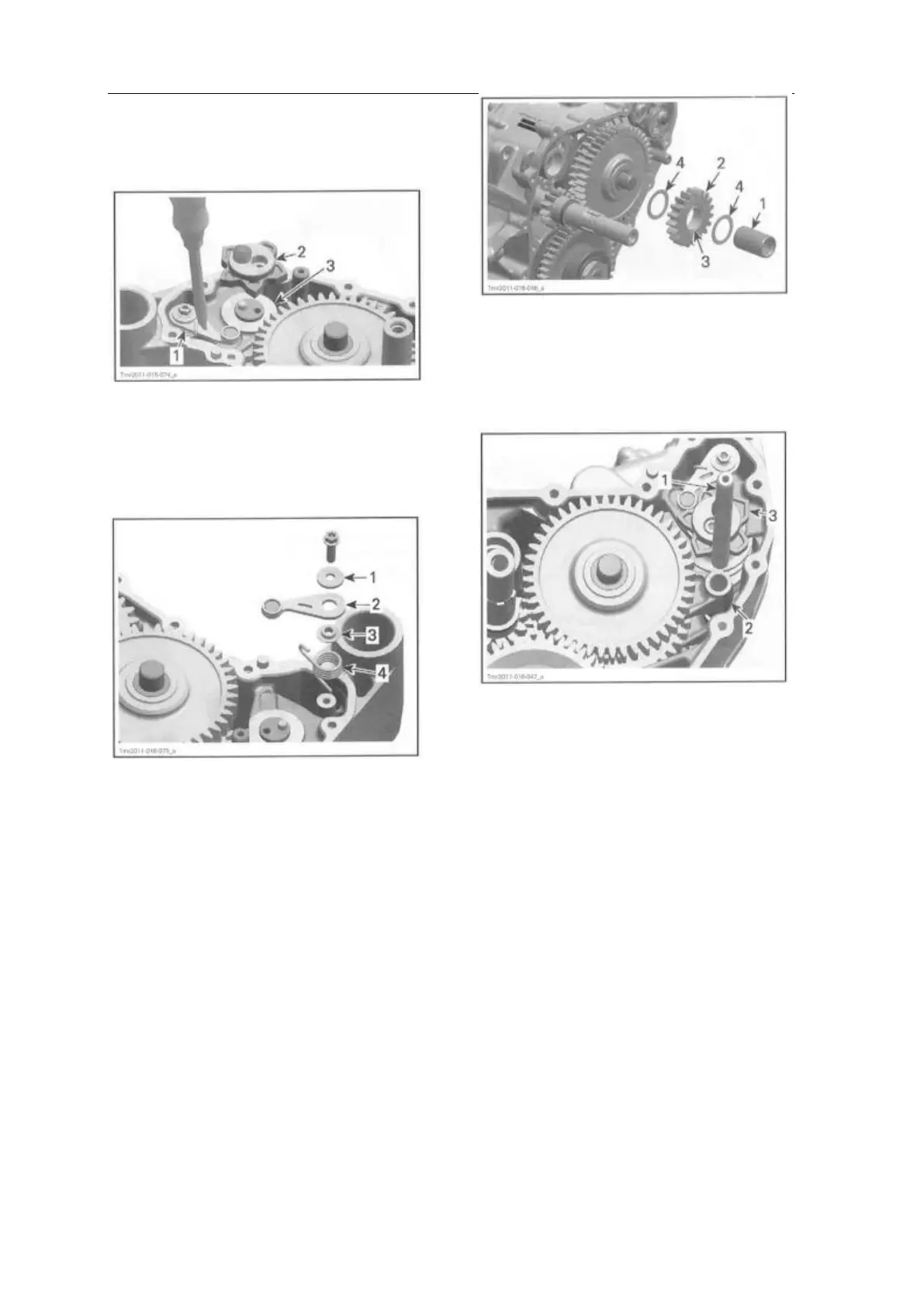

Insert a flat screwdriver in the slot of index
lever.
Turn screwdriver clockwise and remove index
washer.
1. Index lever
2. Index washer
3. Shaft drum
Remove the index lever with washer, step ring
and spring.
1. Washer
2. Index lever
3. Step ring
4. Index spring
Main Shaft and Shift Forks
Remove bearing pin, reverse intermediate gear
and thrust washers.
NOTE: Take care not to lose lower thrust
washer during removal.
1. Bearing pin
2. Reverse intermediate gear
3. Needle bearing
4. Thrust washers
Remove shift fork shaft.
Disengage shift forks from shift drum
1. Shaft fork shaft
2. Shaft fork
3. Shaft drum
Remove main shaft assembly with shift fork.
