3. ENGINE
3-
99

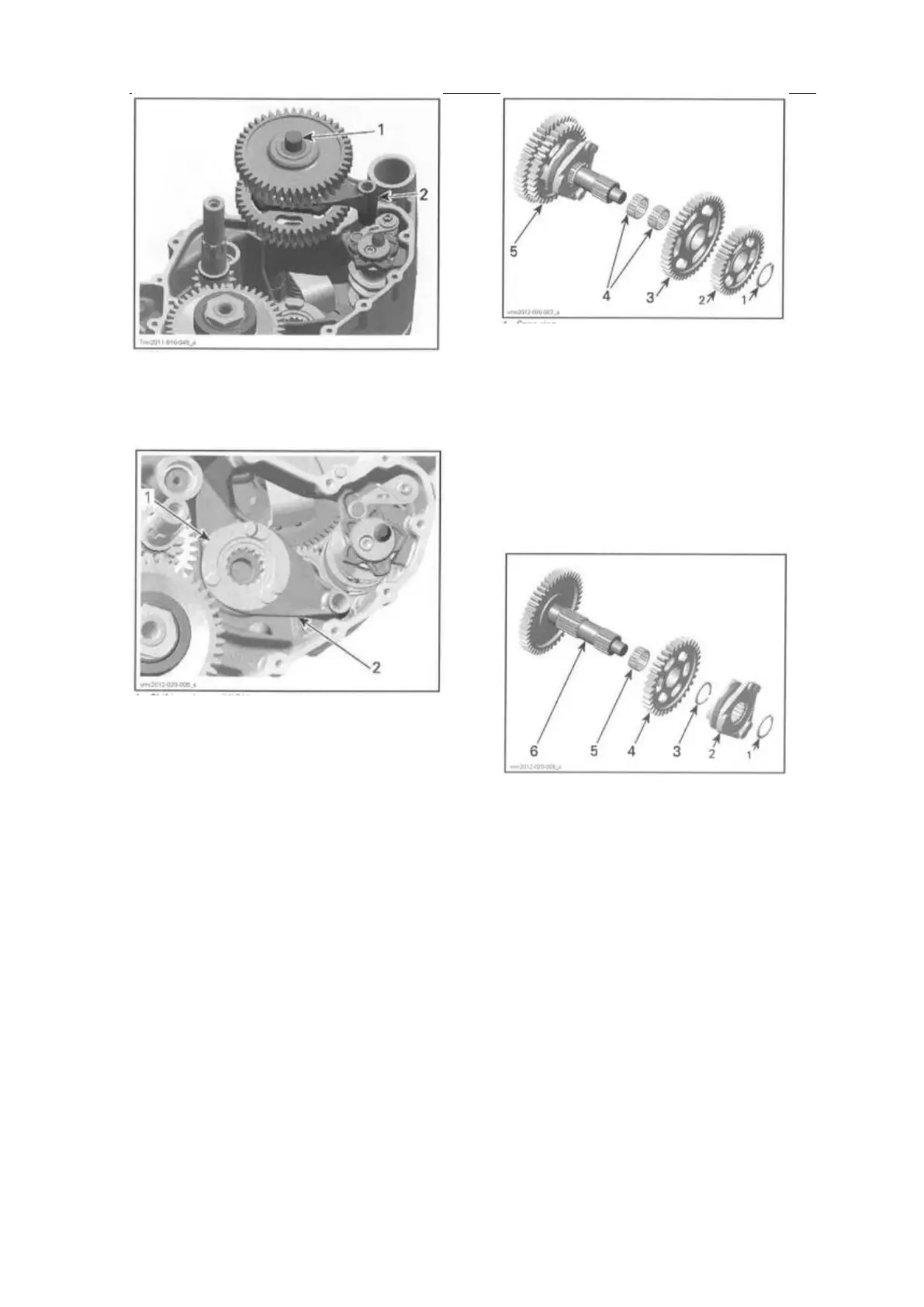

1. Main shaft assembly
2. Shift fork
Remove shifting sleeve (HIGH range gear) and
shift fork.
1. Shifting sleeve (HIGH range gear)
2. Shift fork
When required, remove from main shaft
assembly:
- Snap ring (discard)
- HIGH range gear
- LOW range gear
- Needle bearings.
1. Snap ring
2. Free pinion (HIGH range gear)
3. Free pinion (LOW range gear)
4. Needle bearings
5. Main shaft assembly
Remove from main shaft assembly:
- Snap ring (discard)
- Shifting sleeve (LOW/REVERSE range gear)
- Snap ring (discard)
- REVERSE range gear
- Needle bearing.
1. Snap ring
2. Shifting sleeve (LOW/REVERSE range
gear)
3. Snap ring
4. Free pinion (REVERSE range gear)
5. Needle bearing
6. Main shaft assembly
Gearbox Right Cover
Remove ACTUATOR and GBPS (GEARBOX
POSITION SENSOR) see procedures in this
subsection.
Unscrew all bolts retaining the gearbox right
cover.
