ODES UTV Desertcross 1000cc-3 - Shift Shaft and Shift Drum

3. ENGINE
3-
100

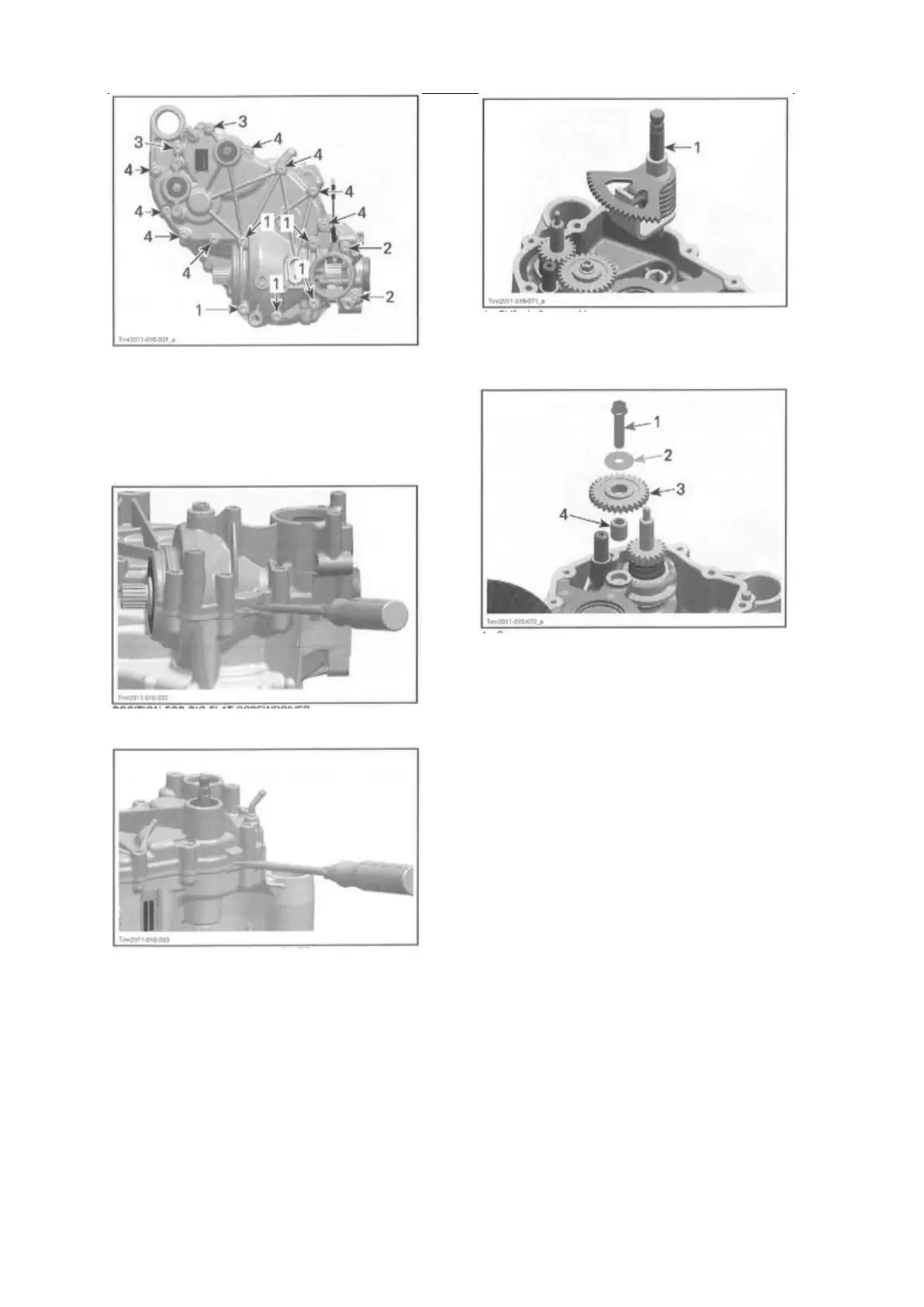

1. 5 Screws M8x55
2. 2 Screws M6x85
3. 2 Screws M6x55
4. 8 Screws M6x35
To remove cover, use2 big screwdrivers
POSITION FOR BIG FLAT SCREWDRIVER
POSITION FOR BIG FLAT SCREWDRIVER
Shift Shaft and Shift Drum
Withdraw shift shaft assembly.
1. Shift shaft assembly
Remove screw retaining the shifting
intermediate gear.
1. Screw
2. Washer
3. Intermediate gear
4. Dowel pin
Remove shift fork shaft.
Disengage shift forks from shift drum.
