ODES UTV Desertcross 1000cc-3 - Output Shaft and 4 × 4 Coupling Mechanism

3. ENGINE
3-
101

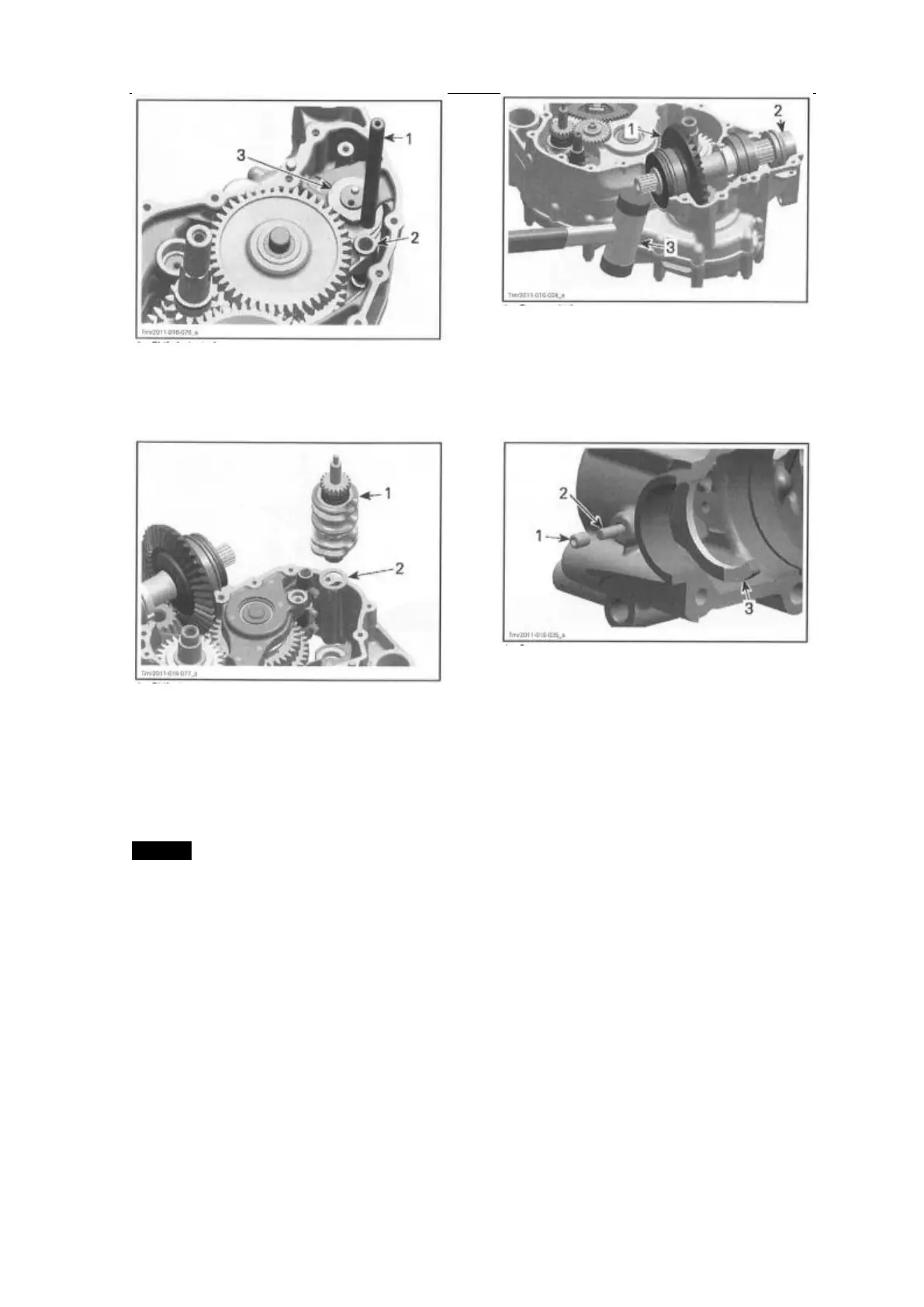

1. Shift fork shaft
2. Shift fork
3. Shift drum
Remove shift drum and thrust washer.
1. Shift drum
2. Thrust washer
Output Shaft and4 × 4 Coupling
Mechanism
Remove output shaft from center housing and
withdraw4X4 coupling sleeve.
NOTICE Use a soft hammer to remove output
shaft.
1. Output shaft
2. 4×4 coupling sleeve
3. Soft hammer
Remove set screw, coupling fork shaft and
coupling fork from right cover.
1. Set screw
2. Coupling fork shaft
3. Coupling fork
Countershaft
Use a soft hammer to push out countershaft
from gearbox CVT side.
Remove distance sleeve and 0-ring.
