ODES UTV Desertcross 1000cc-3 - BEARING PIN OUTER DIAMETER

3. ENGINE
3-
104

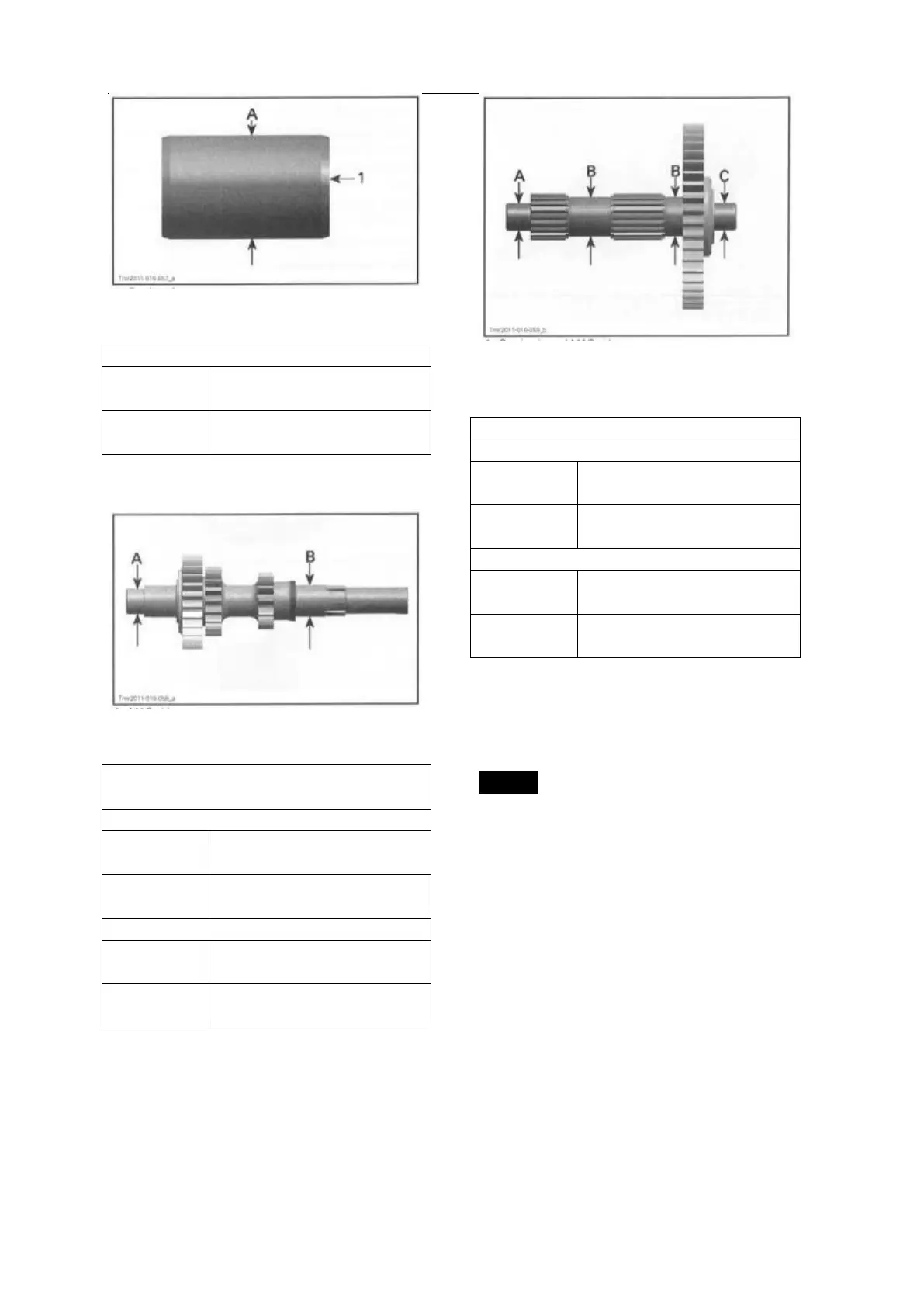

1. Bearing pin
A. Outer diameter
BEARING PIN OUTER DIAMETER
NEW
24.987mm to25.000mm
(.984in to.984in)
SERVICE
LIMIT
24.977 mm(.9833 in)
Check countershaft bearing journals for wear.
A. MAG side
B. Bearing journal CVT side
COUNTERSHAFT BEARING
JOURNALS
MAG SIDE
NEW
19.977 mm to19.990 mm
(.786in to.787in)
SERVICE
LIMIT
19.973 mm(.786in)
CVT SIDE
NEW
24.977mm to24.990mm
(.983in to.984in)
SERVICE
LIMIT
24.970 mm(.983 in)
Check main shaft for wear
A. Bearing journal MAG side
B. Free pinion bearing
C .Bearing journal CVT side
MAIN SHAFT
FREE PINION BEARING
NEW
24.987mm to25.000 mm
(.984in to.984in)
SERVICE
LIMIT
24.984 mm(.984 in)
BEARING JOURNAL CVT/MAG SIDE
NEW
16.980mm to16.991 mm
(.669in to.669in)
SERVICE
LIMIT
16.976mm(.668in)
Shift Shaft
Check shift shaft for worn splines and gears.
Check shift shaft spring for damages.
Shift Drum
NOTICE Do not disassemble shift drum.
Check if shifting gates move easily on shift
drum splines and check condition of springs.
Check shift drum tracks for scouring or heavy
wear, like rounded engagement slots.
