8. BRAKES SYSTEM
9-4
NOTION：
1. Exhaust Valve Locking Torque 6N.M.
2. Four calipers operation, priority after the wheel operation, in accordance with the
principle from far and near.
3. Brake system oil drainage at the same time, pay attention to supplement the oil
storage pump, to ensure that there is visible oil.
4.Cover the dust-proof leather cap and the oil storage cap and the sealing gasket.

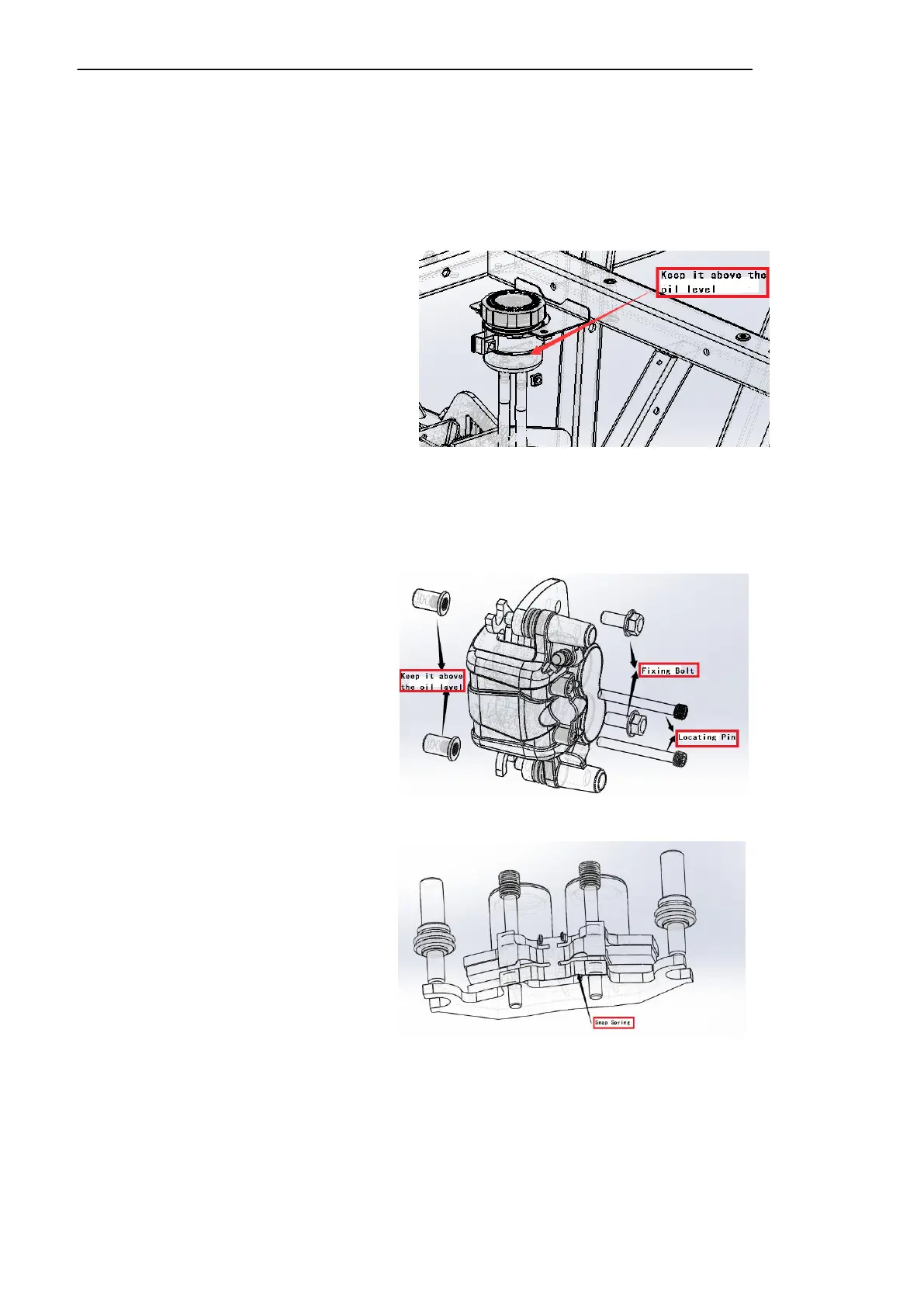

BRAKE PADS REPLACMENT
1. Take off the tire.
2. The fixing shaft pin of the brake Caliper
fixing bolt and the disc brake shoe is
removed respectively.
3. Remove the disc brake shoes.
4. Make sure the shoe spring is in place
and install the new shoe.
5. Dowel Pin by pushing the pad on the Pad Spring to align the pad groove and Caliper
Body.
(1). Fastening Torque of Brake Shoe axle PIN 18N.M.
(2). The fastening Torque of the fastening bolt of the brake caliper is 80N.M.
(3). Do not operate the brake pedal during or after removal of the brake pads.
