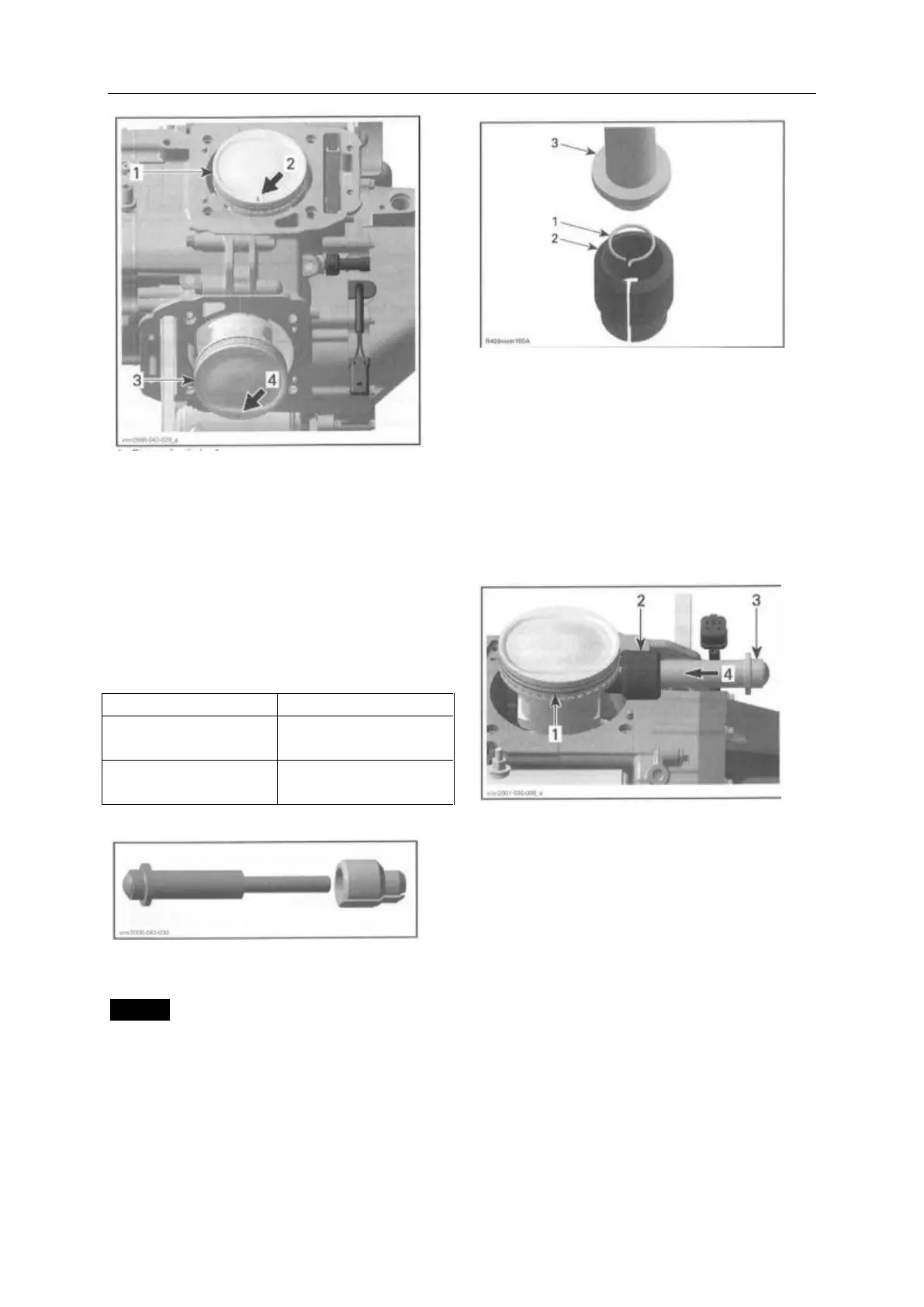

1. Piston of cylinder 1
2. Mark on piston must show to intake side of
cylinder 1
3. Piston of cylinder 2
4. Mark on piston must show to exhaust side of
cylinder 2
Use the piston appropriate circlip installer to
assemble the NEW piston circlip as per following
procedure:
TYPICAL
NOTICE Always replace disassembled piston
circlip(s) by NEW ones. Place a rag on cylinder
base to avoid dropping the circlip inside the
engine.
Place circlip in sleeve as per following illustration.
1. Circlip
2. Sleeve
3. Assembly jig from piston clip installer
Push taper side of assembly jig until circlip reaches
middle of sleeve.
Align sleeve with piston pin axis and push
assembly jig until circlip engages in piston.
1. Hold piston while pushing circlip in place
2. Sleeve
3. Assembly jig
4. Direction to push circlip
NOTE: Take care that the hook of the piston circlip
is positioned properly.
