OPERATING INSTRUCTIONS
GENERAL NOTES
Controller beeper only sounds for valid keypad presses.
Keypad LED lights when game time is running.
To set a numeric value:
• Press the desired function key (i.e. HOME SCORE).
• Enter the value on the numeric keypad.
• Press ENTER button.
• In regular game mode:
o A cursor will appear on the value.
o If the cursor is on a value and there are no key presses for 10 seconds, the value will go back to
pre-cursor state and the cursor will go off.
• Many game values have easy increment/decrement. To increment a value, press the function key twice.
The first key press will put the cursor on the value; the second key press will increment/decrement the
value by 1 and turn the cursor off. The only value that will be decremented is TOL, any other values will
all be incremented.
• Every value has a minimum and maximum. If a value lower than the minimum is entered, the value will
be set to the minimum. If a value higher than the maximum is entered, the value will be set to the
maximum.
To set a non-numeric setting value:
• Press CLEAR to toggle through available values.
• Press ENTER to accept.
• Often, most of these values have on-screen instructions.
POWER OFF/ON
The controller is not equipped with a Power Switch.
To turn controller completely off, unplug power cord.

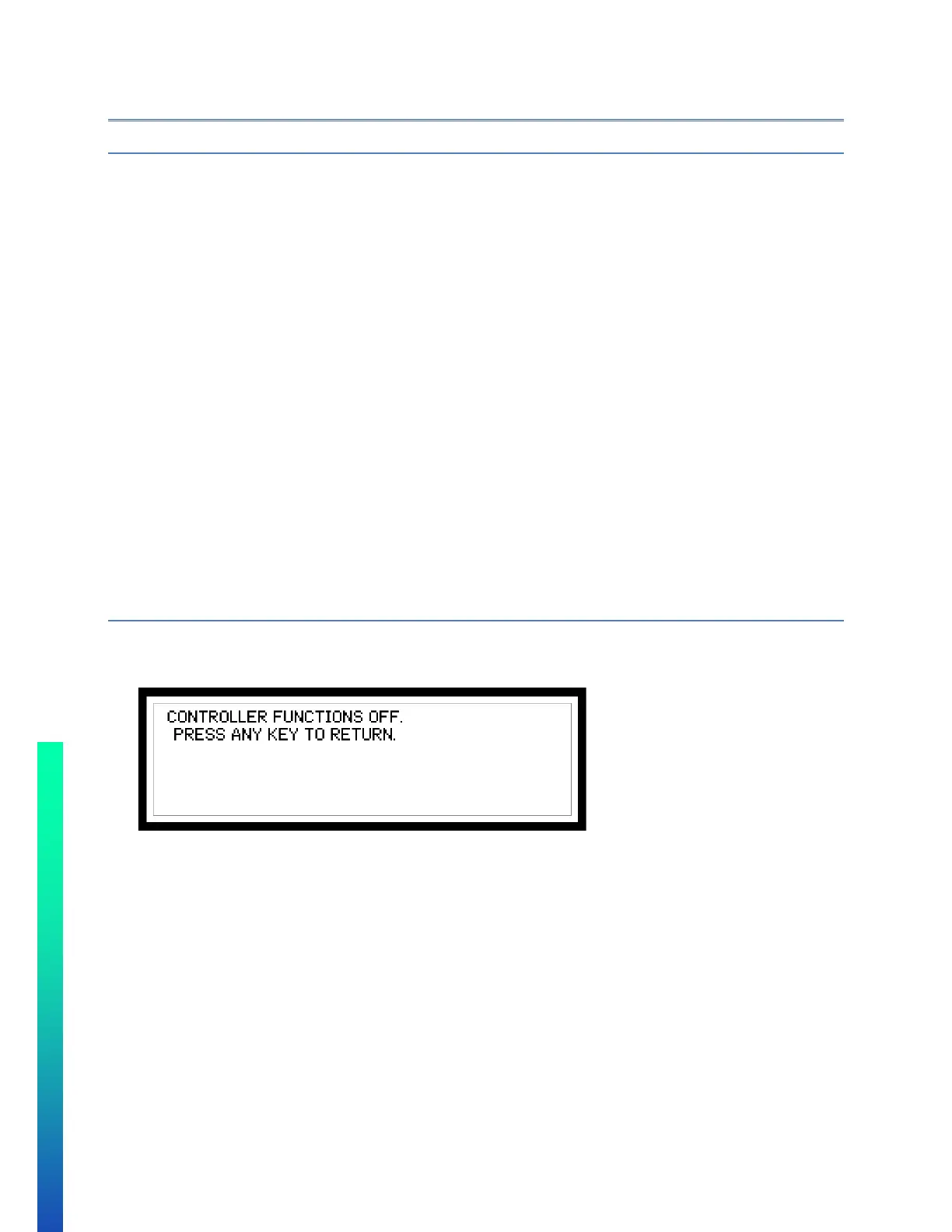

To turn controller operations off through the keypad, press and hold “OFF” until the following screen appears:
Communication stops to scoreboard.
Pressing any key will bring the controller to the power on sequence.
