Adventurer ProEN-8

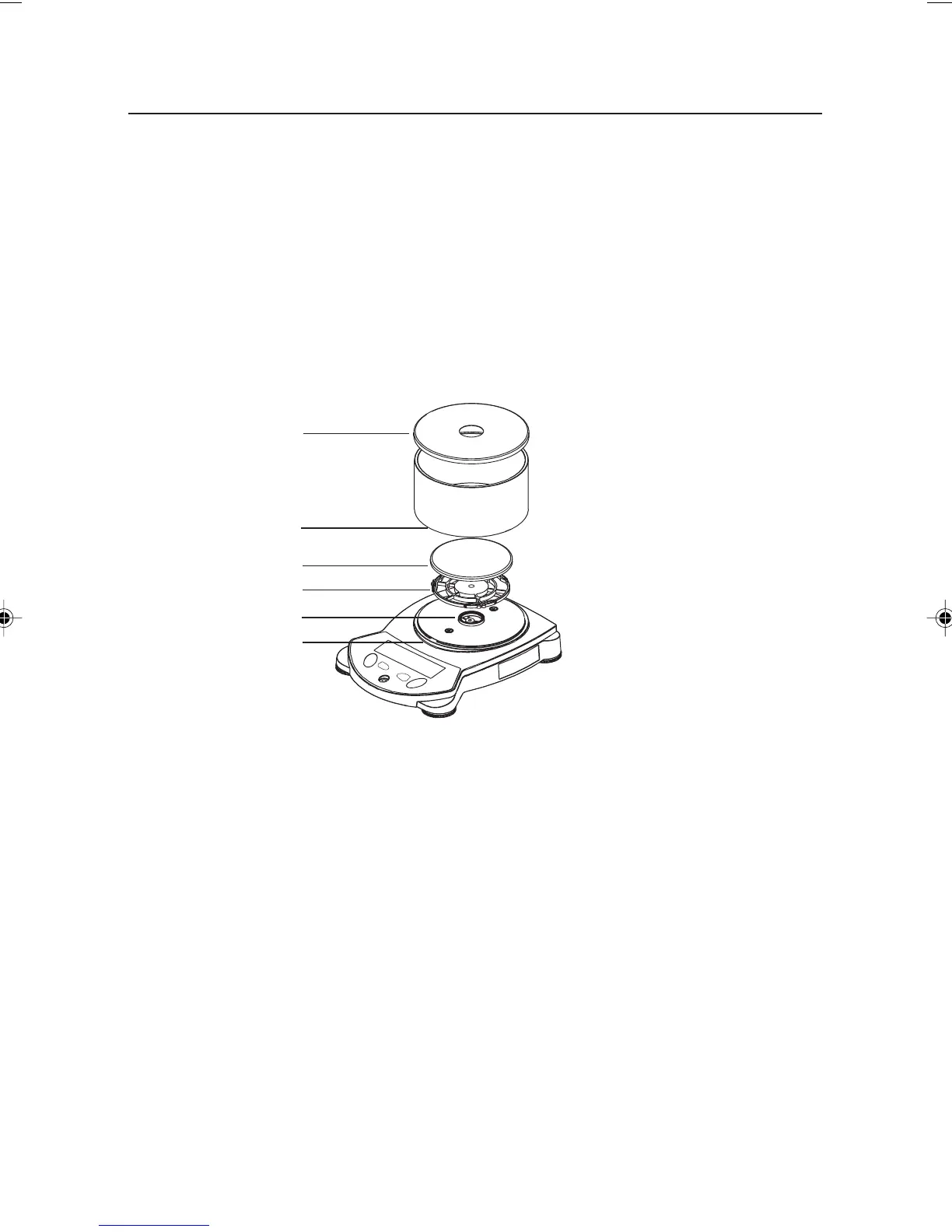

2.2.3 Assembly of Model AV53
Note: Assembly instructions also apply to models with the suffix C, CR, CU, R or U.
1. Insert the Sub-platform on the mounting cone in the center of the balance.
2. Place the Weighing Pan on the Sub-platform.
3. Attach the Draft Shield by inserting the round bottom edge in the circular
recessed slot, as shown.
4. Place the metal cover on top of the Draft Shield.
Draft Shield Cover
Round Edge
of Draft Shield
Weighing Pan
Sub-platform
Circular Recessed
Slot
Mounting Cone
