9.2 Drawings and Dimensions

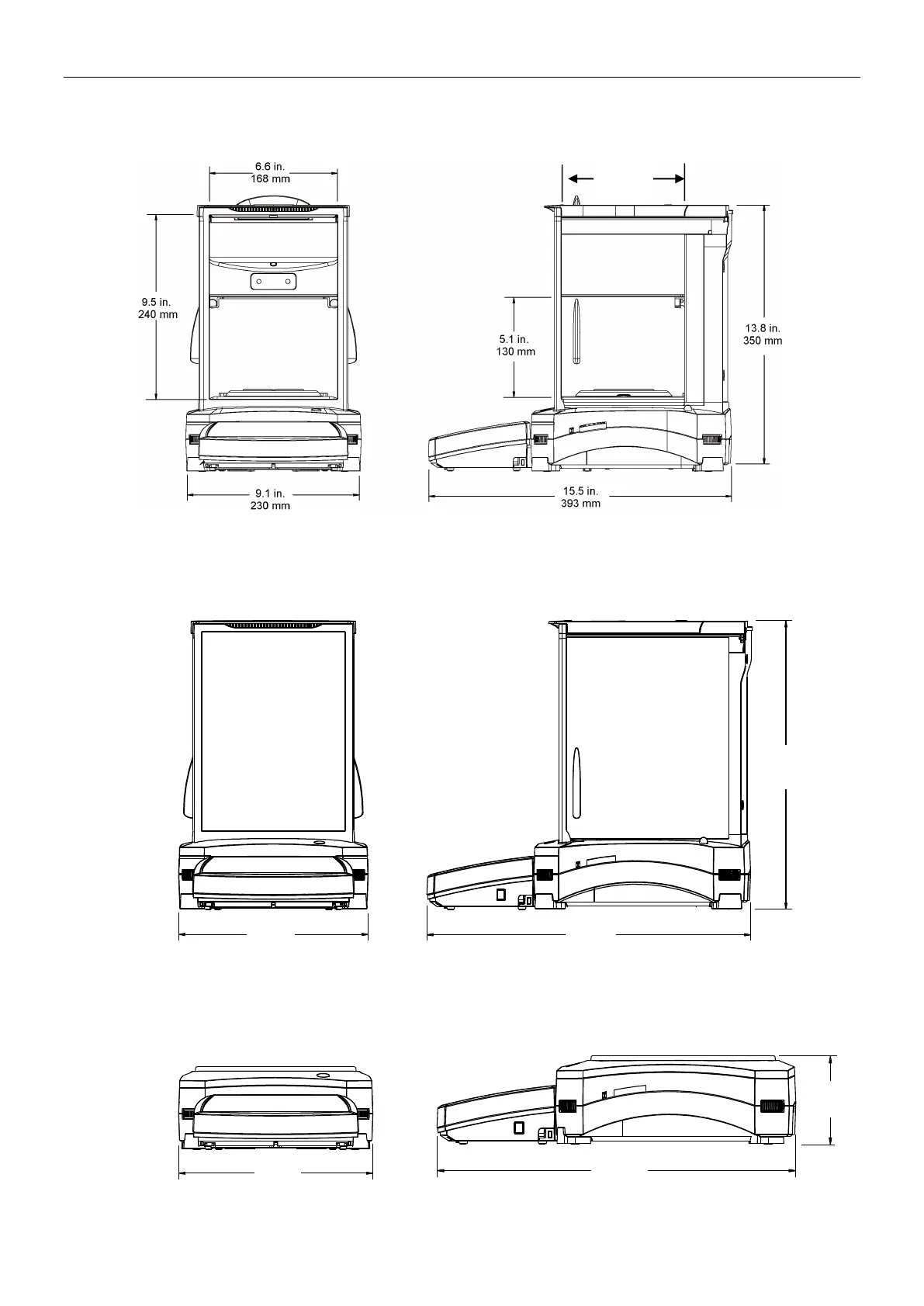

Fully assembled dimensions
Figure 9-1. Explorer Semi-Micro Balance
Figure 9-2. Draft Shield models
Figure 9-3. Non-Draft Shield models
15.5 in.
393 mm
3.9 in.
98 mm
9.1 in.
230 mm
9.1 in.
230 mm
13.8 in.
350 mm
15.5 in.
393 mm
6.3 in.
160 mm
