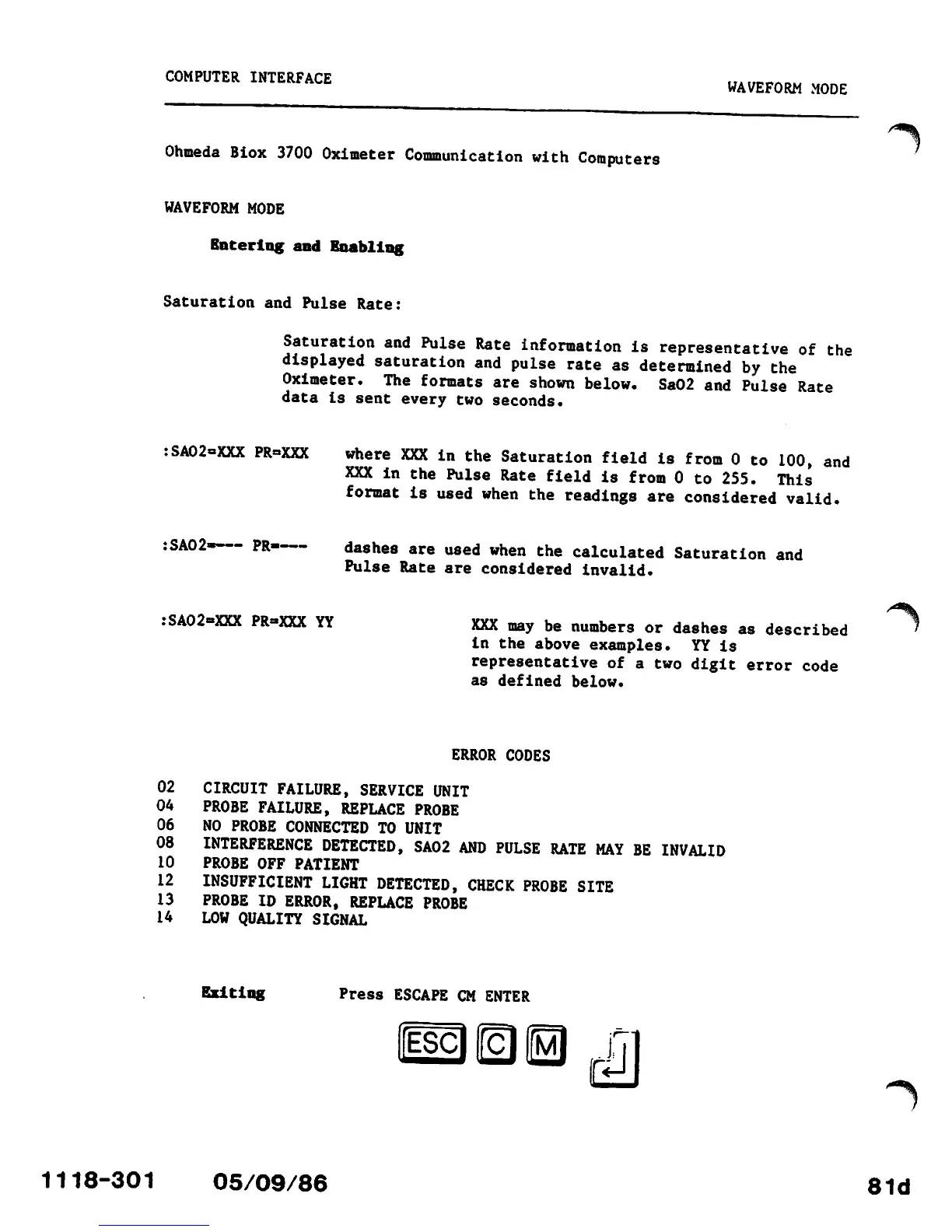

Ohmeda Biox 3700 - Page 104

COMPUTER INTERFACE mai,*™™ »
WAVEFORM MODE
Ohmeda Biox 3700 Oximeter Communication with Computers
WAVEFORM MODE
Entering and Enabling
Saturation and Pulse Rate:
Saturation and Pulse Rate information is representative of the
displayed saturation and pulse rate as determined by the
Oximeter. The formats are shown below. Sa02 and Pulse Rate
data is sent every two seconds.
:SA02«XXX PR-XXX where XXX in the Saturation field is from 0 to 100, and
XXX in the Pulse Rate field is from 0 to 255. This
format is used when the readings are considered valid.
:SA02- PR- dashes are used when the calculated Saturation and
Pulse Rate are considered invalid.
:SA02»XXX PR-XXX YY XXX may be numbers or dashes as described ^
in the above examples. YY is
representative of a two digit error code
as defined below.
ERROR CODES
02 CIRCUIT FAILURE, SERVICE UNIT
04 PROBE FAILURE, REPLACE PROBE
06 NO PROBE CONNECTED TO UNIT
08 INTERFERENCE DETECTED, SA02 AND PULSE RATE MAY BE INVALID
10 PROBE OFF PATIENT
12 INSUFFICIENT LIGHT DETECTED, CHECK PROBE SITE
13 PROBE ID ERROR, REPLACE PROBE
14 LOW QUALITY SIGNAL
Exiting
Press ESCAPE CM ENTER
^*%
1118-301 05/09/86 81d
