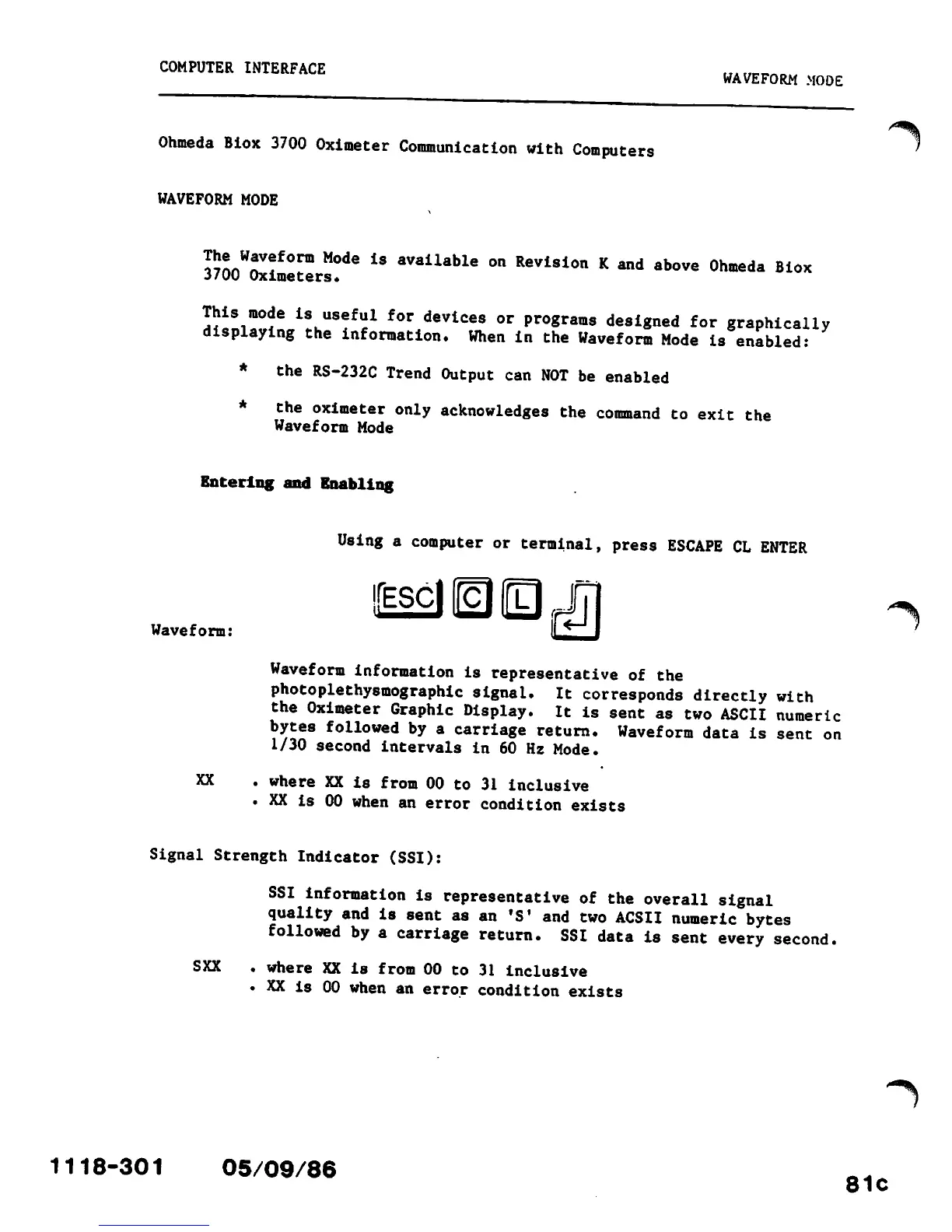

Ohmeda Biox 3700 - Page 103

COMPUTER INTERFACE „Am„n
WAVEFORM MODE
Ohmeda Biox 3700 Oximeter Communication with Computers
WAVEFORM MODE
I5nnW£?f0rn M°de 1S available on ^vision K and above Ohmeda Biox
3700 Oximeters.
This mode is useful for devices or programs designed for graphically
displaying the information. When in the Waveform Mode is enabled:
* the RS-232C Trend Output can NOT be enabled
* the oximeter only acknowledges the command to exit the
Waveform Mode
Entering and Enabling
Using a computer or terminal, press ESCAPE CL ENTER
IfF
Waveform:
XX
ISCjlJElJlj
Waveform information is representative of the
photoplethysmographic signal. It corresponds directly with
the Oximeter Graphic Display. It is sent as two ASCII numeric
bytes followed by a carriage return. Waveform data is sent on
1/30 second intervals in 60 Hz Mode.
. where XX is from 00 to 31 inclusive
. XX is 00 when an error condition exists
Signal Strength Indicator (SSI):
SSI information is representative of the overall signal
quality and is sent as an 'S' and two ACSII numeric bytes
followed by a carriage return. SSI data is sent every second.
SXX . where XX is from 00 to 31 inclusive
. XX is 00 when an error condition exists
/*;^%
/^k
1118-301 05/09/86
81c
