B4400/4500/4550/4600 User’s Guide
32
B4500, B4550, B4600
Operator panel

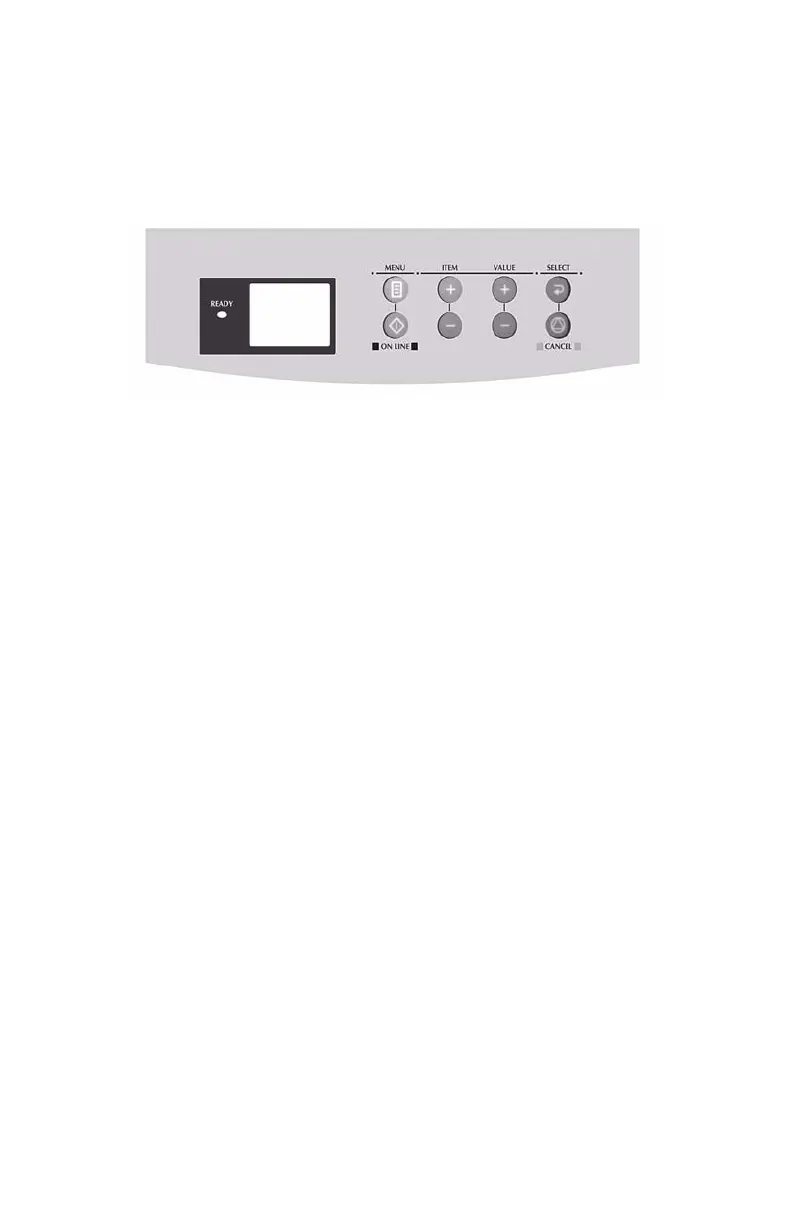

The B4500, B4550 and B4600 operator panel consists of a
menu driven control panel, an LCD display and a LED indicator.
Panel elements
Ready indicator (green). ON - ready to receive data.
FLASHING indicates processing data or error.
Liquid crystal display. (LCD) panel. Two rows of up to 8
alphanumeric digits displaying print status, menu items in
menu mode and error messages.
Menu button. Press briefly to enter the MENU mode. Press
briefly again to select the next menu. Press for more than 2
seconds to scroll through the different menus.
Item (+) button. Press briefly to scroll forward to the next
menu item.
Value (+) button. Press briefly to scroll forward to the next
value setting for each menu item.
Select button. Press briefly to select the menu, item or value
indicated on the LCD panel.
Cancel button. Press to cancel a print job.
Value (–) button. Press briefly to scroll backward to the
previous value setting for each menu item.
Item (–) button. Press briefly to scroll backward to the
previous menu item.
Online button. Press to switch between online and offline
status.
NOTE: When pressed in Menu mode, the Online button
returns the printer to online status. When pressed with DATA
