14. Serial
connector
For connecting the serial cable.
15. Duplex unit
connector
For connecting the optional duplex unit.

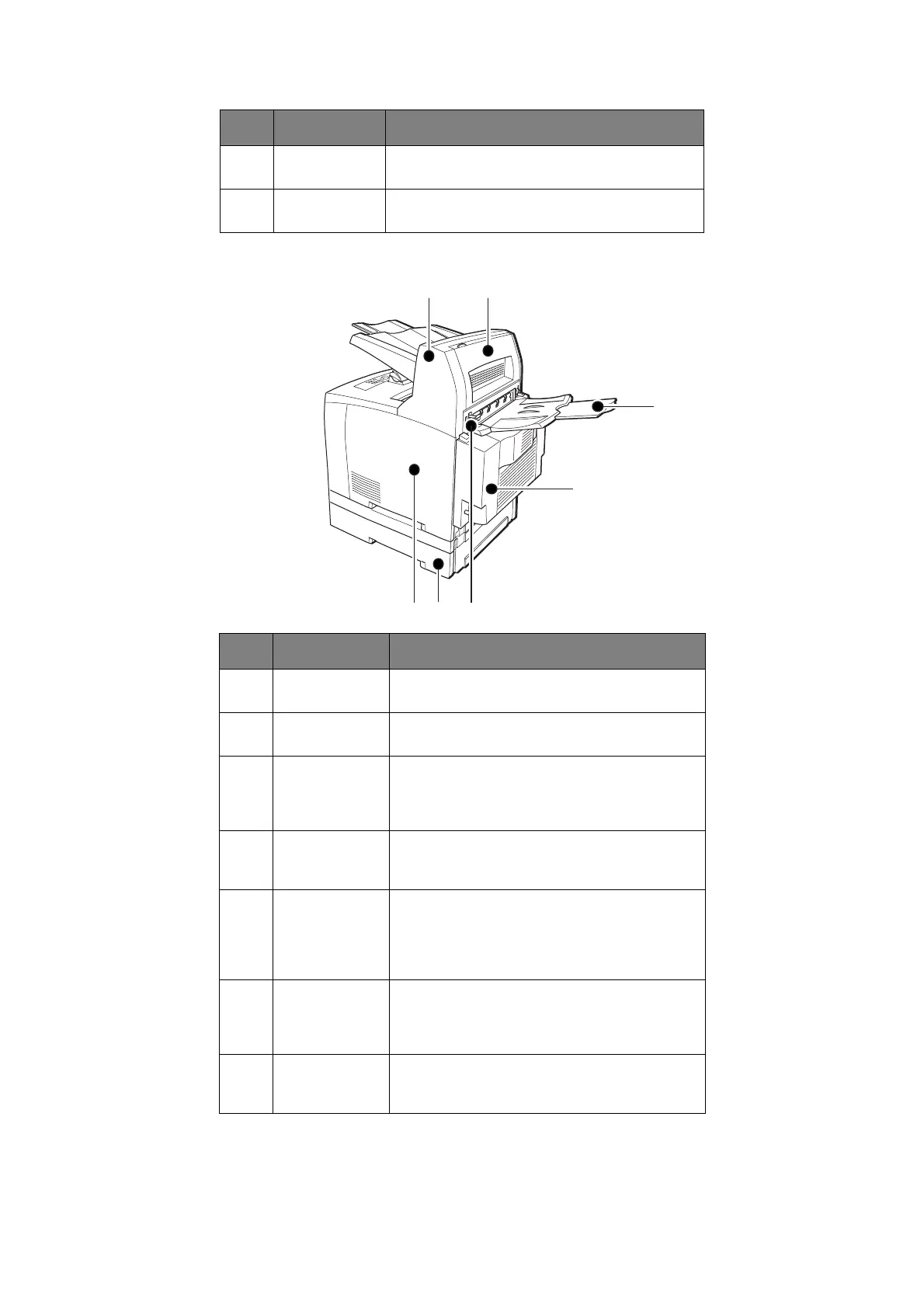

NO. NAME DESCRIPTION
1. Offset catch
tray (optional)
Allows you to stagger the output position for
each print job (offset output).
2. Cover D
(optional)
Open this when paper is jammed inside the
offset catch tray.
3. Rear tray
(optional)
Use this tray if you want to reduce curling of
paper when printing heavyweight paper. Print
jobs are output here with the printed side
facing up.
4. Duplex unit
(Cover C)
Enables 2 sided printing. When paper is
jammed inside the duplex unit, it is described
as cover C.
5. Rear output
tray lever
When the rear tray has been installed, the
paper output location can be switched between
it and the centre output tray. Raise the lever to
output to the rear tray and lower the lever to
output to the centre output tray.
6. A4 universal
tray (optional
Tray3 and
Tray4)
Can install up to two levels of an Letter/A4
universal tray (550) to this printer.
7. Right
detachable
cover
Remove this when installing optional
accessories such as hard disk, compact flash
and additional DDR memory module.
NO. NAME DESCRIPTION
1
2
3
4
56
7
