Basic Operations > 11
I
NTERNAL
V
IEW
NO. NAME DESCRIPTION

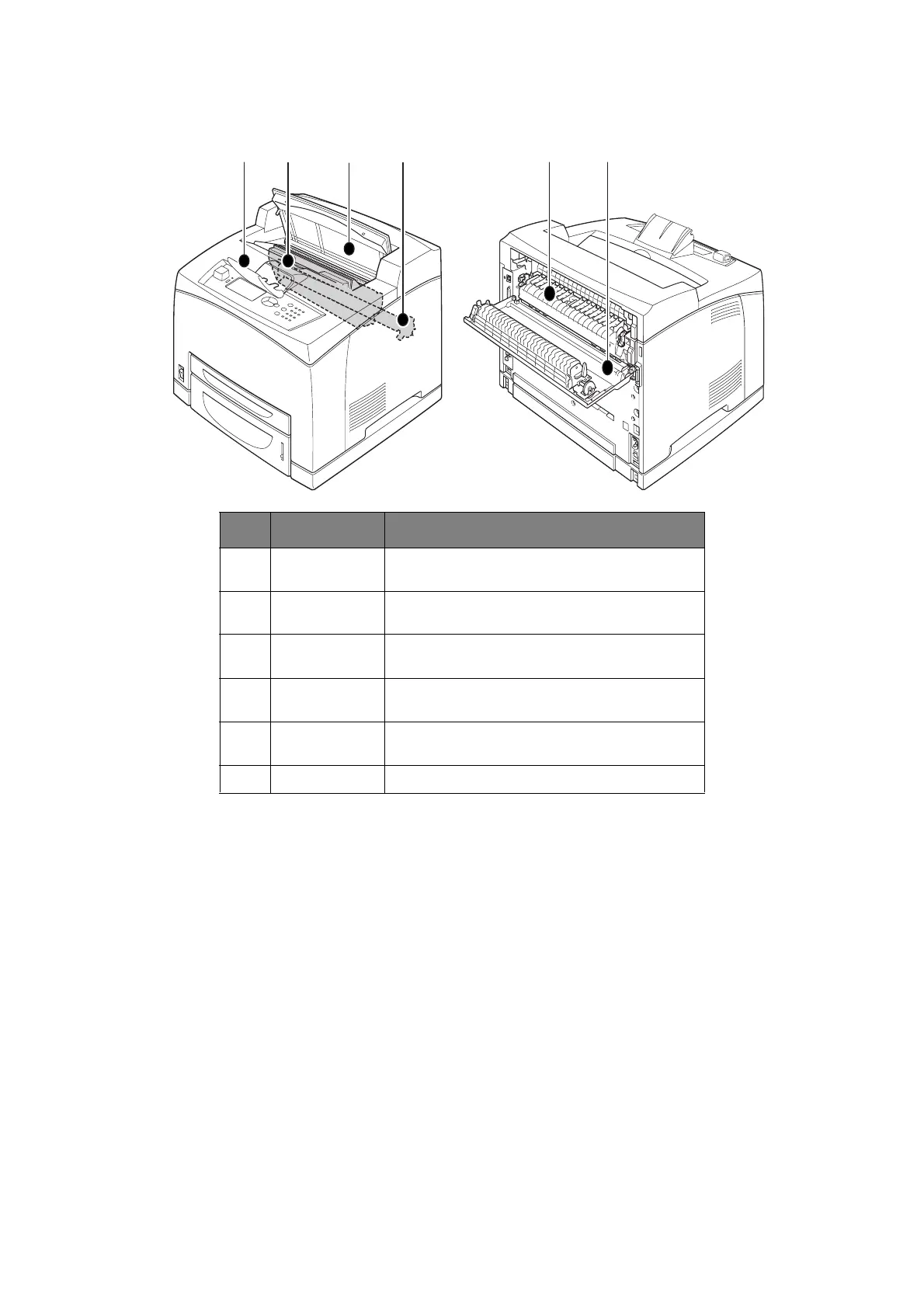

1. Paper
extension
Raise this when printing on paper larger than A4
size.
2. Drum/toner
cartridge
Contains the toner and the photosensitive
drum.
3. Cover A Open this when replacing the drum/toner
cartridge and removing jammed paper.
4. Fuser unit Fixes the toner on the paper. Do not touch this
when using the printer as it is hot.
5. Transfer roll
cartridge
Transfers the toner image on the surface of the
photosensitive drum to the paper.
6. Cover B Open this when removing jammed paper.
1
2
34
5
6
