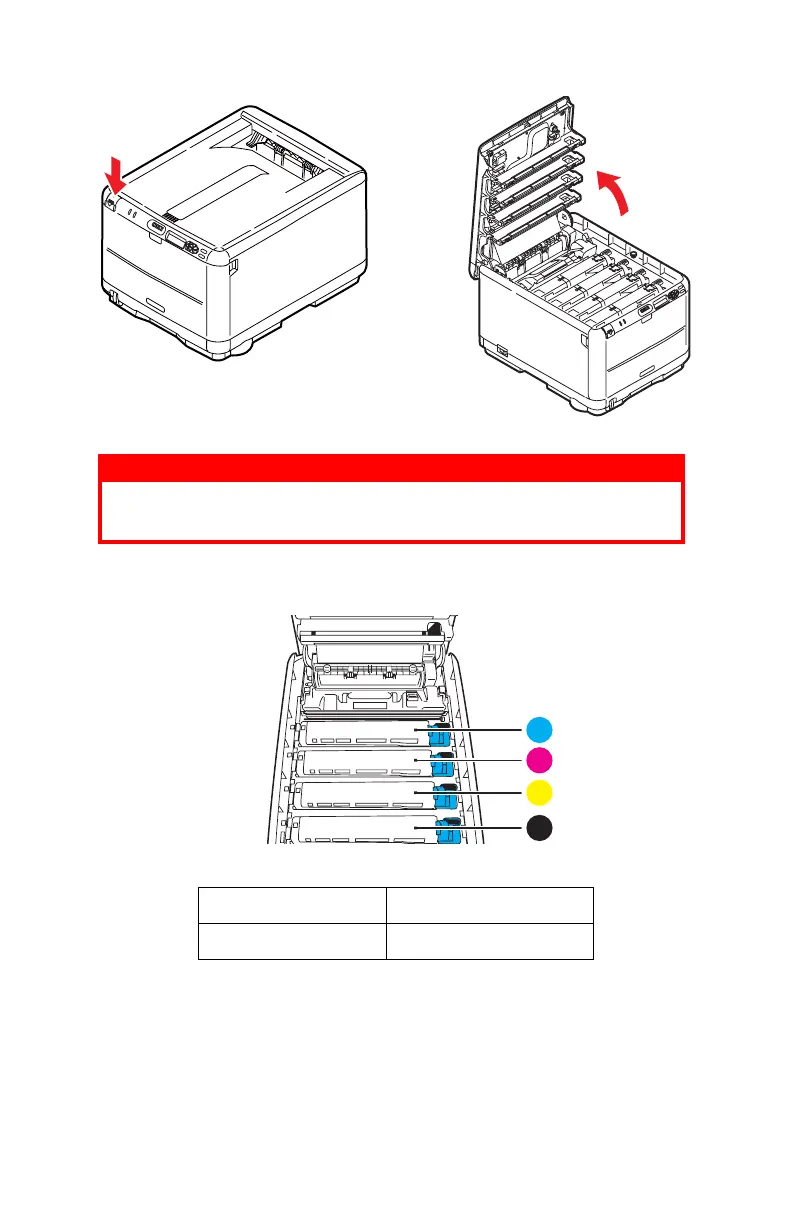

2. Press the cover release and open the printer’s top cover fully.
cover open button_F5_23.jpg
3. Note the positions of the 4 cartridges.
ID Positions_Fig1_04.jpg
It will be necessary to remove the four image drums to gain
access to the paper path.
WARNING!
If the printer has been powered on, the fuser will be hot.
This area is clearly labelled. Do not touch.
1. Cyan cartridge 2. Magenta cartridge
3. Yellow cartridge 4. Black cartridge
1
2
3
4
