Printer overview
Front view

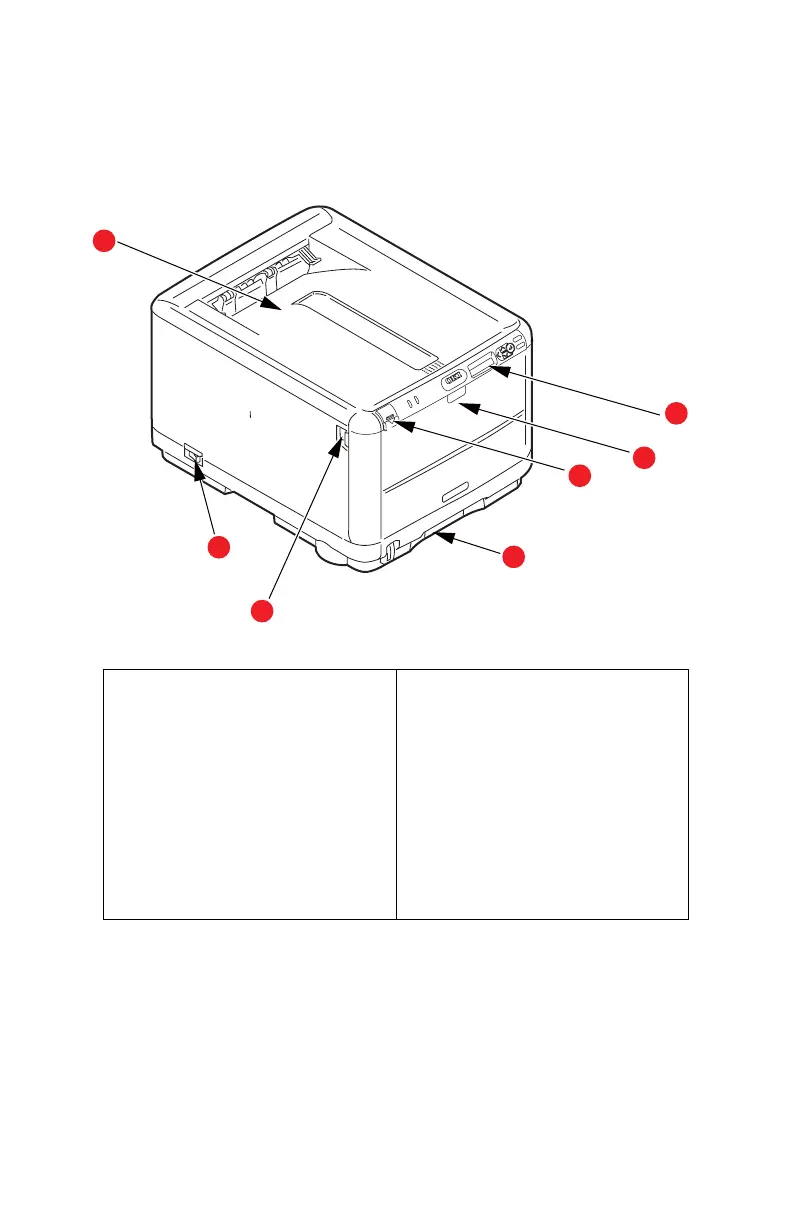

printer parts_Fig1_03.jpg
1. Printer cover and Output stacker,
face down.
Standard printed copy delivery
point. Holds up to 150 sheets at
20 lb. (80 g/m²).
2. Operation Panel.
Status LEDs and operator
buttons.
3. Cassette Tray.
Standard blank paper tray. Holds
up to 250 sheets of 20 lb.
(80 g/m²) paper.
4. Multi Purpose Feeder Tray Release
(when closed, press to open).
Multi Purpose Tray:
Used for manual duplex, feeding
heavier paper stocks, envelopes
and other special media. Also for
manual feeding of single sheets
when required.
5. ON/OFF switch.
6. Front Cover Open Release (press
to open).
7. Printer Cover Open Release (push
to open).
1
4
2
3
6
6
5
7
