C3600n User’s Guide
82

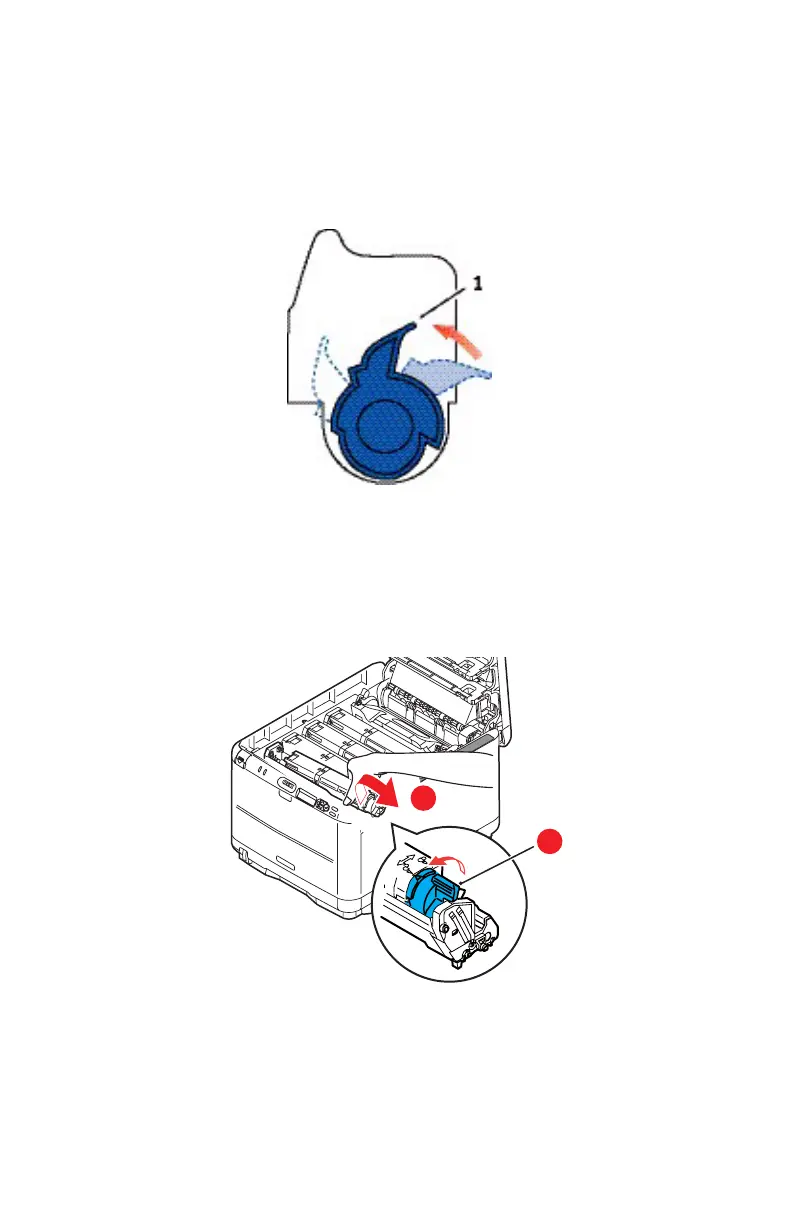

3. Carry out one of the following:
(a) If you are replacing a toner cartridge that has been supplied
with your printer (release lever has 3 positions), pull the
colored toner release lever on the cartridge to be replaced
towards the front of the printer, in the direction of the
arrow, but stop at the central (upright) position (1).
Toner 3 positions_2.eps
(b) If you are replacing any other toner cartridge (lever has 2
positions), pull the colored toner release lever (1) on the
cartridge to be replaced fully towards the front of the
printer.
Toner unLock_F5_01.jpg
4. Lift the right-hand end of the cartridge and then draw the
cartridge to the right to release the left-hand end as shown, and
withdraw the toner cartridge from the printer (2).
1
2
