C3600n User’s Guide
91

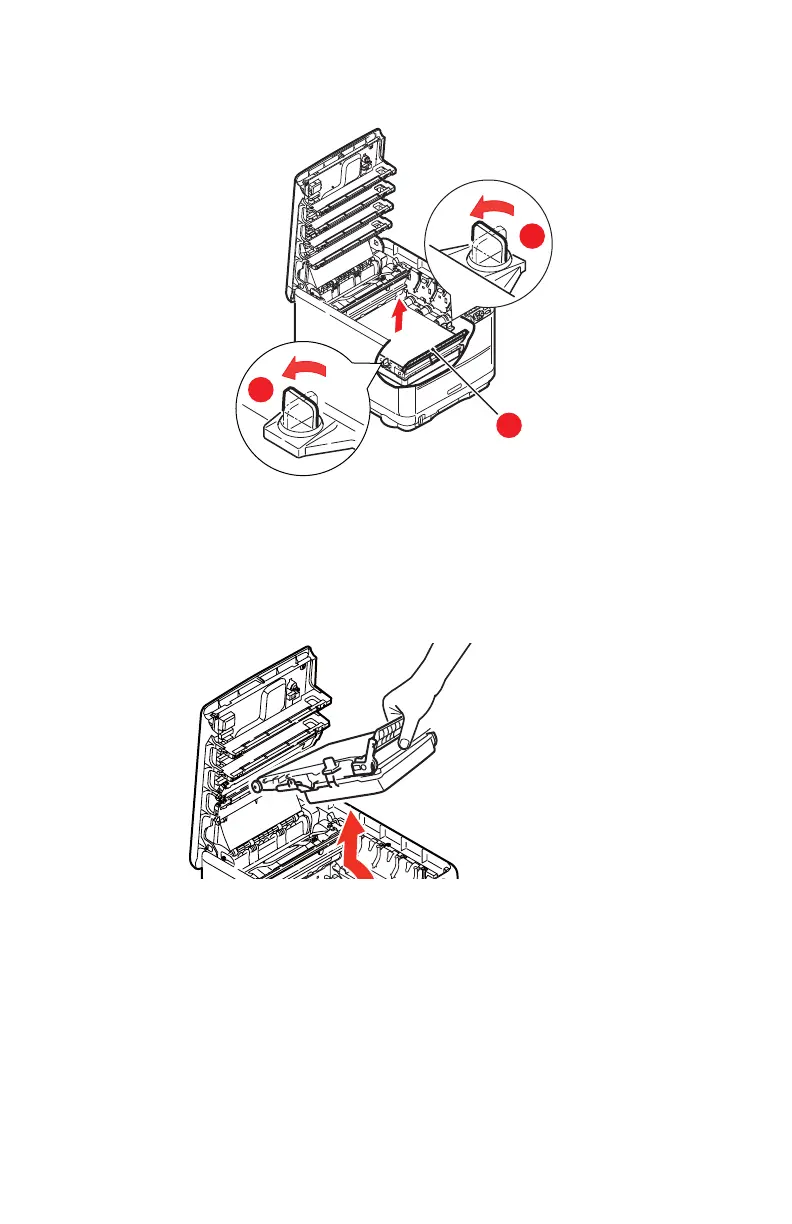

4. Locate the two fasteners (1) at each side of the belt and the
lifting bar (2) at the front end.
unlock belt_F5_08.jpg
5. Turn the two fasteners (1) 90° to the left. This will release the
belt from the printer chassis.
6. Pull the lifting bar (2) upwards so that belt tilts up towards the
front, and withdraw the belt unit from the printer.
belt coming out_Fig1_33.jpg
1
2
1
