44205401TH Rev.1
207 /
Oki Data CONFIDENTIAL

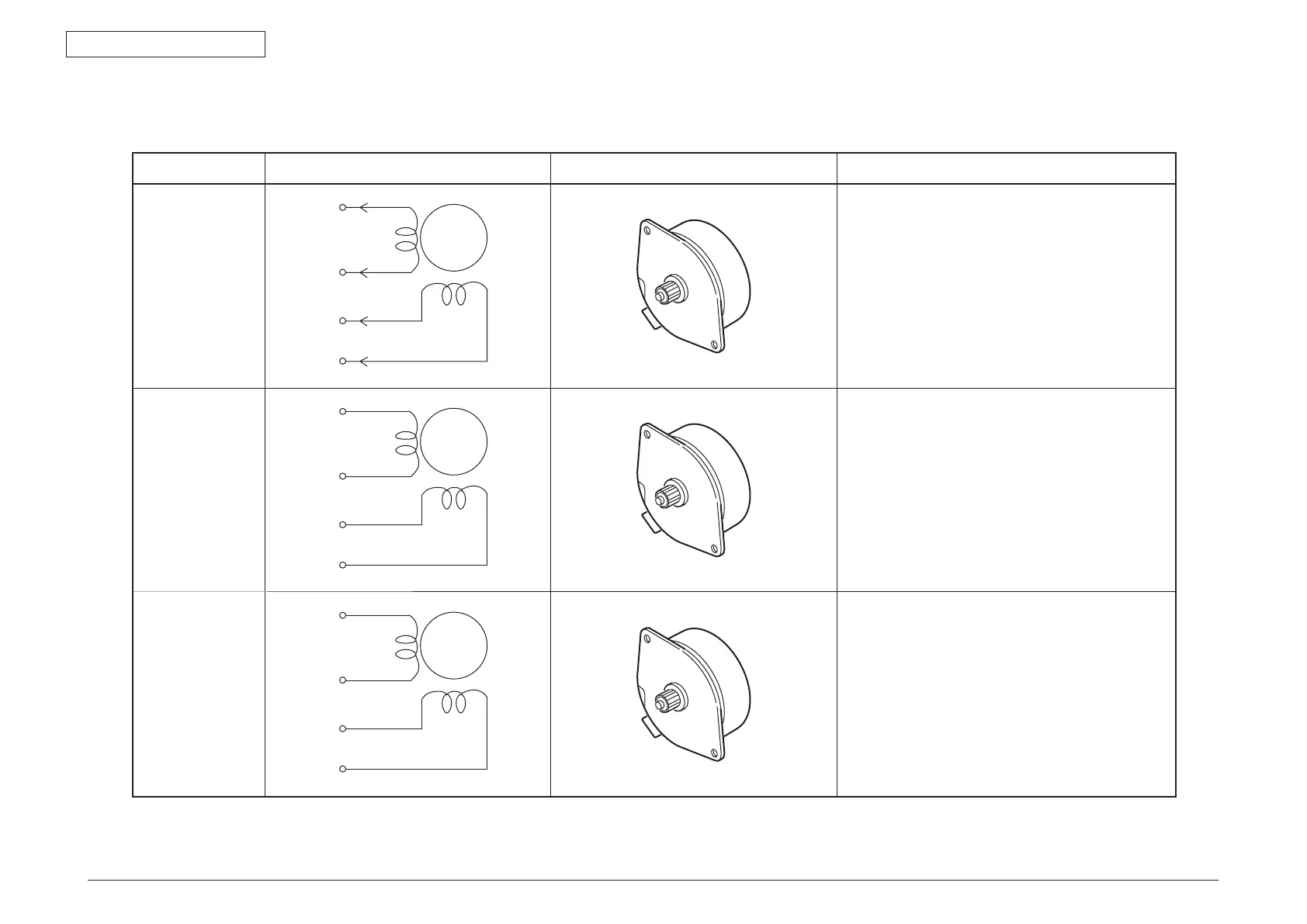

8. Connection diagrams
Unit Electrical circuit diagram, connection Part outside view Resistance value
Feed motor
M
1
2
3
4
Between pin-1 and pin-2: 3.4
Ω
Between pin-3 and pin-4: 3.4
Ω
Both-sided print
motor
M
1
2
3
4
Between pin-1 and pin-2: 3.2
Ω
Between pin-3 and pin-4: 3.2
Ω
2nd / 3rd tray
feed motor
M
1
2
3
4
Between pin-1 and pin-2: 3.4
Ω
Between pin-3 and pin-4: 3.4
Ω
