44205401TH Rev.1
25 /
Oki Data CONFIDENTIAL
2. Operating instructions
(4) Updown operation of ID unit
1. The up and down operation of the ID unit is done by driving the liftup motor.

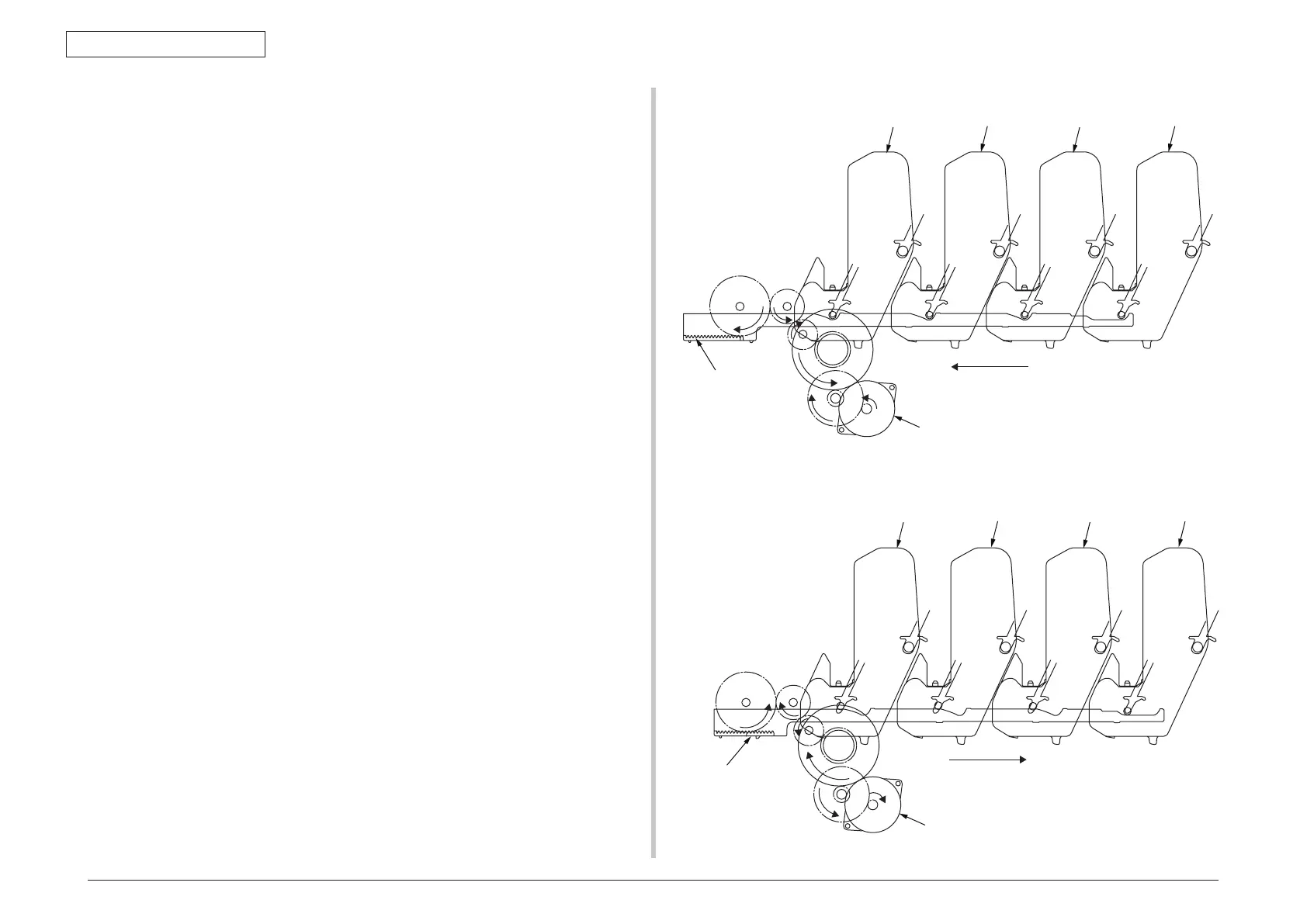

2. Fig. 2-6 shows the operation of each ID unit when color printing. When the
liftup motor is rotated (counter clockwise), the liftup link slides to left, and
each ID unit is in DOWN condition as shown in Fig. 2-6. Under this condition,
the color printing is available.
3. Fig.
2-7 shows the operation of each ID unit when mono printing. When the
liftup motor is rotated (clockwise), the liftup link slides to right, and each ID
unit (except K-ID unit) is in UP condition as shown in Fig. 2-7. Under this
condition, the mono printing is available.
Liftup link
Liftup link
C-ID unit M-ID unit Y-ID unit K-ID unit
C-ID unit M-ID unit Y-ID unit K-ID unit
Liftup motor (CCW)
The operation of each ID unit when color printing
C-ID unit DOWN
M-ID unit DOWN
Y-ID unit DOWN
K-ID unit DOWN
Liftup motor (CW)
The operation of each ID unit when mono printing
C-ID unit Liftup
M-ID unit Liftup
Y-ID unit Liftup
K-ID unit DOWN
Figure 2-6
Figure 2-7
