44205401TH Rev.1
26 /
Oki Data CONFIDENTIAL
2. Operating instructions
(5) Fuse unit and paper delivery
1. The fuse unit and the delivery roller are driven by the DC motor as shown in
Fig. 2-8. When the fuse motor is rotated (counter clockwise), the heat roller
will begin to rotate. The heat roller makes the toner image fused to the paper
by heat and pressure.
2. The paper e
xits while the deliver
y roller rotates.
(6) Cover open operation of color blur sensor and density sensor
1. As shown in Fig. 2-9, when the fuse motor is rotated (clockwise), the cover
open gear is operated and the cover of color blur sensor and density sensor
is open.
2. When
the fuse motor is rotated (counter clockwise) in the opposite direction,
the cover open gear is moved out of engagement and the cover of color blur
sensor and the density sensor is close.

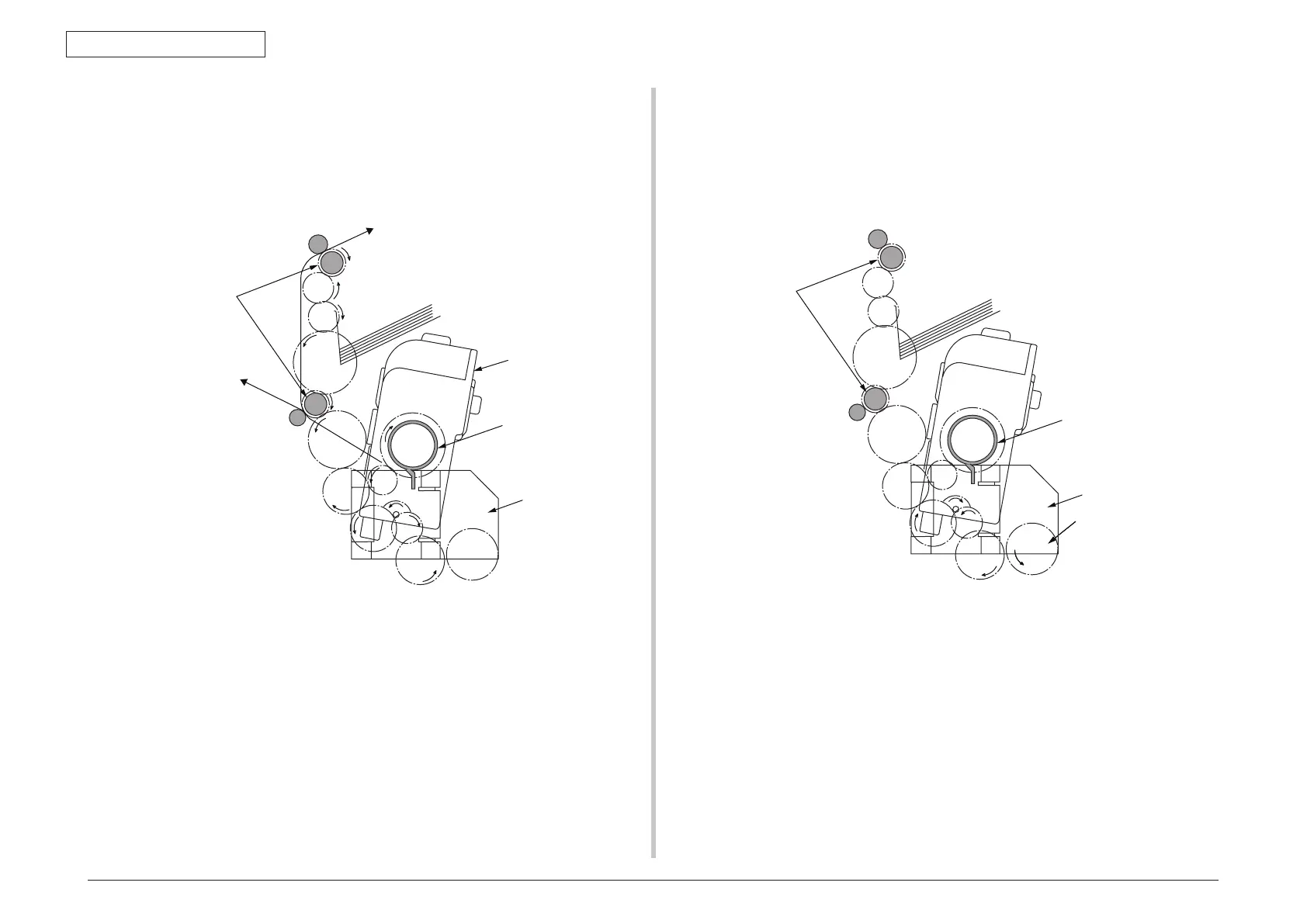

Figure 2-8 Figure 2-9
Fuse motor
(CCW)
Eject roller
(Drive)
Heat roller
(Drive)
Fuser unit
Cover open gear
Fuse motor
(CW)
Eject roller
(Stop)
Heat roller
(stop)
To Next Page
