Oki C711 - Page 83

44205401TH Rev.1
83 /
Oki Data CONFIDENTIAL

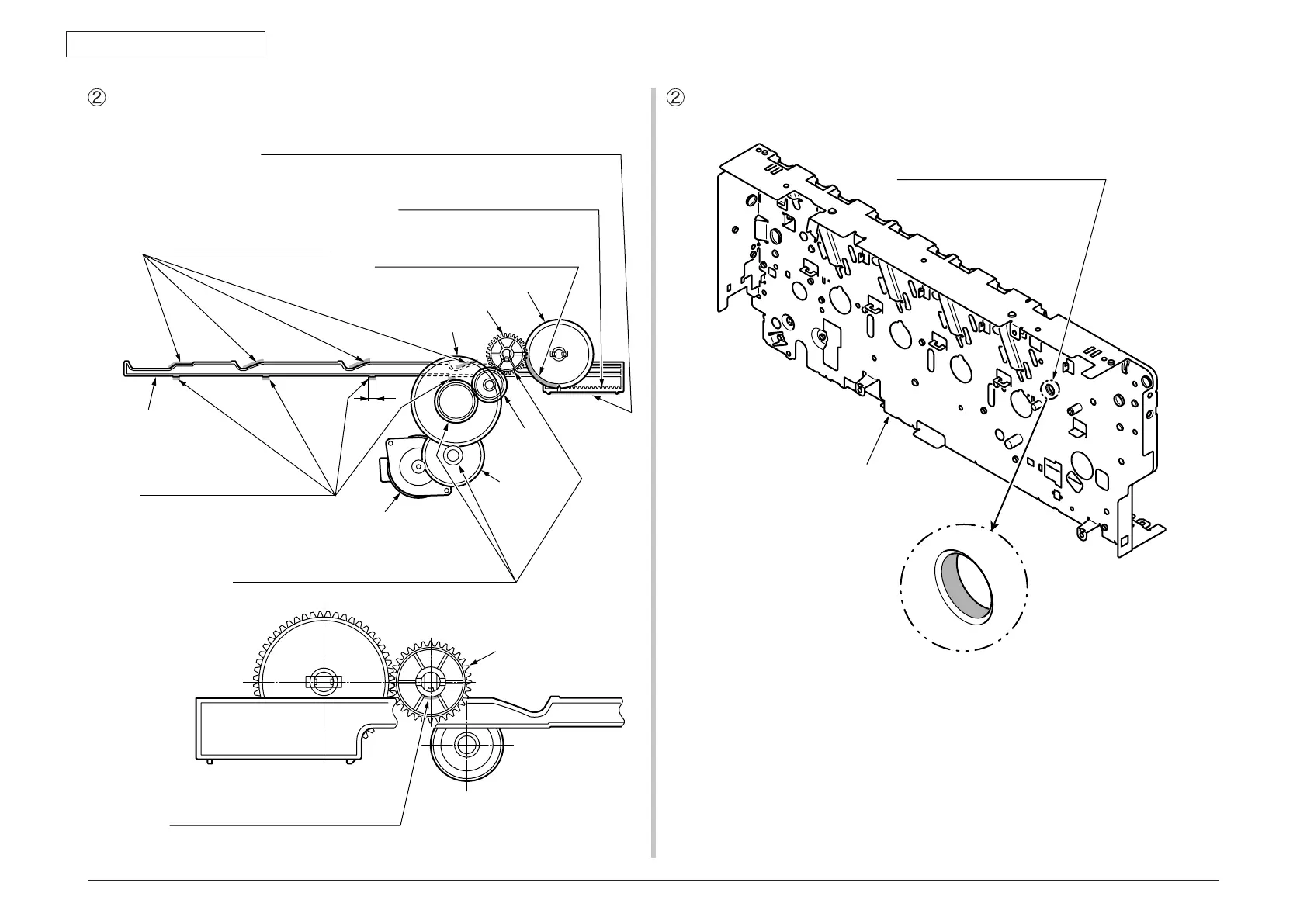

4. Component replacement
-4 44259101PA Plate-Assy.-Side R -5 44259101PA Plate-Assy.-Side R
Gear-LiftUpR-Z32
Gear-LiftUp-
Z83Z25
Gear-Liftup-Z121Z34
Gear-Idle
LiftUp-Z28
Link-LiftUp-R
Motor-Pulse-LiftUp
Gear-LiftUpR-Z32
(5)
Gear-LiftUpLinkR-Z56
EM-30L Class B
Apply a small amount of MOLYKOTE
(EM-30L) to the hatched area.
EM-30L Class A
Apply a small amount of
MOLYKOTE (EM-30L) to the
hatched areas.
EM-30L Class C
Apply a normal amount of MOLYKOTE (EM-30L) to the hatched area.
EM-30L Class C
Apply a normal amount of MOLYKOTE (EM-30L)
to the whole circle of gear teeth.
EM-30L Class C
Apply a normal amount of MOLYKOTE
(EM-30L) to gear teeth of hatched area.
EM-30L Class C
Apply a normal amount of MOLYKOTE
(EM-30L) to gear teeth tops.
EM-30L Class A
Apply a small amount of MOLYKOTE
(EM-30L) to the hatched areas.
Plate Side R (Caulking)
EM-30L Class C
Apply a normal amount of MOLYKOTE
(EM-30L) to bearing portion.
