4. Component replacement
43074904PA Plate-Assy.-Side-L 42071401PA Holder Assy.-Regist-L
Gear-LiftUp-Z32
EM-30L Class B

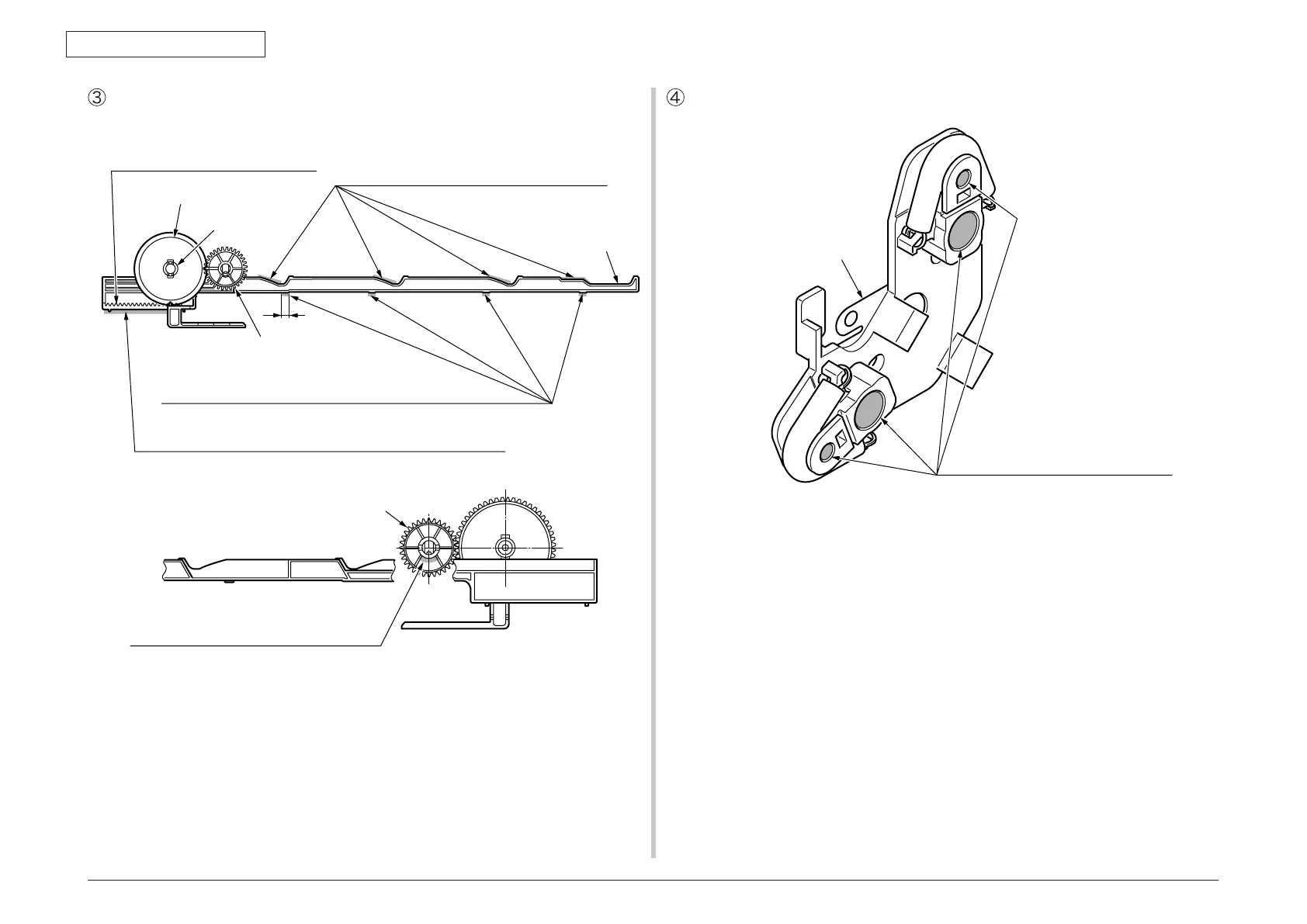

Apply a small amount of MOLYKOTE (EM-30L)
to the hatched areas.
EM-30L Class A
Apply a small amount of MOLYKOTE (EM-30L) to the hatched areas.
EM-30L Class A
Apply a small amount of MOLYKOTE (EM-30L)
to the hatched areas.
EM-30L Class C
Apply a normal amount of MOLYKOTE (EM-30L) to the hatched areas.
EM-30L Class C
Apply a normal amount of MOLYKOTE
(EM-30L) to the gear tooth tops.
Gear-LiftUp-Z56
Link-LiftUp-L
Gear-LiftUp-Z32
Post-GearIdle-L
(5)
Holder-Regist-L
EM-30L Class C
Apply a normal amount of MOLYKOTE
(EM-30L) to the hatched areas
(bearing portion).
