Oki C711 - Page 88

44205401TH Rev.1
88 /
Oki Data CONFIDENTIAL
4. Component replacement

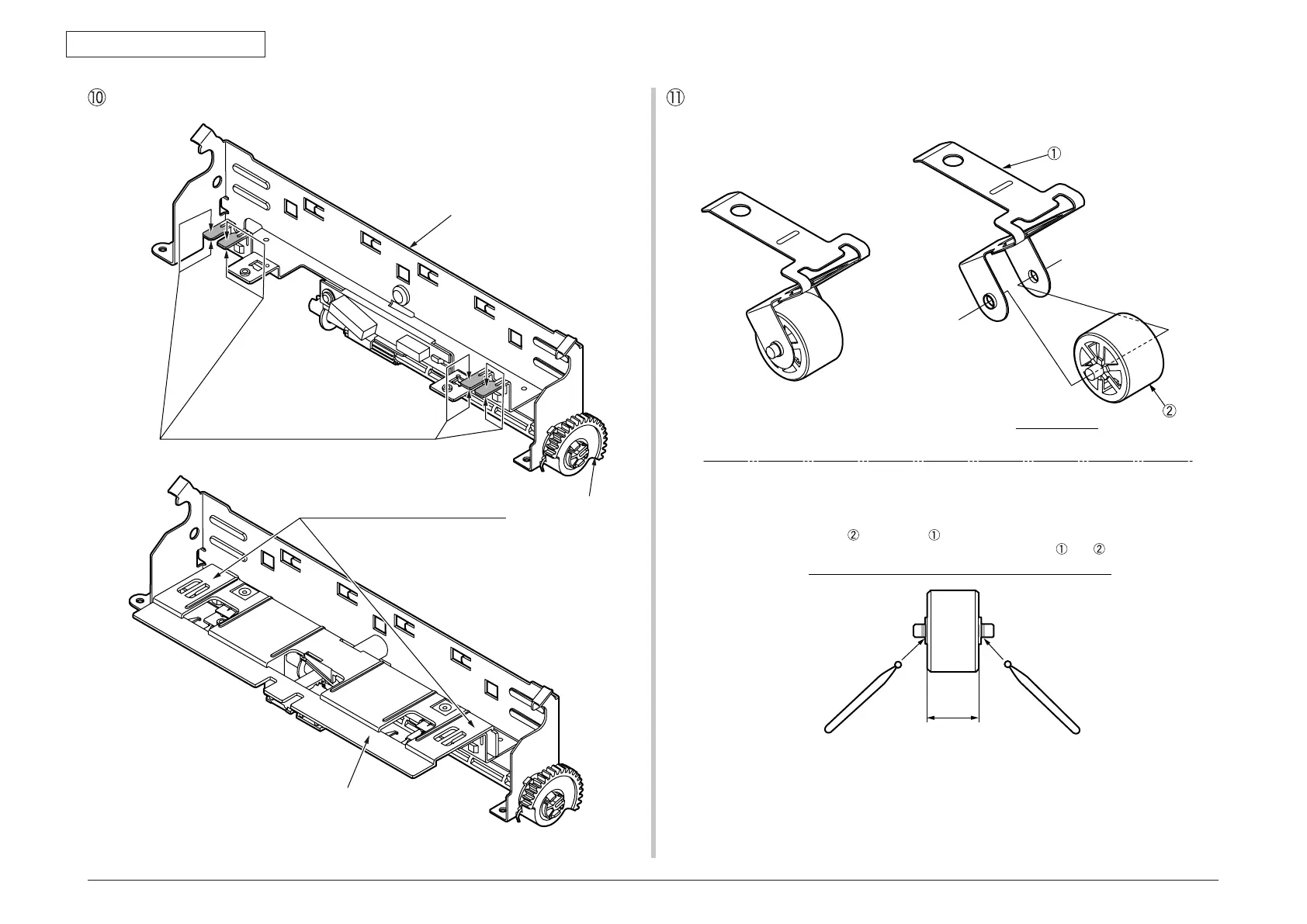

Cover-Sensor-C.Regist
EM-30L Class A
Apply a small amount of MOLYKOTE (EM30-L)
to the hatched areas (Both side, 8 places).
The surface of Cover-Sensor-C.Regist
should not be stained with MOLYKOTE.
Plate-Sensor-C.Regist
Gear Assy.-Shutter
43917501PA Sensor Assy. -Color Regist 43081301PA Roller-Assy. -Idle(FD)
Exploded View
Method of amount grease
Not allowed to stain the
area with grease.
EM-30L Class S
Before assemble to , apply a minimum amount of
MOLYKOTE (EM-30L) to the sliding portions of and
(the hatched areas).
