4. Component replacement

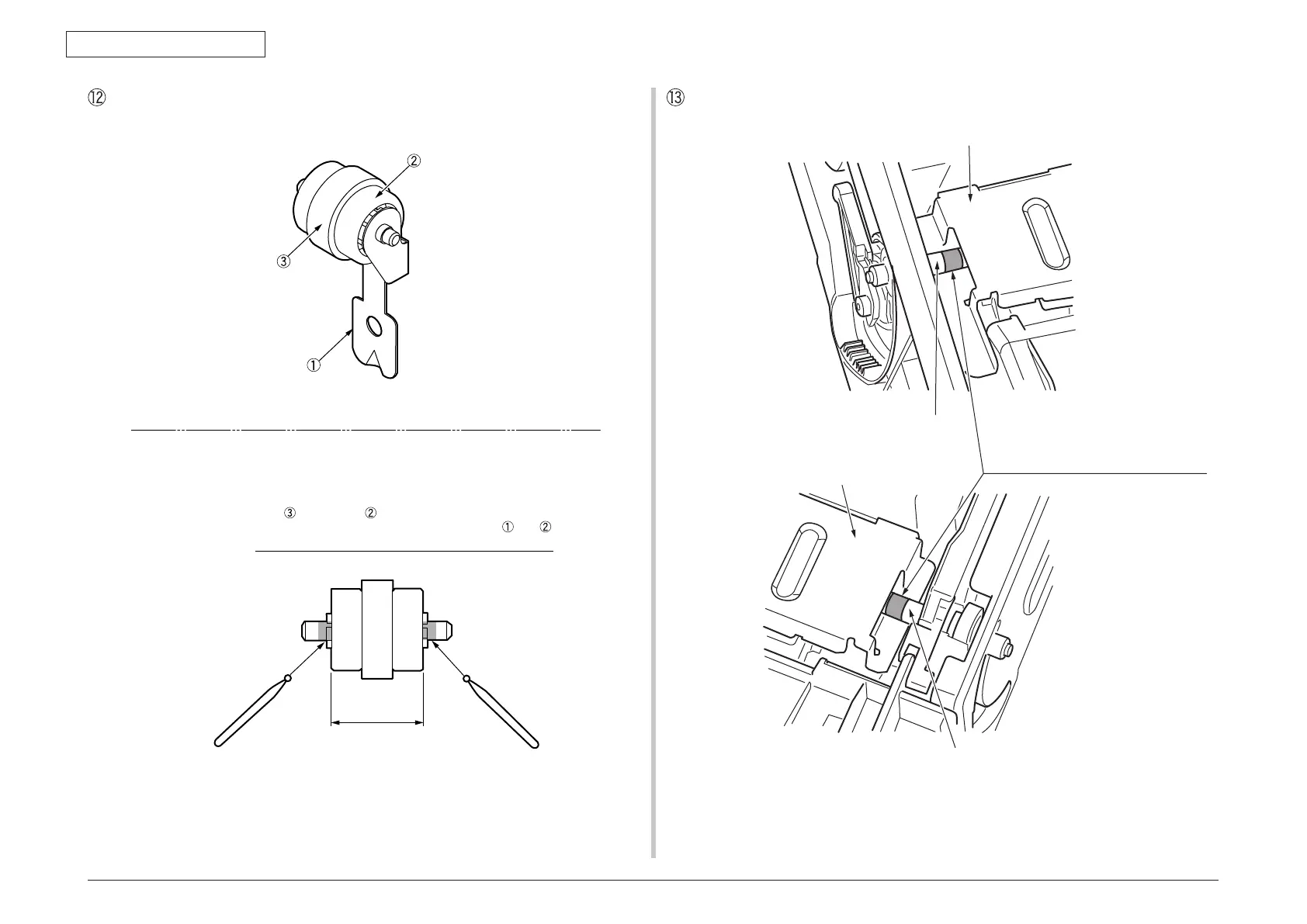

Method of amount grease
Not allowed to stain the
area with grease.
EM-30L Class S
After assemble to , apply a minimum amount of
MOLYKOTE (EM-30L) to the sliding portions of and
(the hatched areas).
43301601PA Roller-Assy. -BIAS(FU)C -1 43894903PA Cassette-Assy-PX757
Shaft-Liftup
Shaft-Liftup
Plate-Receive
Plate-Receive
EM-30LClassB
ApplyasmallamountofMOLYKOTE
(EM-30L)toslidingportionsofsheetmetal
andshaft(thehatchedarea).
