Oki C834 - Page 138

- 138 -
7. Maintenance
6

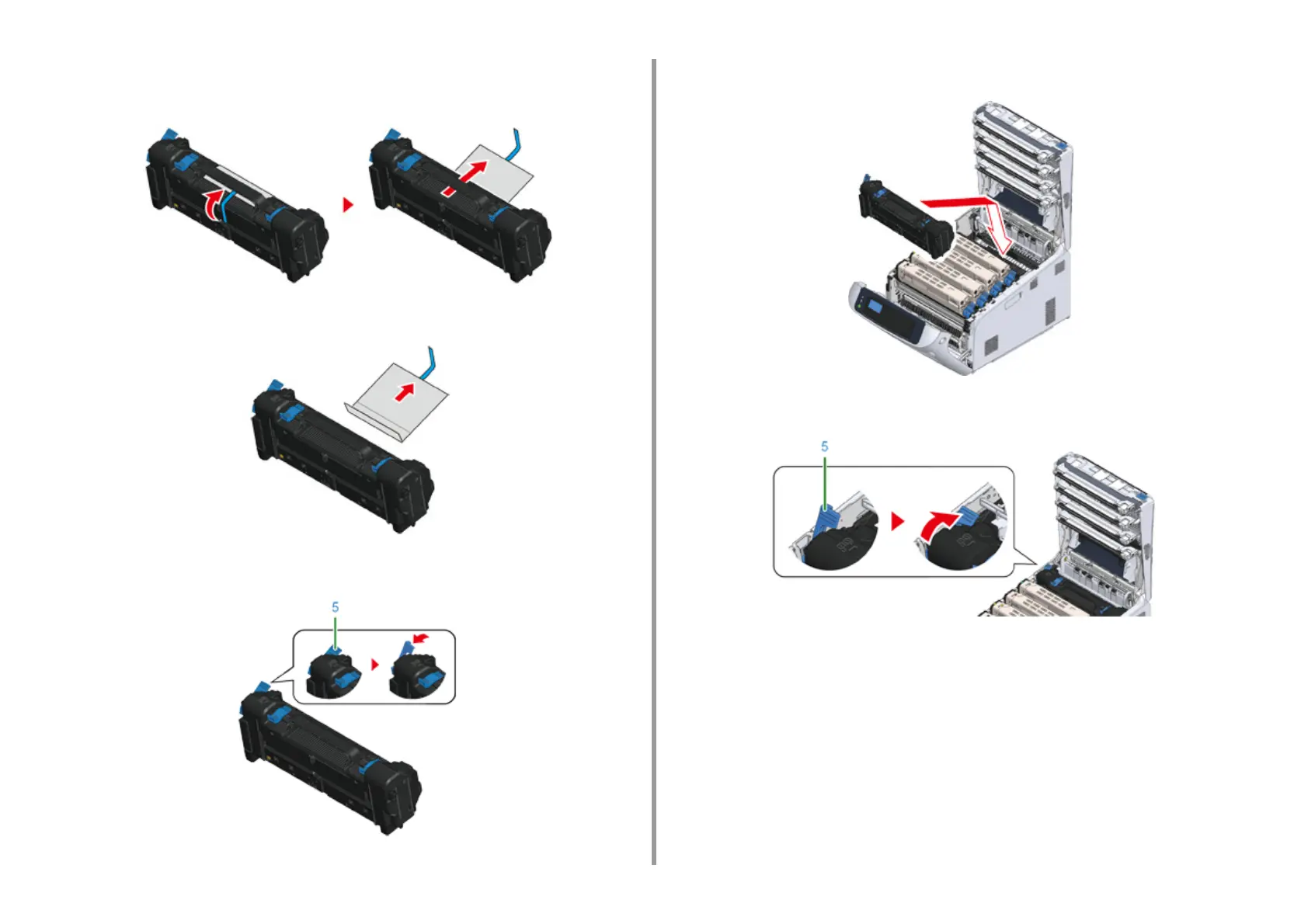

Peel off the tape from the new fuser unit, and pass the tape through the handle
of the fuser unit.
7
Pull the protective sheet in the direction of the arrow to remove.
8
Pull forward the left locking lever (5) of the fuser unit.
9
Hold the handle and place the new fuser unit into the machine.
10
Push back the left locking lever (5) of the fuser unit to lock.
