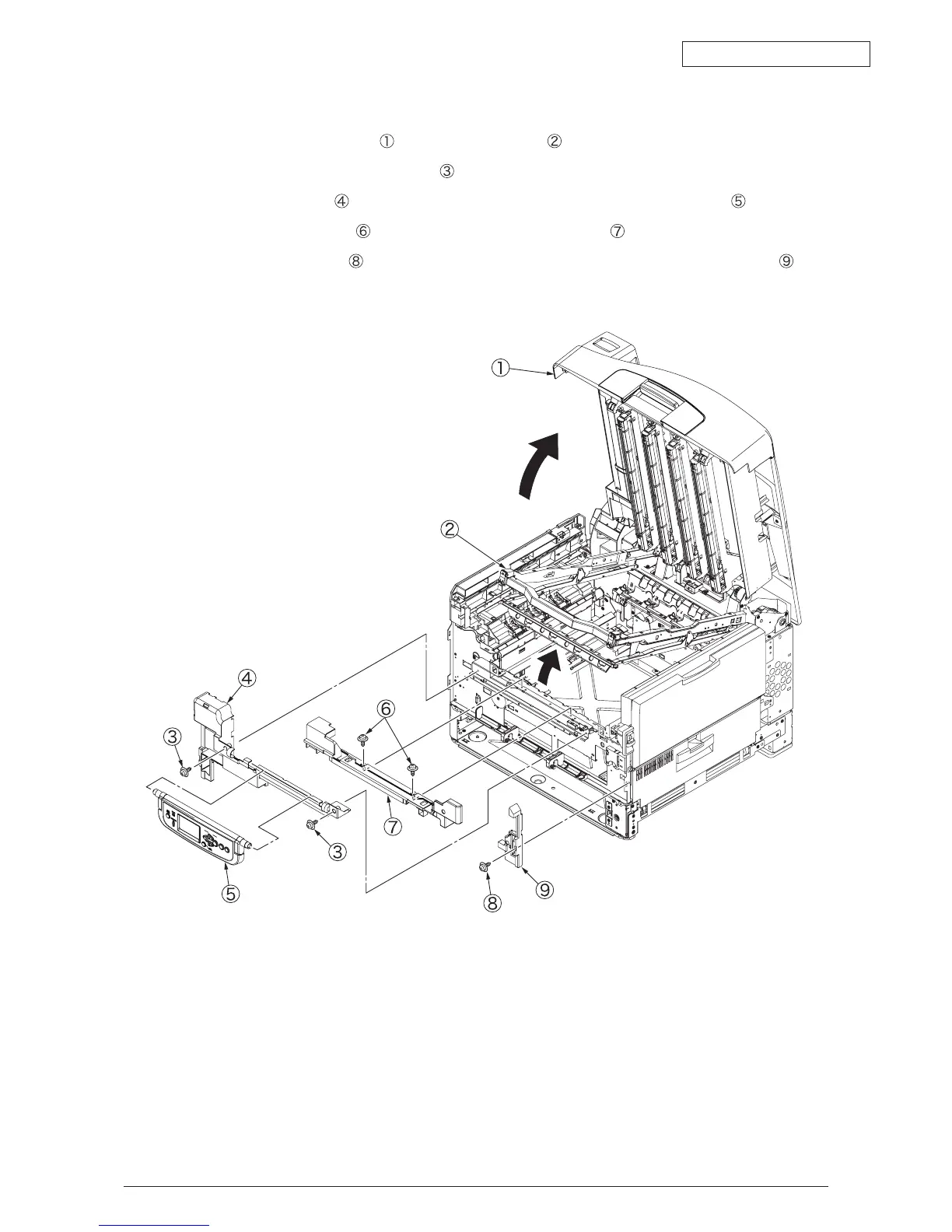

4.3.4 Cover Assy-OP Panel, Cover-Guard (R), Cover-Guard (Front) and Cover-Guard (L)
(1) Open Cover Assy-Top
, then lift Basket-Assy .
(2) Remove Cover Assy-OP Panel
from its supporting point.
(3) Unscrew screw
, remove the hinges, and then remove Cover-Guard (R) .
(4) Unscrew 2 screws
, then remove Cover-Guard (Front) .
(5) Unscrew 2 screw
, then remove the 2 hinges and remove the Cover-Guard (L) .
