Oki Data CONFIDENTIAL

44043511TH Rev.2

129 /

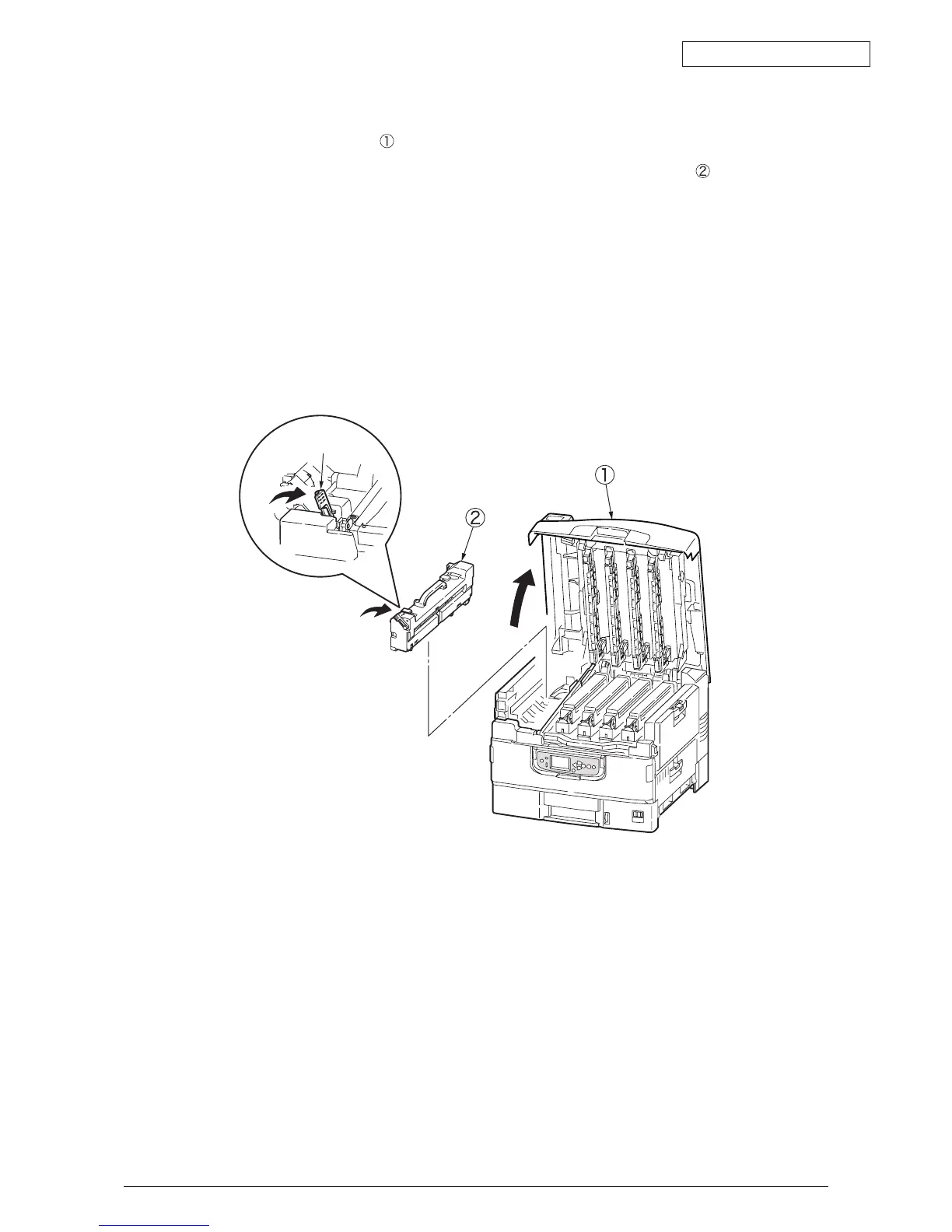

Lock lever

4.3.19 Fuser Unit-LBT

(1) Open Cover Assy-Top

(2) Lift the lock lever toward the arrow, then remove the Fuser Unit-LBT
