Oki Data CONFIDENTIAL
44043511TH Rev.2
125 /

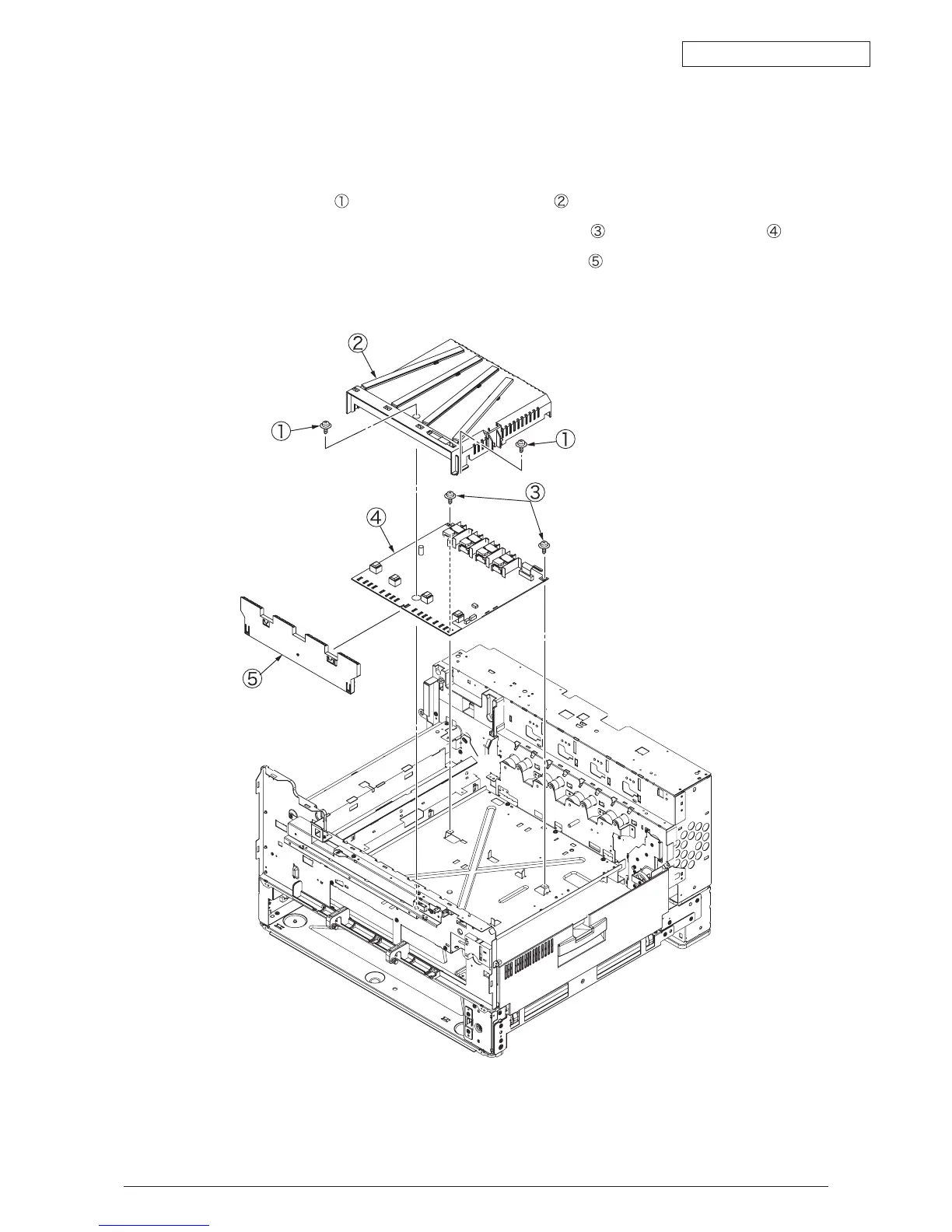

4.3.15 HV-Assy
(1) Open the Cover Assy-Top, then remove the Belt-Assy.
(2) Remove the Cover-Middle. (Refer to Section 4.3.14)
(2) Unscrew screw
, then remove Cover-HV-Assy .
(3) Remove the 2 connectors and unscrew the 2 screws
, then remove HV-Assy .
(4) Remove the 2 hinges, then remove Bracket-HV-Assy
.
To Next Page
