Oki Data CONFIDENTIAL

44043511TH Rev.2

131 /

Latch

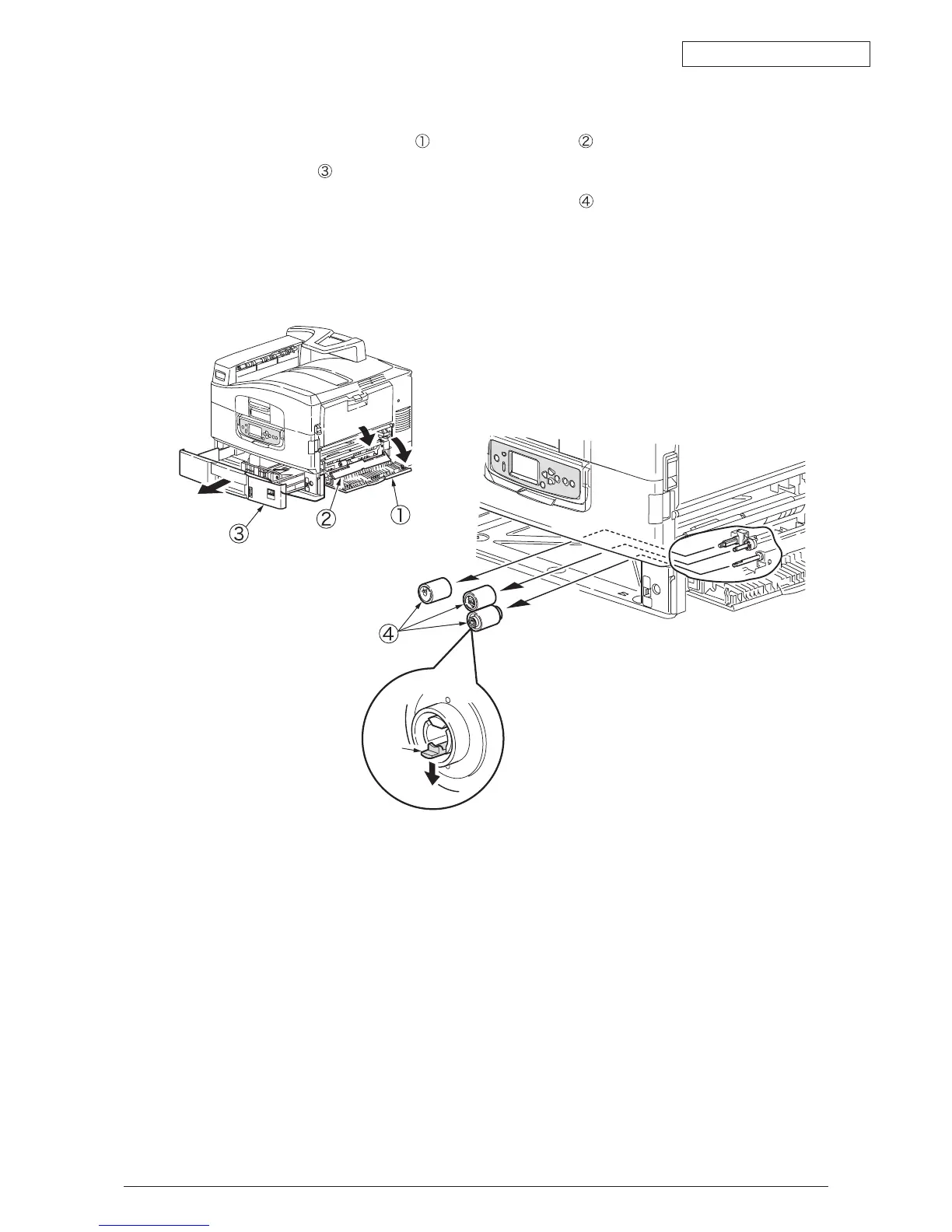

4.3.21 Paper Feed Roller

(1) Open the tray 1 side cover

and the paper guide .

(2) Pull out Tray

(3) Pull outward the latches of the 3 paper feed rollers

, and remove from the shaft.
