Oki Data CONFIDENTIAL

44043511TH Rev.2

121 /

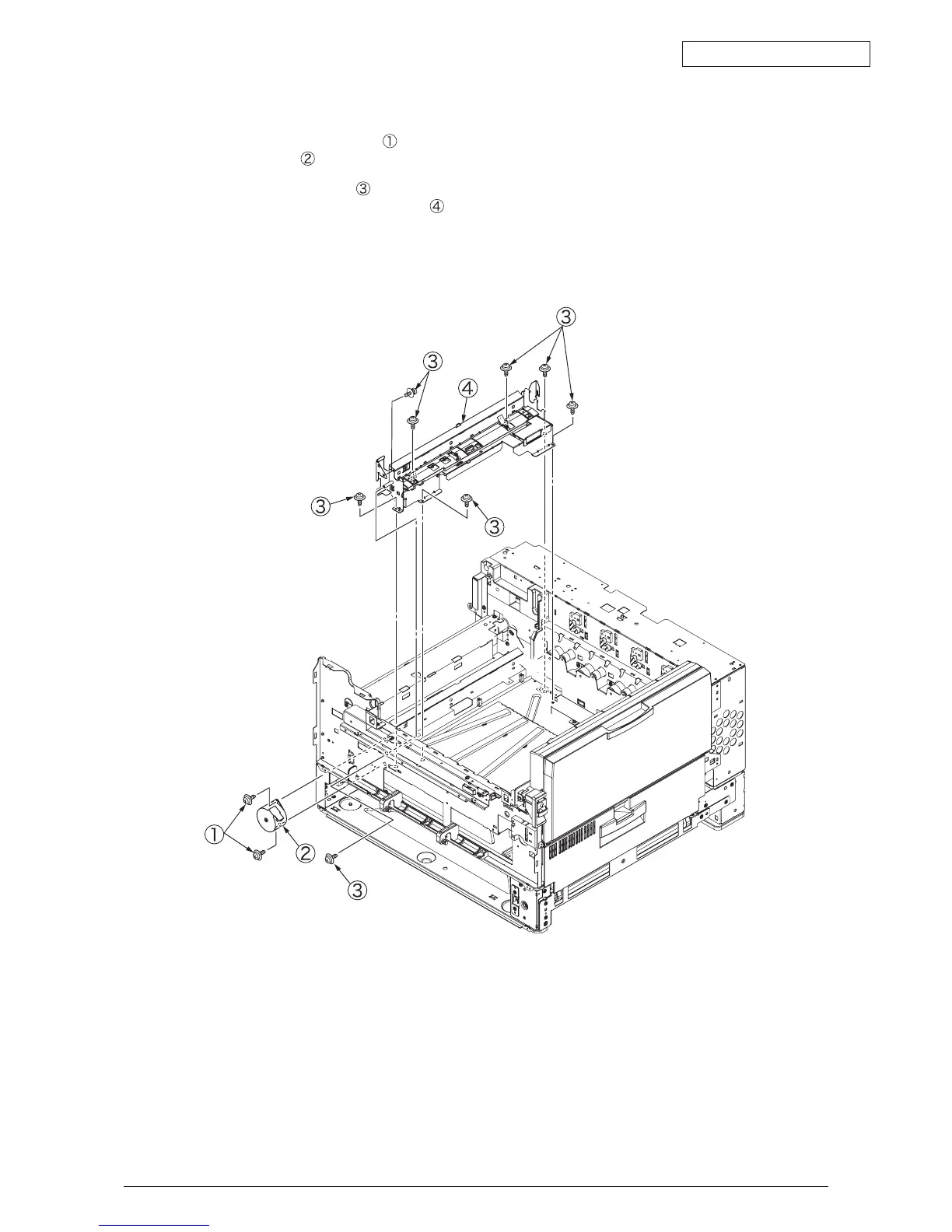

4.3.11 Motor-Pulse-Belt and Sensor-Resist-Assy

(1) Unscrew the 2 screws

, then remove the 4-pin connector and remove the Motor-

Pulse-Belt .

(2) Unscrew 7 screws

, then remove the 3 connectors (2-pin, 14-pin, 3-pin), and re-

move the Sensor-Resist-Assy .
