2.4.2 Paper Processing Mechanism

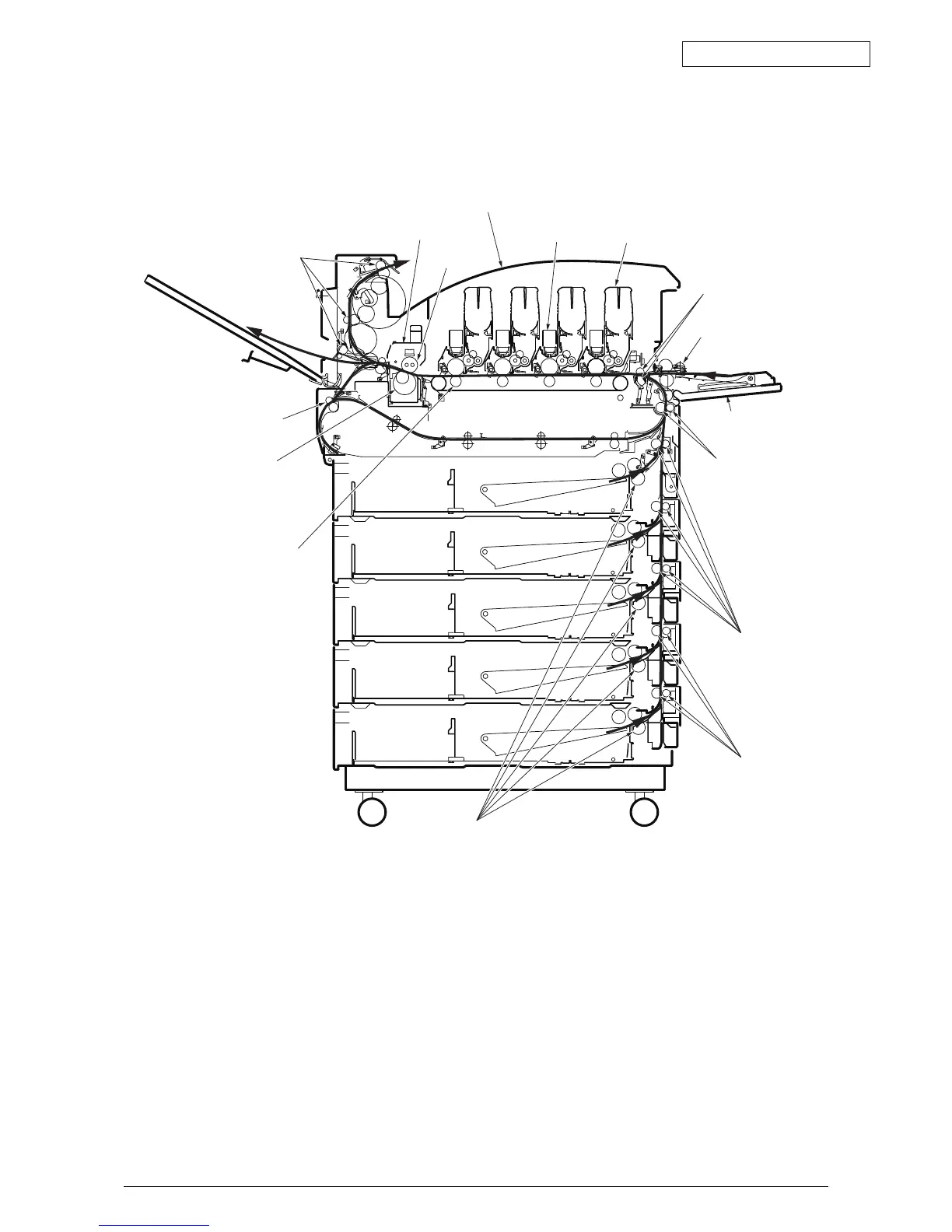

Figure 2-4 illustrates how the paper transfers through the C910.
Figure 2-4 Paper Path
Face down stacker
Discharge roller × 4
Backup roller
High-pressure
power supply
Heat roller
Discharge roller
Reverse Roller
Head × 4
Unit × 4
Retard Roller
Hopping roller
Cassette 1
Cassette 2
Cassette 3
Cassette 4
Cassette 5
Multipurpose tray
Regist roller
Assy (B)
Regist roller Assy (A)
Regist roller Assy (A)
Intermediate Feed
Roller Assy
Fuser assembly
Belt unit
