3.7 How to Connect

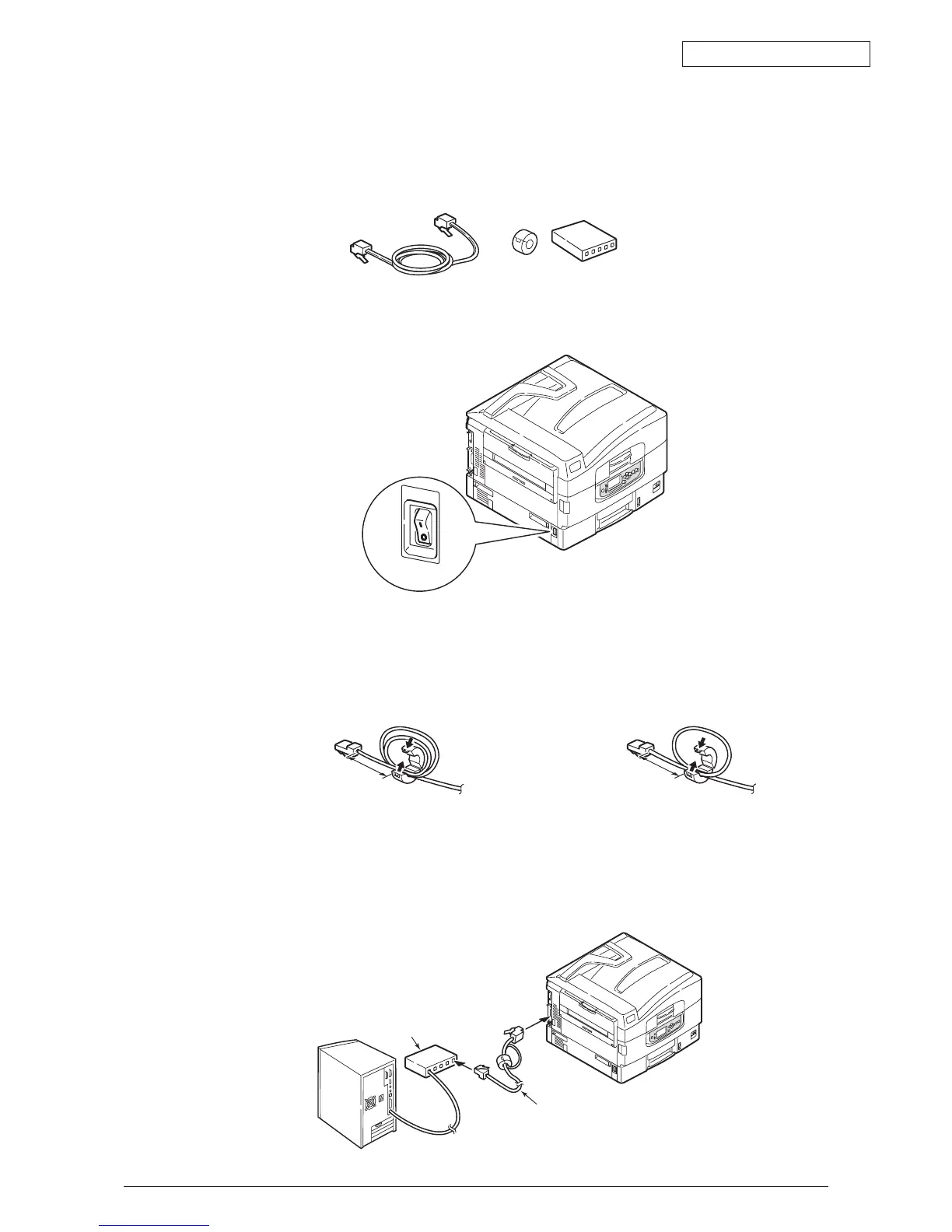

(1) Procedure for LAN cable
1. Prepare the LAN cable.
2. Turn off the printer and personal computer.
< straight cable > < Core > < Hub >
OFF
3. As seen in figure below, make a circle with a straight cable, which is about
3cm from the connector of printer.
4. Connect a straight cable into the network interface connector of the printer.
5. Connect a straight cable into the hub.
Hub
Straight cable
For printer
For hub
C930
3cm
C910
For printer
For hub
3cm
