Oki C930 - Page 231

To Next Page

To Previous Page

Oki Data CONFIDENTIAL

44043511TH Rev.2

230 /

Yellow

Orange

Black

Brown

Fuser Motor

Paper Supply

Motor

Offset Motor

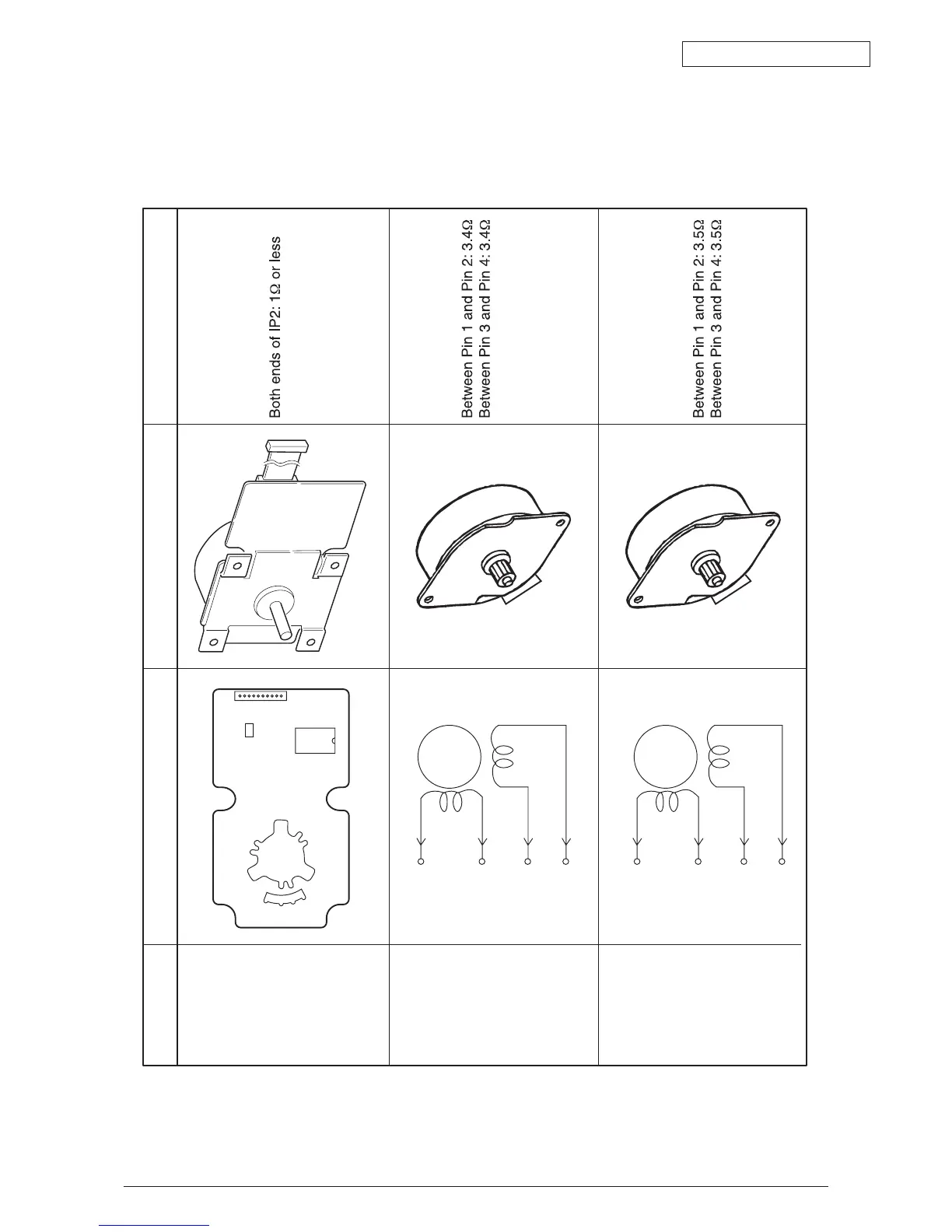

Unit Circuit Diagram and Configuration Parts Diagram Resistance Value

IC1

IP2
