- 20 -
Name and Function of Each Part
1
2
4
5
6
3
Number Name Function
18 [DATA IN MEMORY] / LINE lamp This green lamp lights in the status of the fax data reception
and fax communication. The equipment can be operated even
while these lamps are lit.
19 [FAX] button Use this button to access the Fax / Internet Fax function.
20 [FILING BOX] button Use this button to access stored image data.
21 [PRINT] button Use this button to access the printing functions such as private
printing, in this equipment.
22 Touch panel Use this panel for the various settings of the copying, scanning
and Fax functions. This also displays messages, such as when
paper runs out or paper misfeeds occur.

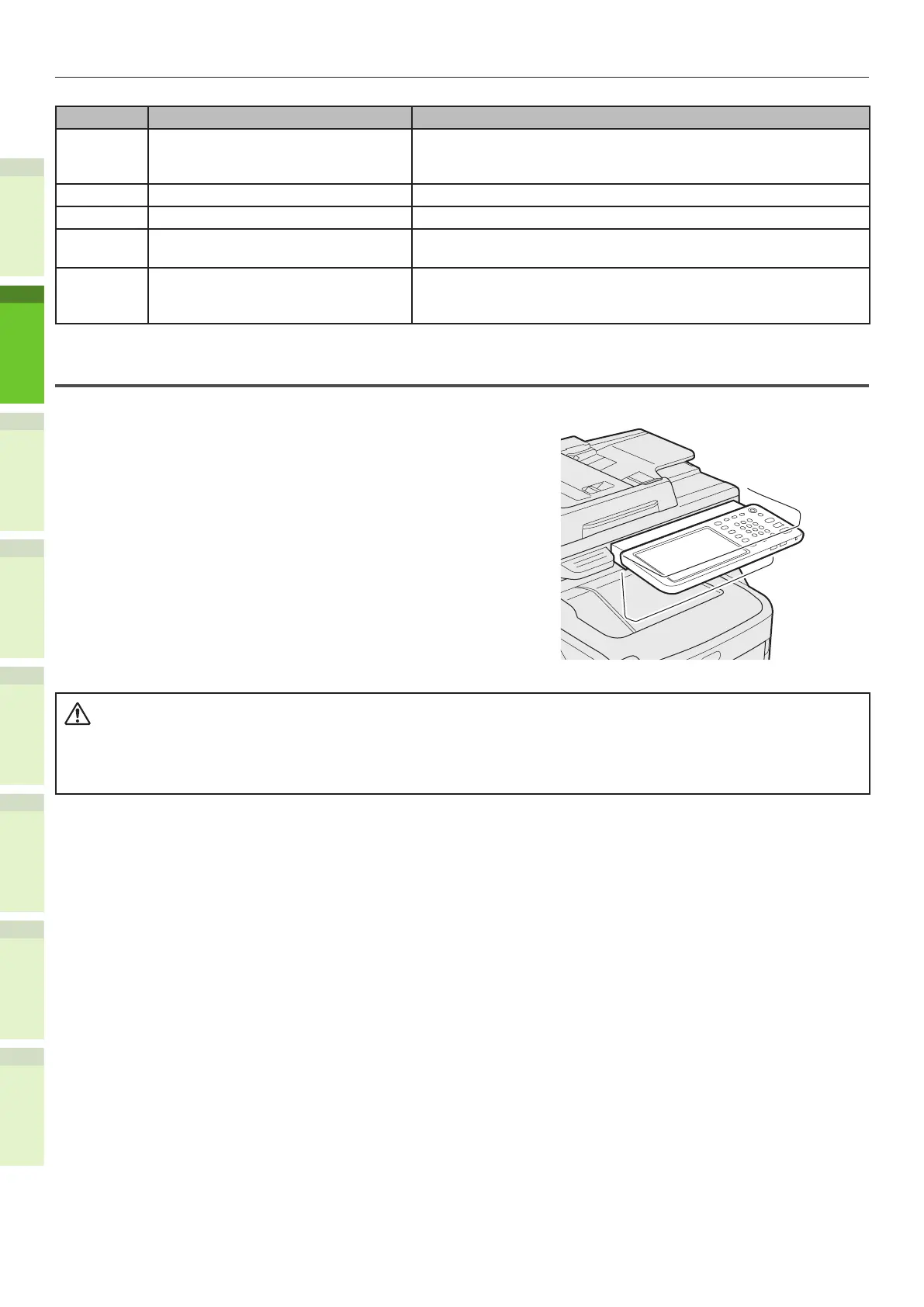

Adjusting the angle of the control panel
The angle of the control panel is adjustable at any angle from the horizontal position.
Without the Inner nisher : between 7 and 40 degrees
With the Inner nisher : Unadjustable. (Fixed)*
* Applying needless force to the control panel may damage the
device.
•
When changing the angle of the control panel, be careful not to catch your hands in the
gap between the equipment and the control panel.
This could injure you.
