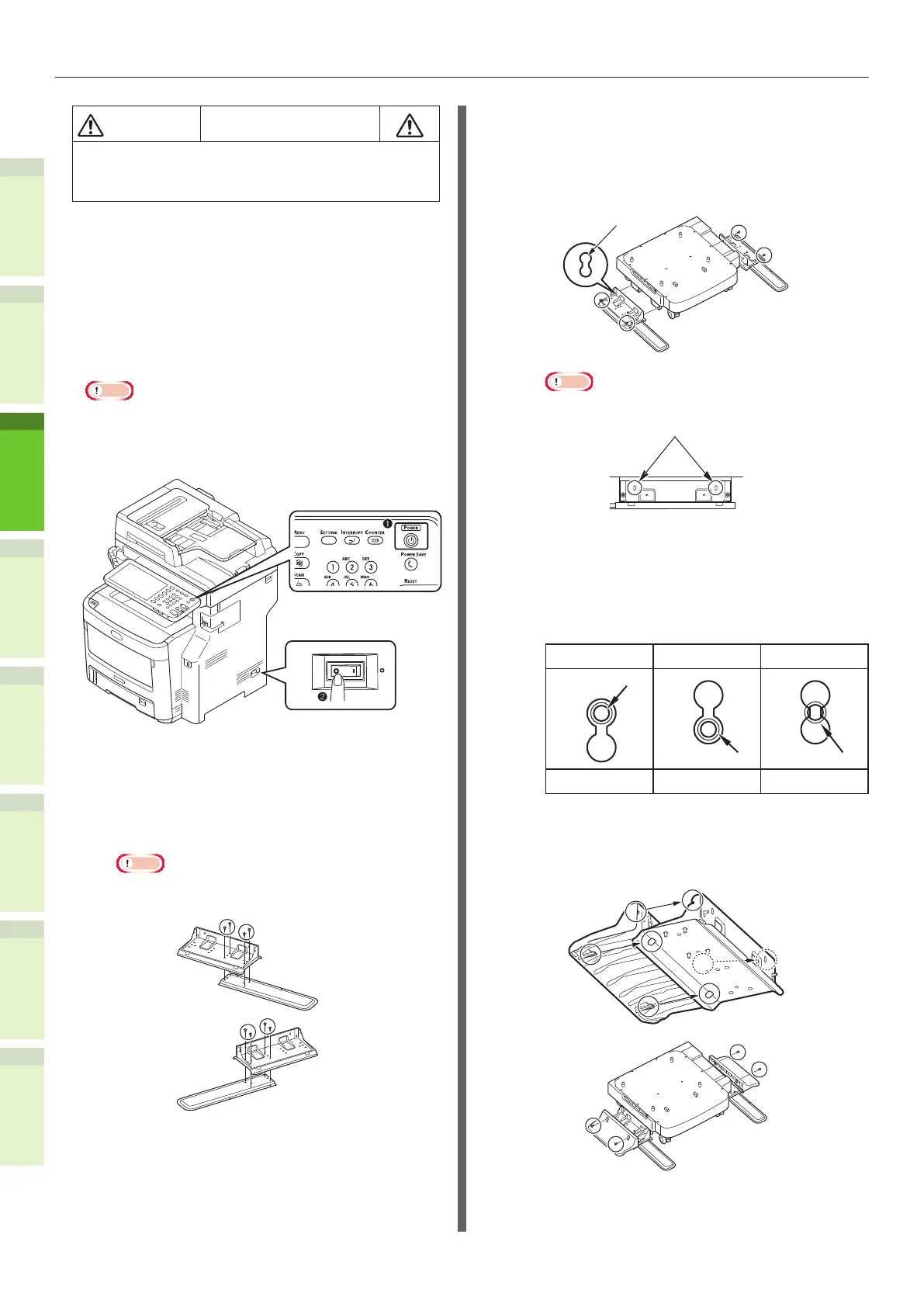

Installing Additional Tray Units
1
2
4
5
6
3
May cause injury!
•
To use the Additional Tray, always use the
Caster Unit, and make sure to attach the
anti-tip feet and joint parts.
1
Open the box and remove the
additional tray. Remove the
cushioning and protective materials.
2
Turn OFF the power to the machine,
and remove the power cord and
cables.
Note
•
If you leave the power ON, you may damage the
machine.
& For details about how to turn OFF the machine, see
“Turning Power OFF” (P.51)
3
Attach the caster unit.
(1) Attach the anti-tip feet (both
sides and front) with four
screws.
Note
•
Attachment directions are different for the left side
and the right side.
(2) Put the bottoms of the anti-tip
feet (both sides) on the oor,
align the sides to the cabinet
and tighten them with the two
screws each.
Screw Hole
Note
•
Do not tighten the upper screws.
Screw Hole
•
When you tighten the bottom screws, attach the
anti-tip foot to the location where a screw does
not incline.
*
You can attach the screws to Case1 and Case2.
As the screw inclines when you tighten the screw
in Case3, lift the anti-tip foot and attach the
screw to Case2.
Case 1 Case 2 Case 3
Screw Hole
Screw Hole
Screw Hole
OK OK NG
(3) Tighten the anti-tip foot covers
(both sides) and anti-tip feet
with two screws each.
To Next Page
