Oki Microline 3321 Maintenance Manual

42089201TH Rev.4 89 /
Oki Data CONFIDENTIAL

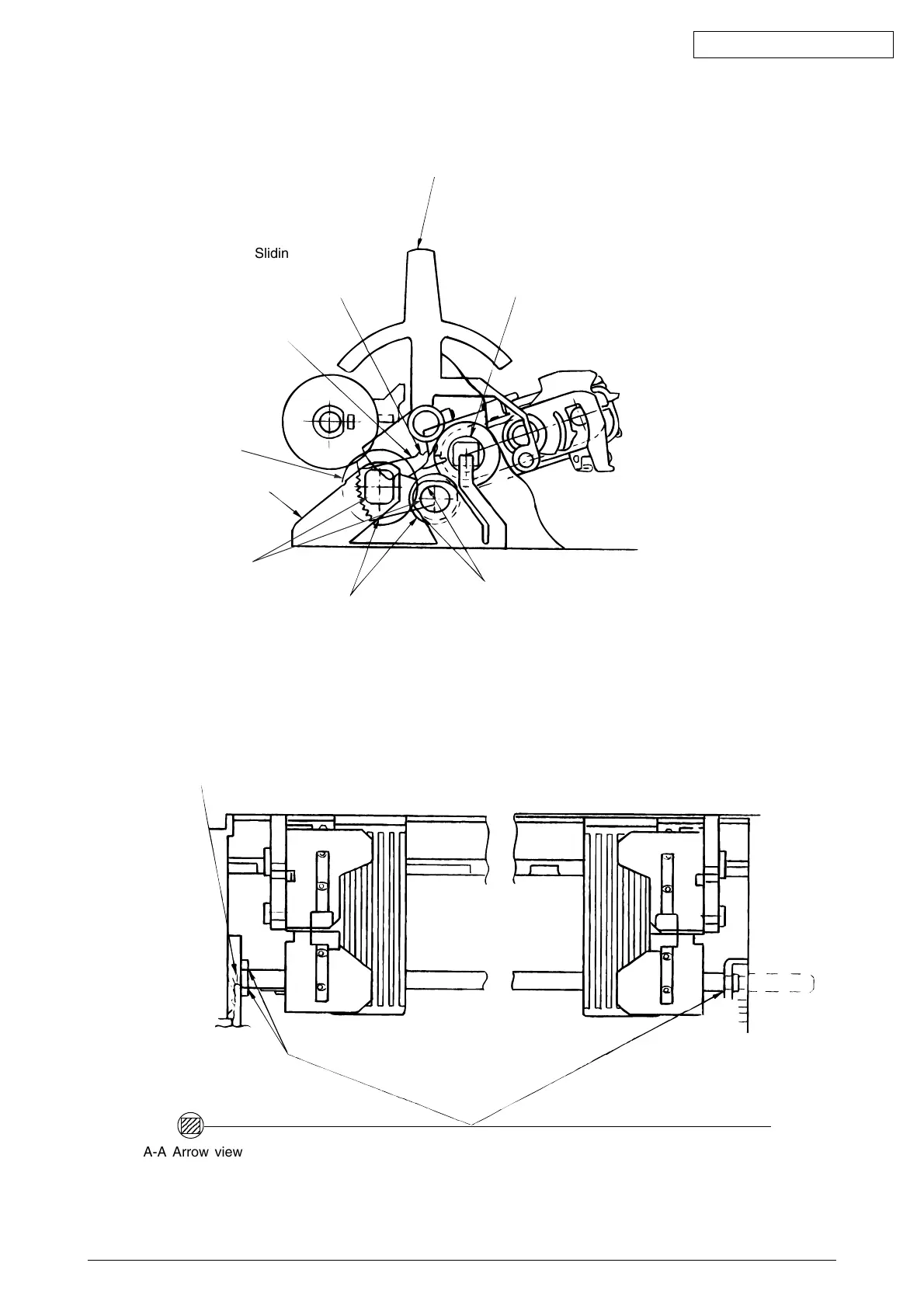

4. Tractor driving mechanism
5. Tractor drive shaft
Change lever
Change arm
Reset spring
Sliding surface of
reset spring and gear
EM-30L-A
Sliding surface of change
lever and gear
EM-30L-A
12345
1
234
5
1
234
5
12345
A-A Arrow view
Sliding surface of
change arm and
change lever
EM-30L-A
Tractor gear bearing portion
EM-30L-A
Idle gear teeth
EM-30L-A
Gear
bearing portion
EM-30L-A
Sliding surface of FG spring and drive shaft end
EM-30L-A
Drive shaft bearing portion
EM-30L-A
