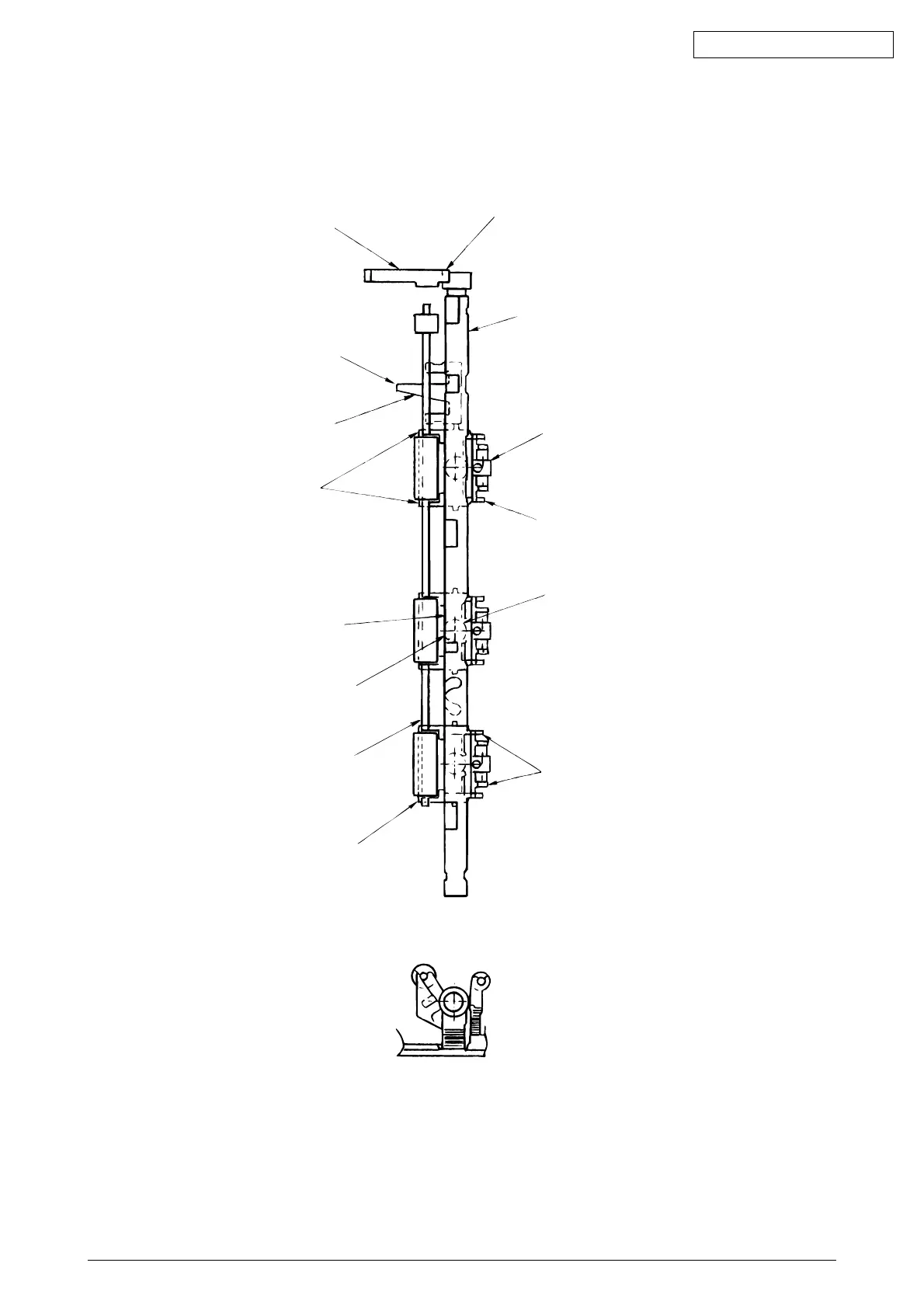

6. Pressure roller
Sliding portion of release
shaft and change arm
EM-30L-A
Change arm
Release shaft
Front pressure roller
Support spring
Controller holder
Sliding portion of rear roller holder and
release shaft cam surface (release
shaft plane portion)
EM-30L-A
Bearing portion of front roller
holder and pressure roller
EM-30L-B
Shaft
Rear roller holder
Release shaft protruding
portion - 2 portions
EM-30L-A
Contact portion of rear
holder and shaft
EM-30L-A
Contact portion of support
spring and shaft
EM-30L-A
Sliding portion of
release shaft and rear
roller holder
EM-30L-A
