Chapter 3 Mechanical Installation
MX 32 Controller
Location
The MX 32 is intended for indoor use only and shall be installed in premises
without explosive atmospheres, away from direct exposure to sunlight, and
protected from humidity, dust, and temperature variations. It shall preferably
be located in a monitored environment (for instance: guardhouse, control
room, or instrument room, etc.).
Attachment of the wall enclosure
Access to the controller must be ensured in order to facilitate adjustments,
monitoring, and cabling. A space of 400 mm is necessary in front of the MX 32
for opening the door. Use 3 fixing screws 4x25 mm for fixing the case support.

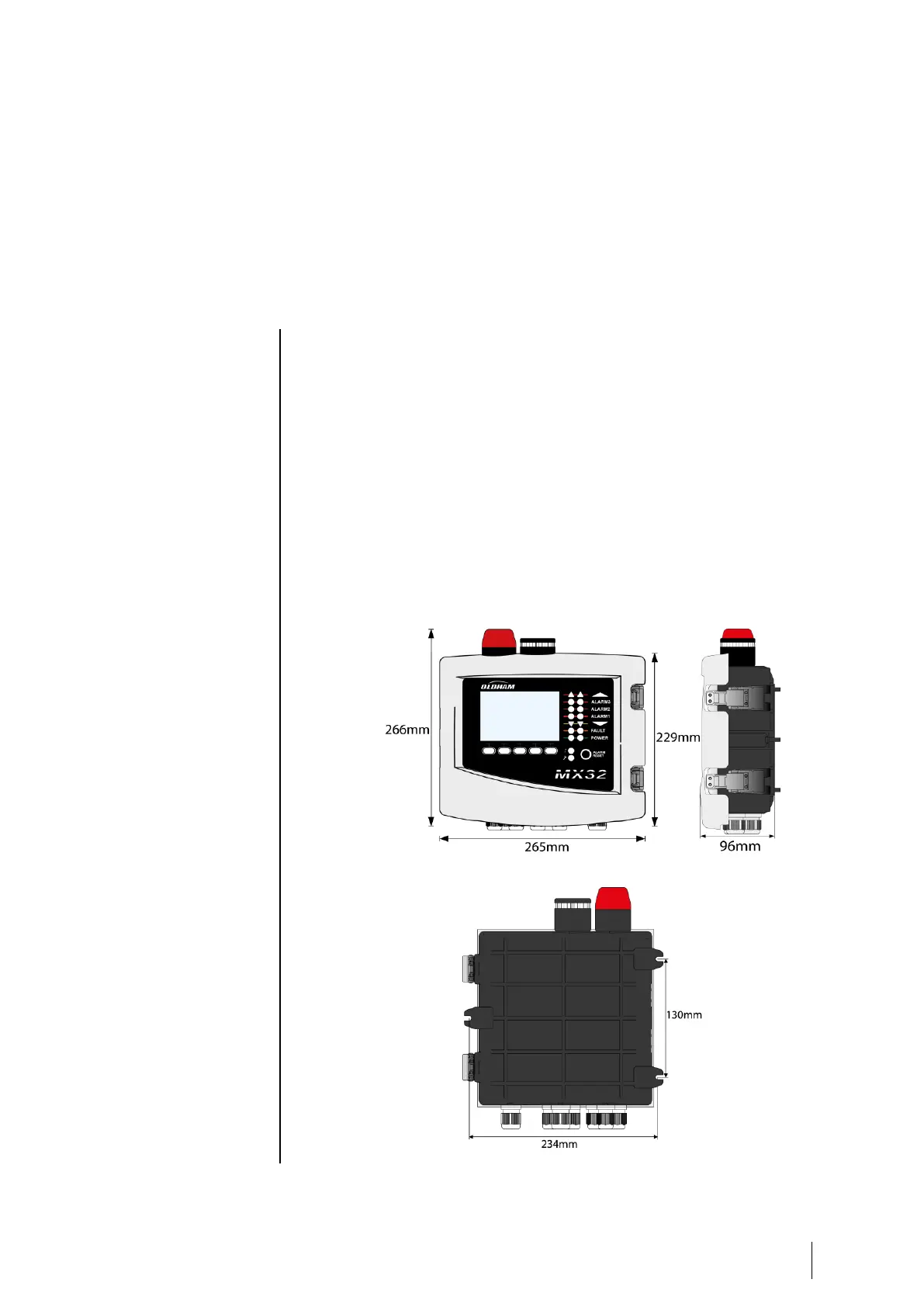

Figure 4: Dimensions
Figure 5: Fixing the MX 32
