Oldham MX 32 User Manual

22
MX 32v2
User Manual
16-Logic Input Module
Function
This digital module allows the
monitoring of 1 to 16 dry logic inputs.
The controller can manage up to 16
logic inputs limited to 2 modules.

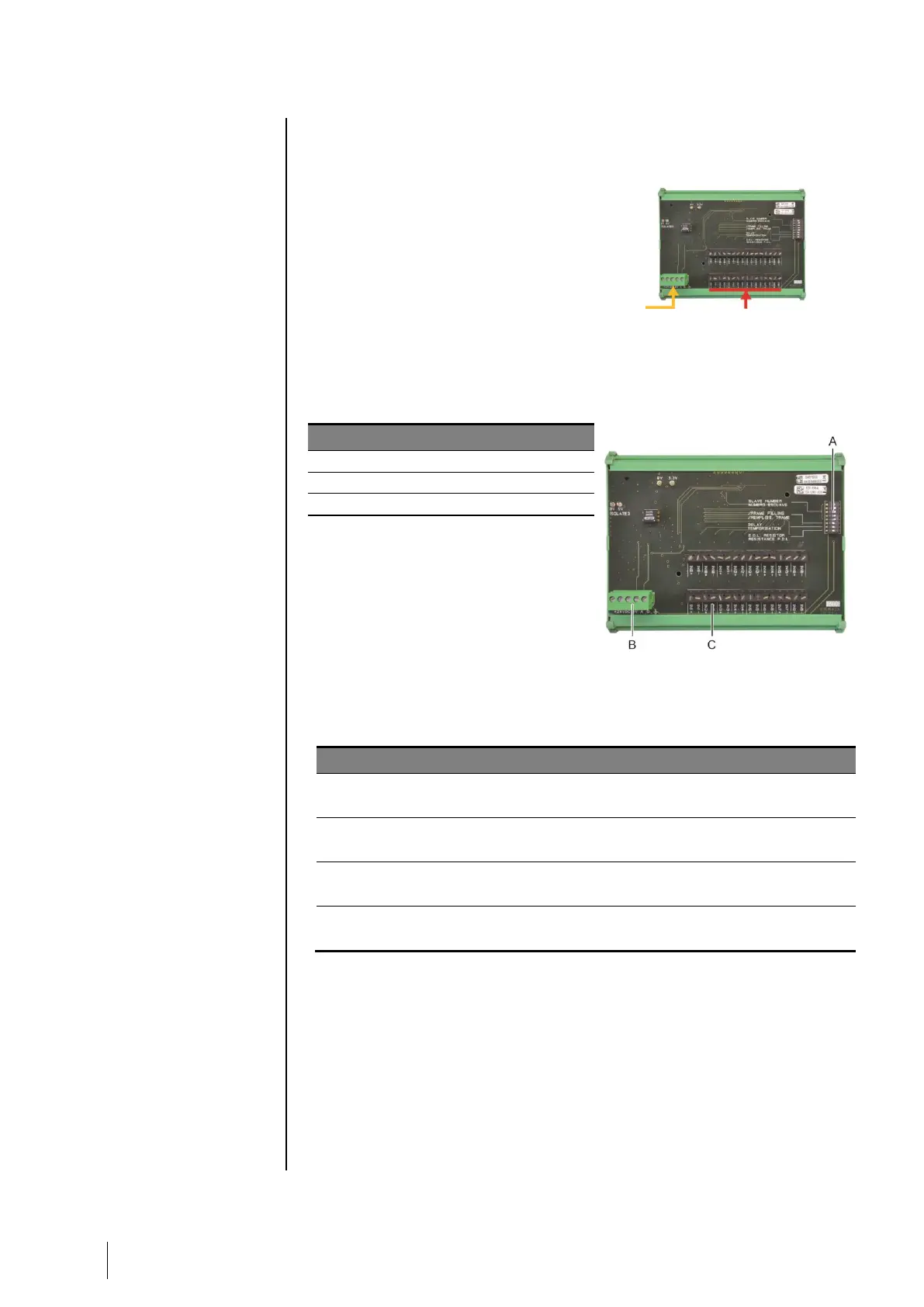

Figure 16: 16 Logic Input Module
Introduction
Ref.
Description
A.
DIP switches for module configuration
B.
Power supply and RS485 network
C.
Logic inputs 1 to 16
Figure 17: 16 Logic Input Module
A – DIP switches
These DIP switches are set according to the following table:
Term
Symbol
Slave number
Numéro esclave
See details in the paragraph Module Address on page 18
Frame filling
Remplissage de trame
Factory settings. Do not modify
Delay
Temporisation
Factory settings. Do not modify
E.O.L Resistor
Résistance F.D.L.
See details in paragraph End of line Resistor, on page 19
Table 7: Configuration DIP switches of the Logic Input Module
16 logic inputs
4 wire serial cable
