10 MX43
User manual
The MX43 Central Measurement Unit
Versions
The MX43 central measurement unit is available in 3 versions:
■ Wall version 4 lines.
■ Wall version 8 lines.
■ Rack version 8 lines.
0012

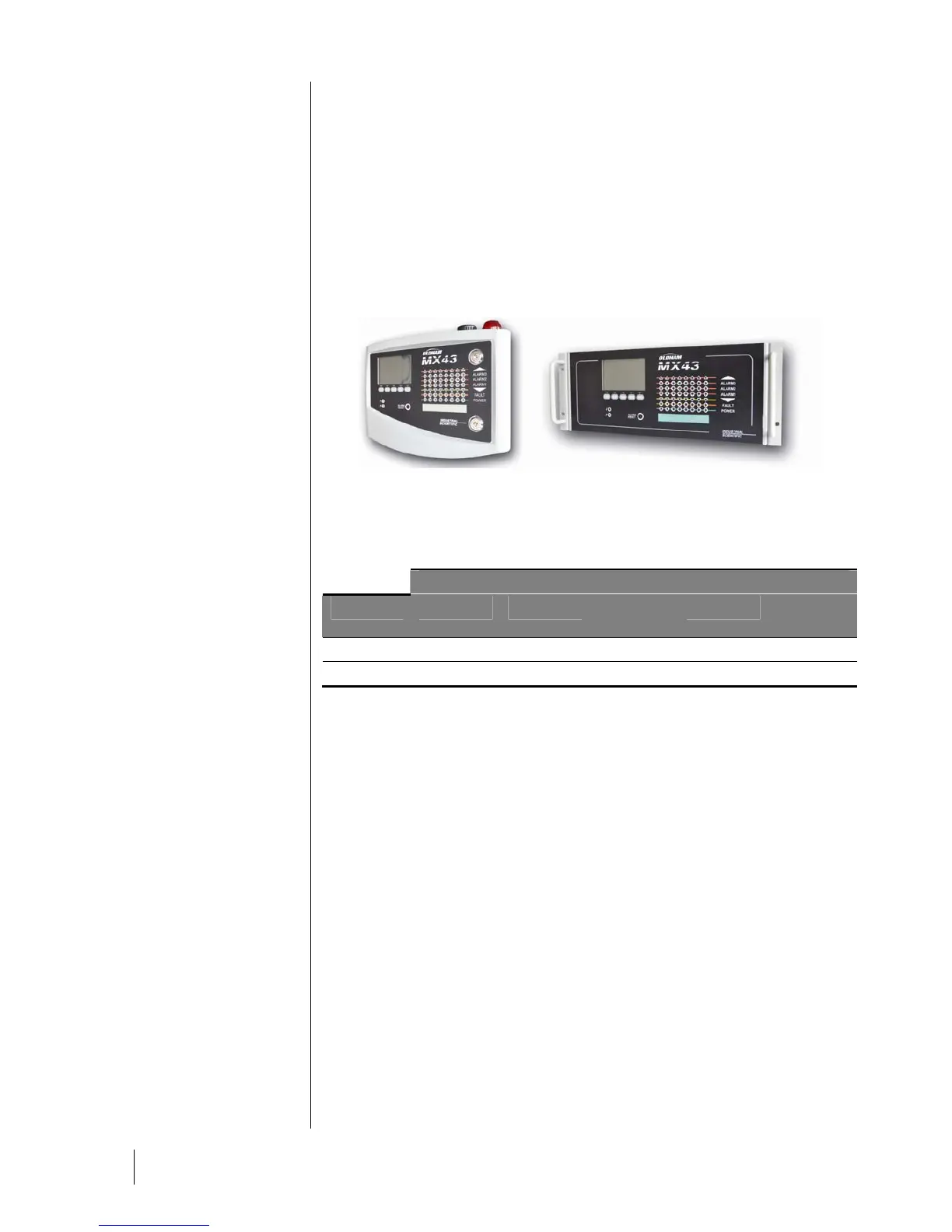

Figure 3: Wall mounted version MX43 (left illustration) or Rack mounted version (right
illustration).
The following table details the possibilities of configuration, depending on the
type of unit. On each line, it is possible to connect a 4-20mA analog detector
or one, or several, digitally addressable modules.
Maximum number of
Versions
Modules (1)
Detectors
External
relays
Logic inputs
Analog
ouputs
4 lines
16 16 8 16 16
8 lines
32 32 24 32 32
(1) Gas detectors, 4 or 8-analog output modules, and 16-logic input modules.
Table 1: Summary of the maximum configurations as per the central unit.
The COM43 Application
This is intended for setting the MX43 parameters from a PC in the Windows®
environment. The operation and use of this application is the subject of a
specific training course.
