Oldham MX43 User Manual

7 – Menus 43
Chapter 7 І Menus
General Menu Tree

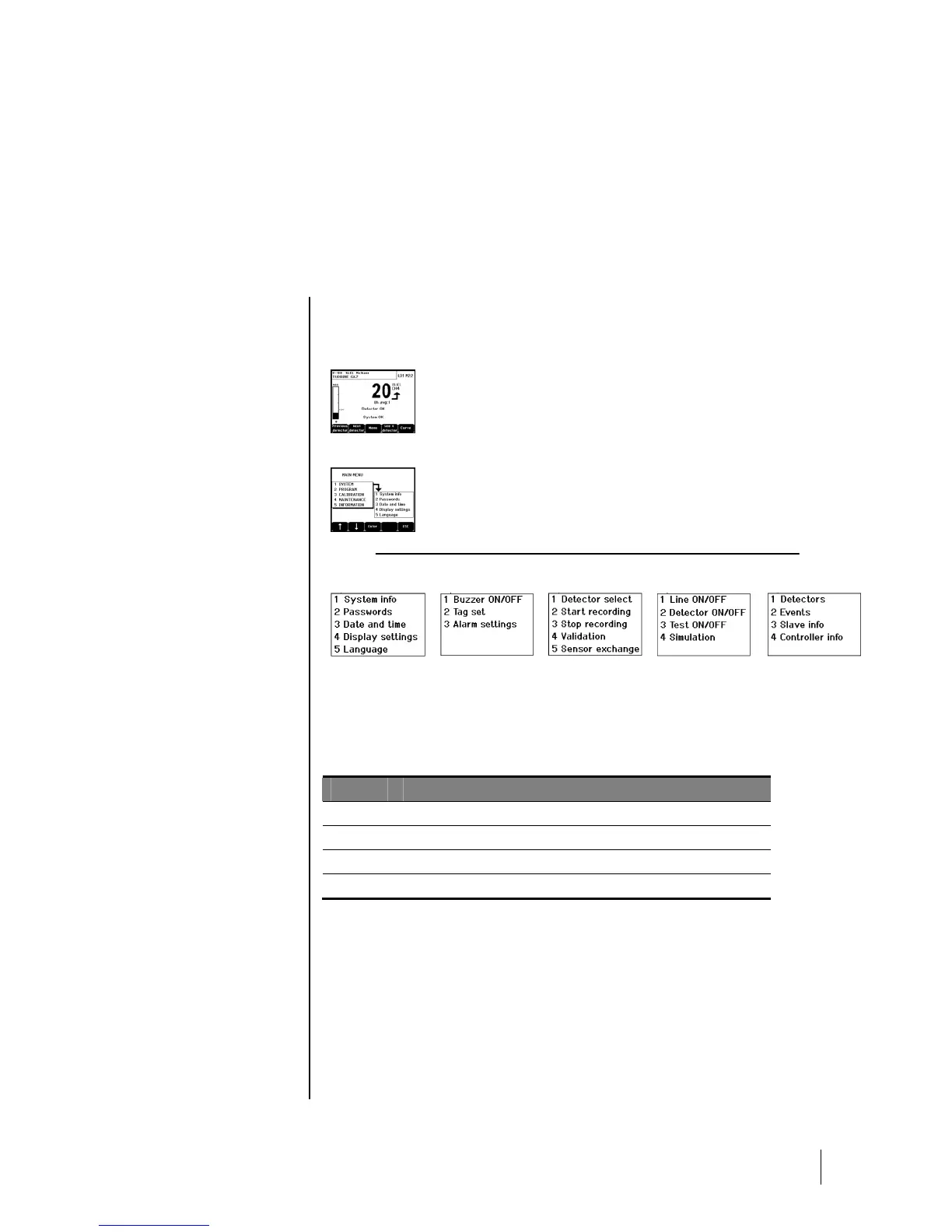

The following figure shows the general tree of the group of menus.
See page 44
↓
See page 46
↓ ↓ ↓ ↓ ↓
1 SYSTEM 2 PROGRAM 3 CALIBRATION 4 MAINTENANCE 5 INFORMATION
See page 46 See page 47 See page 48 See page 50 See page 50
ECR_90_91_92_93_94
Figure 38: General menu tree of the MX43.
Navigation Key Functions
Key Function

Vertical displacement in the selected menu block.

Horizontal displacement between two menu blocks.
Enter Validation of the selected line.
Escape Return to previous screen.
Table 11: Function of the navigation keys.
