Oldham MX43 User Manual

3 - Mechanical Installation 11
Chapter 3 І Mechanical Installation
This chapter details the mechanical installation of MX 43 and the digital
modules.
MX 43 Central Measurement Unit
Location
The MX43 shall be installed in premises without explosive atmospheres, away
from direct sunlight exposure, and protected from humidity, dust, and
temperature variations. It shall preferably be located in a place under
supervision (guardhouse, control room, or instrument room, for example).
Attachment of the wall enclosure
Access to the central unit must be ensured in the front in order to facilitate
adjustments, monitoring, and cabling. A space of 400 mm is necessary in front
of the MX43 for opening the door.
(*) rear fixing legs included.
044

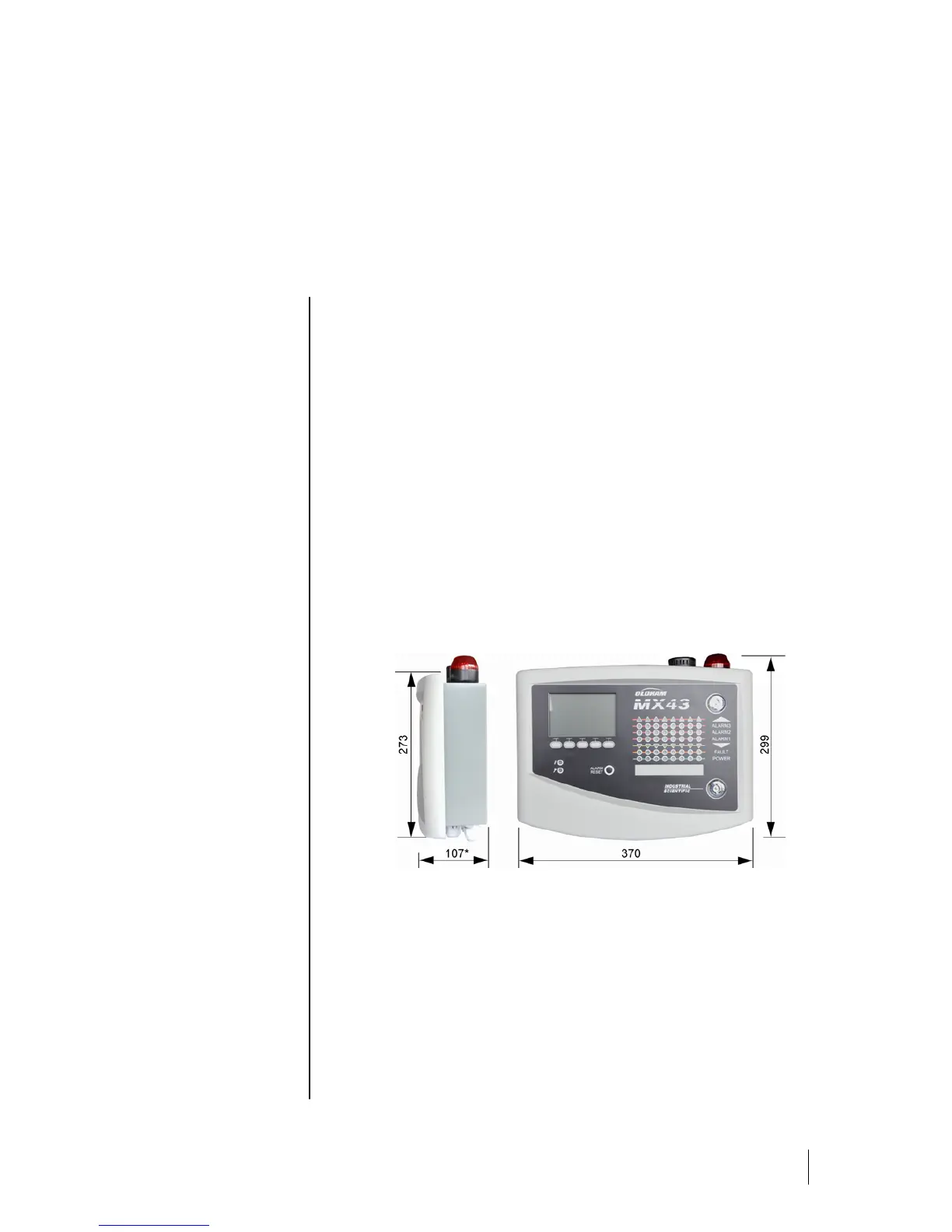

Figure 4: Size of the wall version.
