Oldham MX43 User Manual

5 – Digital Modules 25

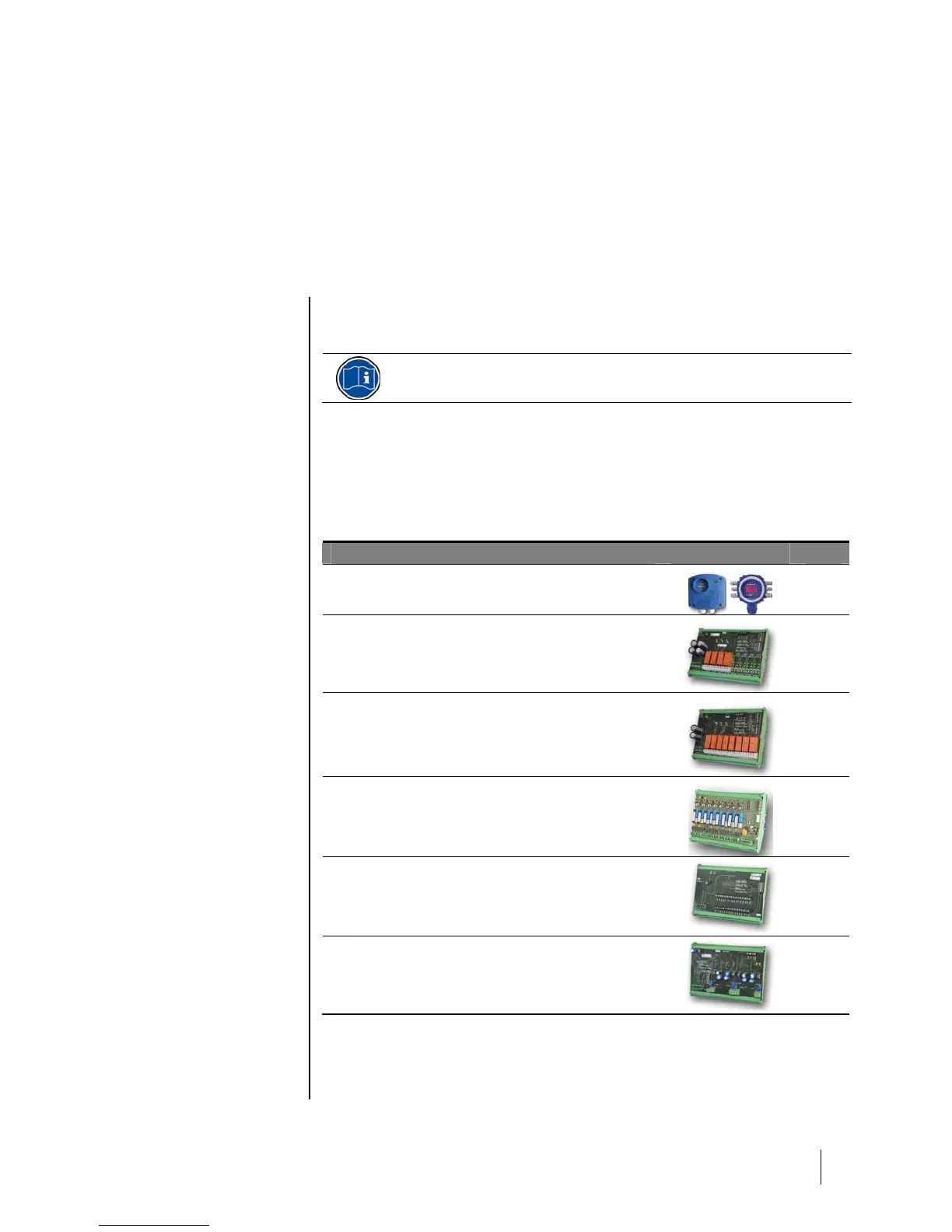

Chapter 5 І Digital Modules
This chapter presents the digital modules that may be installed on the lines of
MX43.
The details of module connection are given on page 26.
Digital modules are configured via the COM43 application.
Addressable Digital Modules
These modules are connected on each of the available 4 or 8 lines of the MX43,
up to a limit of 32 modules on a version of 8-lines or 16 modules on a 4-line
version. The following table regroups the available modules:
Type of module Illustration Page
Digital gas detector (OLCT10N, OLCT80…).
048A-B
-
Output module, 4 relays with 2 additional logic inputs
904
28
Output module, 8 relays with 2 additional logic inputs
906
28
Module with 8 analog inputs
050
30
Module with 16 analog inputs
910
29
Module with 4 analog 4-20mA outputs and 2 additional logic
inputs
912
31
Table 4: Addressable digital modules.
